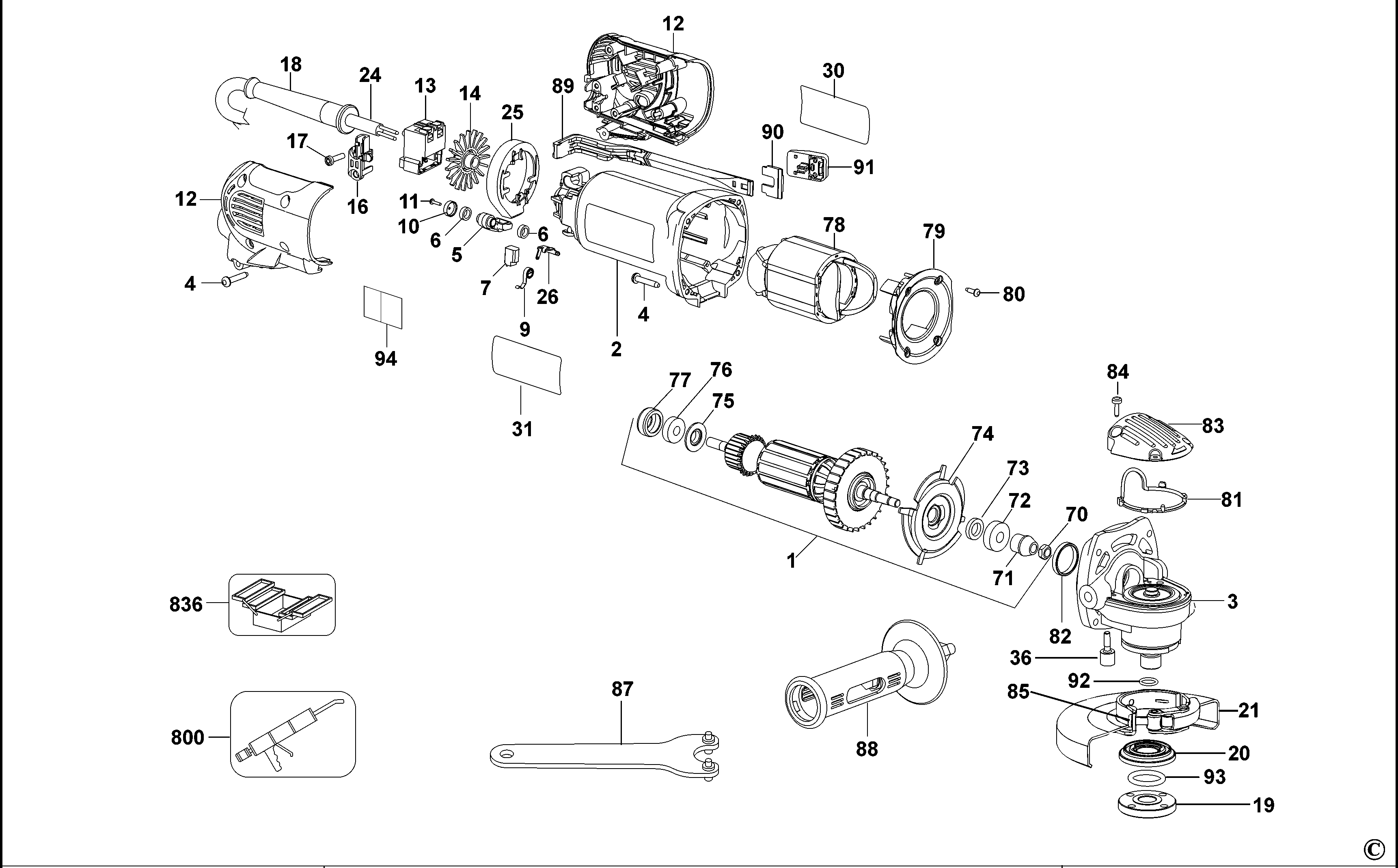

D28141 SMALL ANGLE GRINDER Type 4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N398001 | 1 | ARMATURE SA | 230V | A9 | ||
| 2 | 626992-02 | 1 | FIELDCASE | HP, SLIDER | A9 | ||
| 3 | N086309 | 1 | GEAR CASE SA | A9 | |||
| 4 | 330065-31 | 9 | PLASTIC SCREW | A9 | |||
| 5 | 648743-00 | 2 | ARM | BRUSH | A9 | ||
| 6 | 623592-00 | 4 | FELT SEAL | A9 | |||
| 7 | 1003857-00 | 1 | BRUSH PAIR 230V | 640491-03 x 2 | A9 | ||
| 9 | 636760-00 | 2 | BRUSH SPRING | A9 | |||
| 10 | 623591-00 | 2 | BRUSH CAP | A9 | |||
| 11 | 593685-00 | 2 | SCREW | M1.8x8 THD FRMG | A9 | ||
| 12 | N174343 | 1 | HANDLE SA | A9 | |||
| 13 | 945614-00 | 1 | SWITCH | A9 | |||
| 14 | N055787 | 1 | SEPARATOR | Particle | A9 | ||
| 16 | 639693-00 | 1 | CORD CLAMP | A9 | |||
| 17 | 330019-03 | 2 | SCREW | A9 | |||
| 18 | 641081-00 | 1 | CORD PROTECTOR | A9 | |||
| 19 | 622613-02 | 1 | OUTER FLANGE | M14 | A9 | ||
| 20 | 633257-00SV | 1 | INNER FLANGE SA | A9 | |||
| 21 | N042109 | 1 | GUARD SA | 150MM | A9 | ||
| 24 | 330120-66 | 1 | CORDSET | A9 | |||
| 25 | 627283-00 | 1 | BAFFLE | A9 | |||
| 26 | 623593-00 | 2 | TERMINAL | A9 | |||
| 30 | 628885-00 | 1 | BRAND LABEL | A9 | |||
| 31 | N483596 | 1 | RATING LABEL | A9 | |||
| 36 | N033051 | 1 | SCREW | A9 | |||
| 70 | 604484-00 | 1 | NUT | A9 | |||
| 71 | 629797-00 | 1 | PINION | 9 TOOTH | A9 | ||
| 72 | 605040-67 | 1 | BEARING | A9 | |||
| 73 | 623617-00 | 1 | FELT SEAL | A9 | |||
| 74 | N422242 | 1 | RETAINER | A9 | |||
| 75 | 623613-00 | 1 | WASHER | A9 | |||
| 76 | 605040-02 | 1 | BEARING | A9 | |||
| 77 | 641823-00 | 1 | SLEEVE | A9 | |||
| 78 | 627125-04 | 1 | FIELD 230V | 230V | A9 | ||
| 79 | 623572-00 | 1 | BAFFLE FAN | A9 | |||
| 80 | 330065-25 | 4 | SCREW | A9 | |||
| 81 | 632513-00 | 1 | GASKET | A9 | |||
| 82 | 611492-00 | 1 | SLEEVE | A9 | |||
| 83 | 627313-00 | 1 | GEARCASE COVER | A9 | |||
| 84 | 385676-01 | 4 | SCREW | A9 | |||
| 85 | 631609-03 | 1 | SCREW | A9 | |||
| 87 | N079326 | 1 | WRENCH PIN | SPANNER | A9 | ||
| 88 | 614796-00 | 1 | SIDE HANDLE | ANTI-VIB. | A9 | ||
| 89 | 627006-00 | 1 | LINK | A9 | |||
| 90 | N030583 | 1 | BAR LOCKING | A9 | |||
| 91 | N029232 | 1 | BUTTON START | A9 | |||
| 92 | 633045-00 | 1 | O RING | 9.19x2.62 | A9 | ||
| 93 | 633043-00 | 1 | O RING | 20.5x2.4 | A9 | ||
| 94 | 640416-00 | 1 | WARNING LABEL | A9 | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | A9 | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | A9 | ||
| 836 | 233804-36 | 1 | DRIVER | T6 | A9 |
