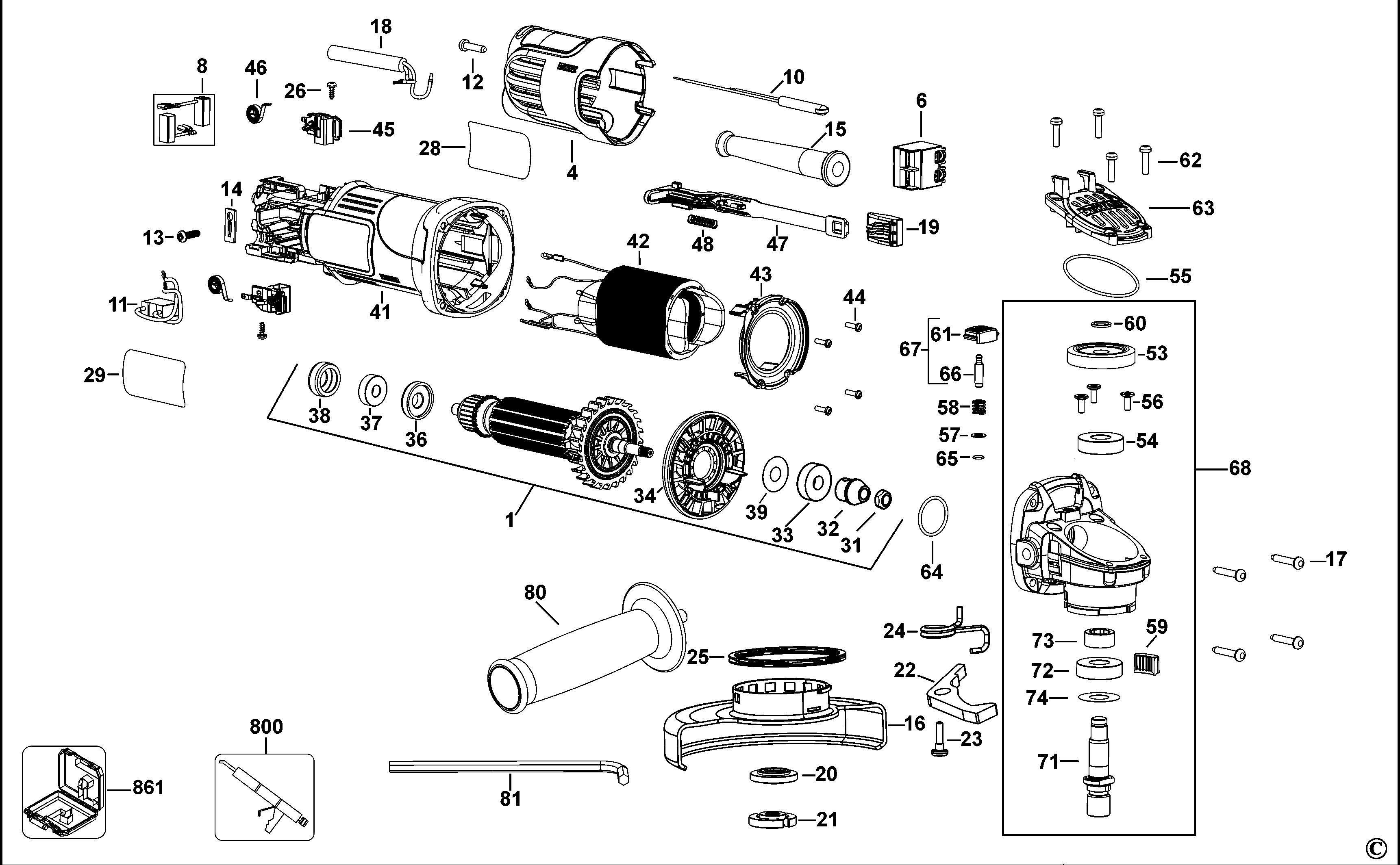

DWE4150 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N389433 | 1 | ARMATURE 230V | RU | |||
| 4 | N115132 | 1 | HOUSING | RU | |||
| 6 | N167538 | 1 | SWITCH | RU | |||
| 8 | N257700 | 1 | BRUSH PAIR 230V | RU | |||
| 10 | N125668 | 1 | ELECTRONIC | RU | |||
| 11 | N120979 | 1 | CAPACITOR | RU | |||
| 12 | N017839 | 1 | SCREW | RU | |||
| 13 | 562097-00 | 1 | SCREW | RU | |||
| 14 | 619328-00 | 1 | CORD CLAMP | RU | |||
| 15 | N447519 | 1 | CORD PROTECTOR | RU | |||
| 16 | N143896 | 1 | GUARD | 115MM KEYLESS | RU | ||
| 17 | 330065-31 | 4 | PLASTIC SCREW | RU | |||
| 18 | N133090 | 1 | CORDSET (EURO) | QS | RU | ||
| 19 | N097844 | 1 | BUTTON | RU | |||
| 20 | 391969-00 | 1 | INNER FLANGE | RU | |||
| 21 | N134466 | 1 | OUTER FLANGE | RU | |||
| 22 | N136731 | 1 | LEVER | RU | |||
| 23 | N137733 | 1 | SCREW | RU | |||
| 24 | N105579 | 1 | SPRING | RU | |||
| 25 | N135116 | 1 | WASHER SPRING | RU | |||
| 26 | 593478-00 | 2 | SCREW | M3 X 8 | RU | ||
| 28 | N149175 | 1 | BRAND LABEL | RU | |||
| 29 | N157439 | 1 | RATING PLATE | QS | BBRU | RU | |
| 29 | N157439 | 1 | RATING PLATE | QS | LIRU | RU | |
| 29 | N157439 | 1 | RATING PLATE | QS | AARU | RU | |
| 29 | N157439 | 1 | RATING PLATE | QS | LAKA | RU | |
| 29 | N157439 | 1 | RATING PLATE | QS | PFRU | RU | |
| 31 | 604484-00 | 1 | NUT | RU | |||
| 32 | N153125 | 1 | PINION | RU | |||
| 33 | N175104 | 1 | BEARING | RU | |||
| 34 | N132042 | 1 | BAFFLE | RU | |||
| 36 | N101228 | 1 | WASHER | RU | |||
| 37 | N130916 | 1 | BEARING | RU | |||
| 38 | 641823-00 | 1 | SLEEVE | RU | |||
| 39 | N213812 | 1 | WASHER | RU | |||
| 41 | N115131 | 1 | FIELDCASE | RU | |||
| 42 | N232482 | 1 | FIELD 230V | RU | |||
| 43 | N132864 | 1 | BAFFLE | RU | |||
| 44 | 330065-25 | 4 | SCREW | RU | |||
| 45 | N097702 | 2 | BRUSHBOX | RU | |||
| 46 | N097703 | 2 | SPRING | RU | |||
| 47 | N117648 | 1 | LINK | RU | |||
| 48 | N093410 | 1 | SPRING | RU | |||
| 53 | N153126 | 1 | GEAR | RU | |||
| 54 | N150961 | 1 | BEARING | RU | |||
| 55 | N094024 | 1 | O RING | RU | |||
| 56 | N118088 | 3 | SCREW | RU | |||
| 57 | N447838 | 1 | WASHER | RU | |||
| 58 | N092954 | 1 | SPRING | RU | |||
| 59 | N126708 | 1 | INSERT | RU | |||
| 60 | 444793-00 | 1 | CIRCLIP | RU | |||
| 61 | N126105 | 1 | BUTTON | RU | |||
| 62 | N122904 | 4 | SCREW | RU | |||
| 63 | N116180 | 1 | GEARCASE COVER | RU | |||
| 64 | N119639 | 1 | O RING | RU | |||
| 65 | N094012 | 1 | O RING | RU | |||
| 66 | N114592 | 1 | SPINDLE LOCK | RU | |||
| 67 | N181767 | 1 | SPINDLE LOCK | RU | |||
| 68 | N232479 | 1 | GEARCASE SA | RU | |||
| 71 | N110057 | 1 | SPINDLE | RU | |||
| 72 | N150961 | 1 | BEARING | RU | |||
| 73 | N095815 | 1 | SLEEVE | RU | |||
| 74 | 638229-00 | 1 | WASHER | RU | |||
| 80 | 562211-00 | 1 | HANDLE SIDE SA | RU | |||
| 81 | N107295 | 1 | HEX KEY | 6 mm | RU | ||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | RU | ||
| 861 | 638758-00 | 1 | KITBOX | DWE4150KD | RU |
