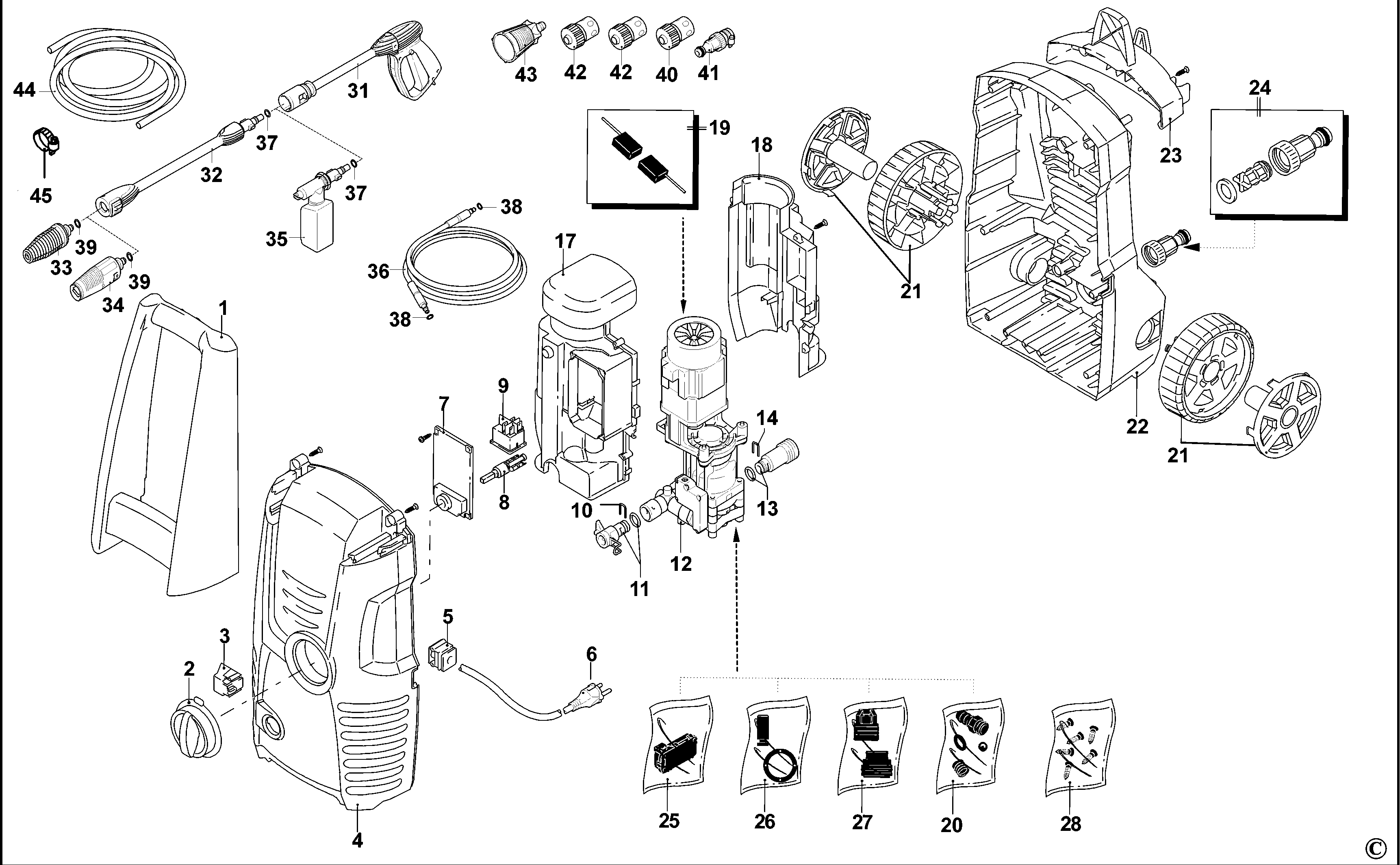

PW1500S PRESSURE WASHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	Markets
1	1004700-84	1	HANDLE	TW
2	1004700-62	1	KNOB	TW
3	1004700-63	1	LEVER	TW
4	1004700-64	1	CLAMSHELL	TW
5	1004455-07	1	GLAND	TW
6	5170031-66	1	CORDSET	TW
7	1004700-65	1	COVER	TW
8	1004700-66	1	PIN	TW
9	1004700-67	1	SWITCH SA	TW
10	1004512-08	1	FORK	TW
11	1004700-68	1	COUPLING SA	TW
12	5170034-27	1	PUMP SA	TW
13	1004512-17	1	SUCTION GROUP	TW
14	1004512-19	1	FORK	TW
15	5170027-16	1	KIT	TW
17	1004700-72	1	CONVEYOR	TW
18	1004700-73	1	CONVEYOR	TW
19	1004512-06	1	BRUSH KIT	TW
20	1004700-80	1	SUCTION GROUP	TW
21	1004700-87	2	WHEEL	TW
22	1004700-75	1	CLAMSHELL	TW
23	1004700-76	1	GUARD	TW
24	1004455-15	1	FILTER & INLET KIT	TW
25	1004512-10	1	SWITCH KIT 220V	TW
26	1004512-11	1	PISTONS & SEALS KIT	TW
27	1004512-12	1	VALVES & SEALS KIT	TW
28	1004700-79	1	SCREW KIT	TW
31	5170024-33	1	ADJUSTER HANDLE	TW
32	1004700-82	1	EXTENSION	TW
33	1004700-88	1	HEAD SA	TW
34	1004700-83	1	HEAD	TW
35	5170024-34	1	TANK	TW
36	1004512-26	1	HOSE SA	TW
37	5170024-35	2	O RING	TW
38	5170024-37	2	O RING	TW
39	5170024-36	1	O RING	TW
40	5170031-67	2	ADAPTOR	TW
41	5170031-68	1	ADAPTOR	TW
42	5170027-27	1	COUPLING	TW
43	5170027-24	1	FILTER	TW
44	5170033-21	1	PIPE	TW
45	5170027-25	1	CLAMP	TW
