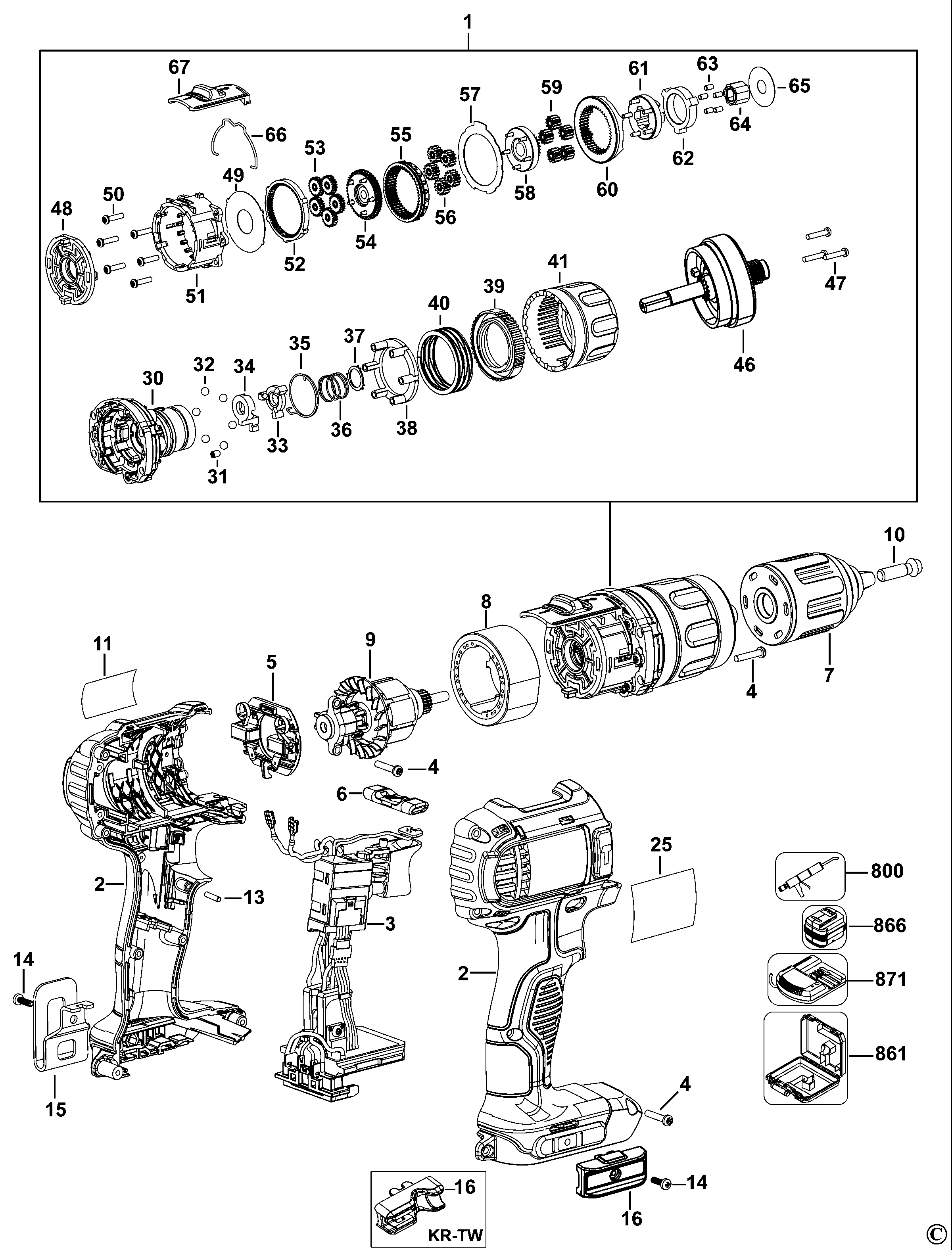

DCD785 CORDLESS DRILL/DRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N110035 | 1 | TRANSMISSION SA | TW | |||
| 2 | N070233 | 1 | CLAMSHELL SET | 18V | TW | ||
| 3 | N744152 | 1 | SWITCH SA | TW | |||
| 3 | N359839 | 1 | SWITCH SA | TW | |||
| 3 | N138732 | 1 | SWITCH SA | 20V | TW | ||
| 4 | 682211-00 | 12 | SCREW | TW | |||
| 5 | N109433 | 1 | BRUSH PLATE SA | TW | |||
| 6 | N039788 | 1 | ACTUATOR FWD/REV | TW | |||
| 7 | N092054 | 1 | CHUCK KEYLESS | TW | |||
| 8 | N109712 | 1 | MAGNET | TW | |||
| 9 | N110036 | 1 | ARMATURE SA | 18V | TW | ||
| 10 | N092854 | 1 | SCREW | TW | |||
| 11 | N093950 | 1 | BRAND LABEL | TW | |||
| 13 | N071836 | 1 | ROLL PIN | TW | |||
| 14 | N042665 | 2 | SCREW | TW | |||
| 15 | N086039 | 1 | HOOK | TW | |||
| 16 | N095778 | 1 | HOLDER BIT | TW | |||
| 30 | N124588 | 1 | HOUSING | TW | |||
| 31 | 326467-00 | 1 | DETENT | TW | |||
| 32 | N510716 | 6 | BALL | STEEL, 5MM | TW | ||
| 33 | N047986 | 1 | RATCHET | TW | |||
| 34 | N047987 | 1 | RATCHET | TW | |||
| 35 | N047989 | 1 | SPRING | TW | |||
| 36 | N047988 | 1 | SPRING | TW | |||
| 38 | N063688 | 1 | PLATE | TW | |||
| 39 | N036372 | 1 | ADJUSTER TORQUE | TW | |||
| 40 | N077956 | 1 | SPRING | TW | |||
| 41 | N047992 | 1 | COLLAR | TW | |||
| 46 | N110039 | 1 | SPINDLE SA | TW | |||
| 47 | 682211-00 | 3 | SCREW | TW | |||
| 48 | N022994 | 1 | ADAPTOR | TW | |||
| 49 | N063567 | 1 | PLATE | TW | |||
| 50 | N075506 | 6 | SCREW | TW | |||
| 51 | N033869 | 1 | GEARCASE | TW | |||
| 52 | N030988 | 1 | GEAR | 1ST RED | TW | ||
| 53 | N030999 | 5 | GEAR | TW | |||
| 54 | N124371 | 1 | CARRIER SA | TW | |||
| 55 | N031079 | 1 | GEAR | TW | |||
| 56 | N031080 | 5 | GEAR | TW | |||
| 57 | N032409 | 1 | WASHER | TW | |||
| 58 | N122400 | 1 | CARRIER SA | TW | |||
| 59 | N031083 | 5 | GEAR | TW | |||
| 60 | N078410 | 1 | GEAR | TW | |||
| 61 | N122401 | 1 | CARRIER SA | TW | |||
| 62 | N022985 | 1 | LOCKING RING | TW | |||
| 63 | N093416 | 5 | ROLLER | TW | |||
| 64 | N157720 | 1 | ANVIL ASSEMBLY | TW | |||
| 65 | N090435 | 1 | WASHER | TW | |||
| 66 | N035441 | 1 | WIRE STEEL | TW | |||
| 67 | N035051 | 1 | SELECTOR SA | TW | |||
| 800 | 808386-00 | 1 | GREASE | MOLYKOTE G68 100GMS | TW | ||
| 861 | N087499 | 1 | KITBOX | TW | |||
| 866 | DCB181-TW | 1 | BATTERY 18V - 1.5AH - 27WH | XR Li-Ion | TW | ||
| 866 | N123282 | 1 | BATTERY 18V - 1.5AH - 27WH | DCD785C2 | TW | ||
| 866 | N126189 | 1 | BATTERY 18V - 1.5AH - 27WH | DCD785C2 | TW | ||
| 871 | N120341 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-GB | TW | ||
| 871 | DCB101-NA | 1 | BATTERY CHARGER | TW | |||
| 871 | N126190 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-XE | TW | ||
| 871 | N120346 | 1 | CHARGER 10.8V - 18V | 10.8 - 18V - DCB105; DCB105-QW | TW |
