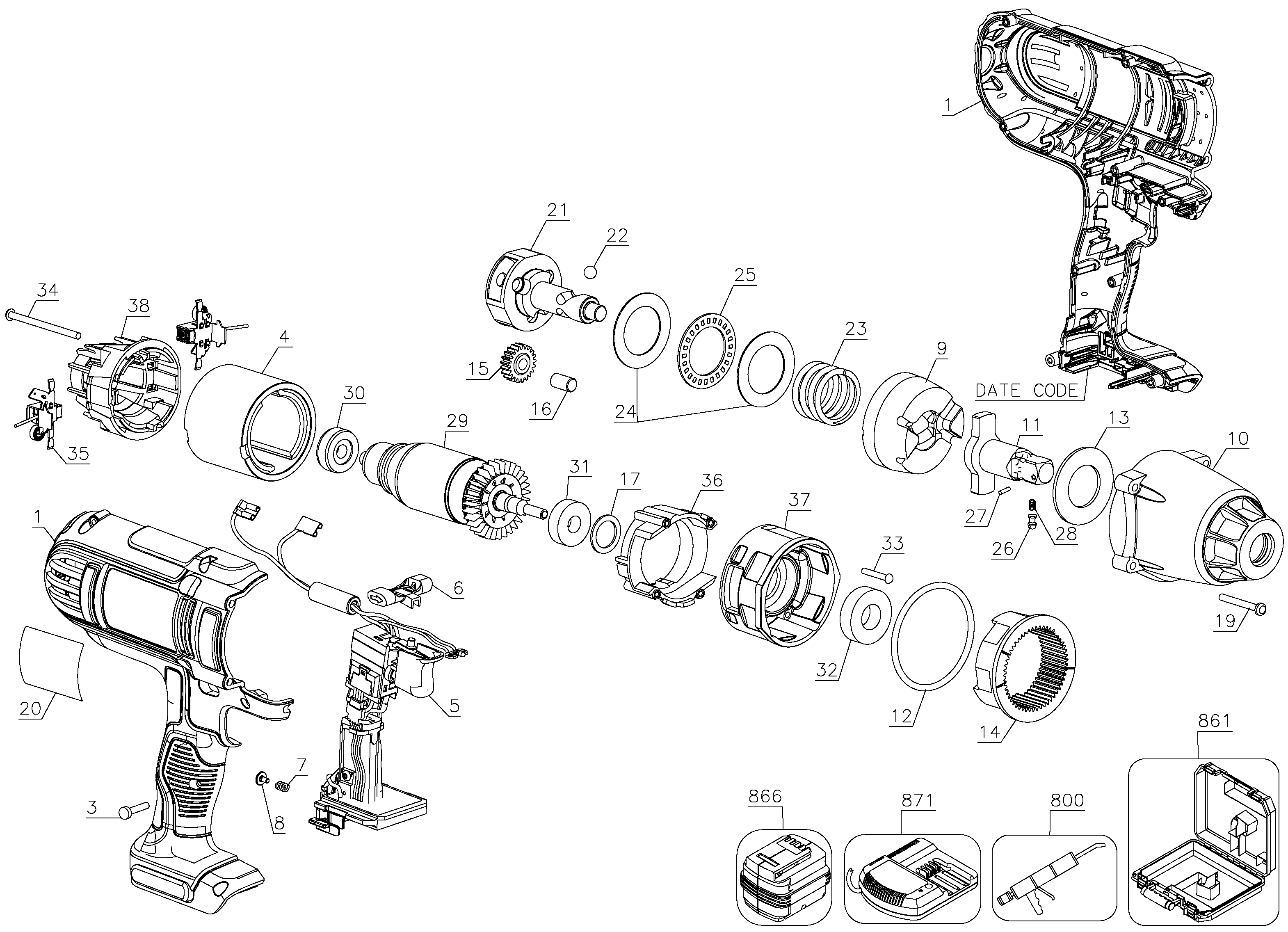

DCF889M2 CORDLESS IMPACT WRENCH Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N209035 | 1 | CLAMSHELL SET | A9 | |||
| 3 | 330019-24 | 9 | SCREW | A9 | |||
| 4 | 611202-00SV | 1 | MAGNET | A9 | |||
| 5 | N417411 | 1 | SERVICE KIT | DCF889 | A9 | ||
| 6 | N124832 | 1 | ACTUATOR FWD/REV | A9 | |||
| 7 | N102647 | 1 | SPRING | A9 | |||
| 8 | N091479 | 1 | MOUNT | A9 | |||
| 9 | 610023-00 | 1 | IMPACTOR | A9 | |||
| 10 | 615803-00SV | 1 | BARREL | A9 | |||
| 11 | 615801-00SV | 1 | ANVIL ASSEMBLY | A9 | |||
| 12 | 610542-00 | 1 | O RING | A9 | |||
| 13 | 610539-00 | 1 | WASHER THRUST | A9 | |||
| 14 | 648605-00 | 1 | GEAR | A9 | |||
| 15 | 610545-00 | 3 | GEAR | A9 | |||
| 16 | 611316-00 | 3 | ROLL PIN | 8x15mm | A9 | ||
| 17 | 611488-00 | 1 | WASHER | A9 | |||
| 19 | 330019-06 | 4 | SCREW | A9 | |||
| 20 | N192452 | 1 | RATING PLATE | DCF889-A9 | A9 | ||
| 21 | 610544-00 | 1 | CARRIER | CAM / CARRIER | A9 | ||
| 22 | 005190-00 | 2 | BALL STEEL | 9/32 inch | A9 | ||
| 23 | 613461-00 | 1 | SPRING | A9 | |||
| 24 | 613724-00 | 2 | WASHER THRUST | A9 | |||
| 25 | 610541-00 | 1 | BEARING THRUST | A9 | |||
| 26 | N020802 | 1 | DETENT | A9 | |||
| 27 | 099205-07 | 1 | ROLL PIN | A9 | |||
| 28 | 038769-00 | 1 | SPRING | A9 | |||
| 29 | N360879 | 1 | ARMATURE SA | A9 | |||
| 30 | 391032-00 | 1 | BEARING & SEAL | A9 | |||
| 31 | 605040-17 | 1 | BEARING BALL | A9 | |||
| 32 | 605040-25 | 1 | BEARING,BALL | A9 | |||
| 33 | N148194 | 1 | SCREW | ZINC PLATED | A9 | ||
| 34 | 330019-25 | 2 | SCREW | A9 | |||
| 35 | 610126-00 | 2 | BRUSHBOX SA | A9 | |||
| 36 | 610550-00 | 1 | BAFFLE FAN | A9 | |||
| 37 | 611205-00 | 1 | GEARCASE | A9 | |||
| 38 | N171820 | 1 | SUPPORT BEARING | A9 | |||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | A9 | ||
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | A9 | ||
| 861 | N142716 | 1 | KITBOX | A9 | |||
| 866 | DCB182-XJ | 2 | BATTERY 18V - 4.0AH - 72WH | XR Li-Ion | A9 | ||
| 871 | DCB105-A9 | 1 | CHARGER SA | A9 | A9 |
