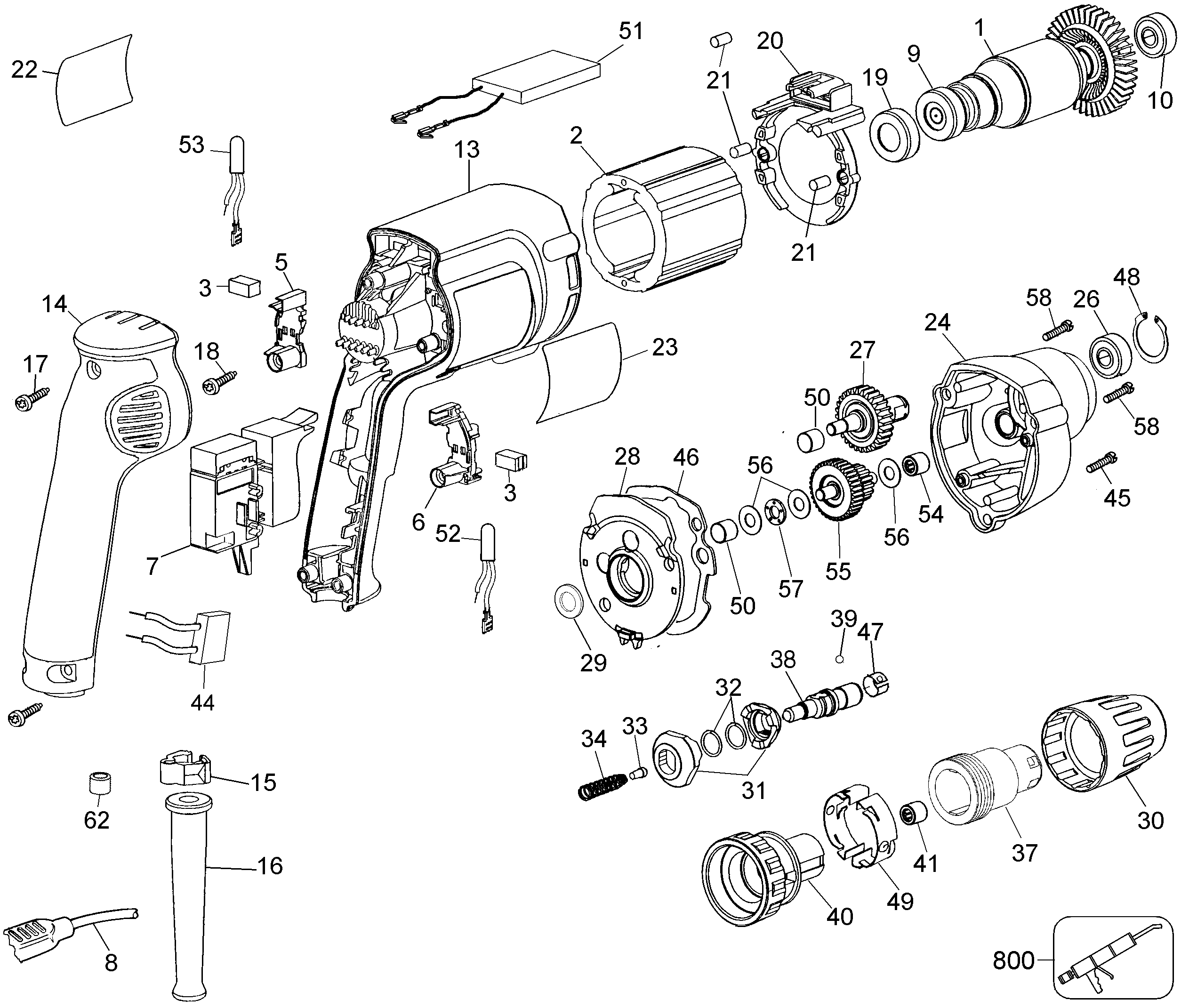

DW266 SCREWDRIVER Type A4 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 176853-05SV | 1 | ARMATURE & FAN | TW | |||
| 2 | 619838-06SV | 1 | FIELD SA | TW | |||
| 3 | 176949-01 | 1 | BRUSH | 115V | TW | ||
| 5 | 401877-01 | 1 | BRUSH HOLDER SA | TW | |||
| 6 | 401878-01 | 1 | BRUSH HOLDER SA | TW | |||
| 7 | 1006250-01 | 1 | SWITCH 115V | Marquardt | TW | ||
| 8 | 330113-22 | 1 | CORDSET | 18-2 ST | TW | ||
| 9 | 330003-04 | 1 | BEARING | TW | |||
| 10 | 330003-04 | 1 | BEARING | TW | |||
| 13 | 396969-14 | 1 | FIELDCASE | TW | |||
| 14 | 176816-06 | 1 | HANDLE COVER | TW | |||
| 15 | 176829-00 | 1 | CORD CLAMP | TW | |||
| 16 | 148809-00 | 1 | CORD PROTECTOR | NPP | TW | ||
| 17 | 330019-13 | 3 | SCREW | M4X19 T20 | TW | ||
| 18 | 176951-00 | 2 | SCREW | TW | |||
| 19 | 389824-00 | 1 | BOOT | TW | |||
| 20 | 176811-00 | 1 | BAFFLE | TW | |||
| 21 | 949638-02 | 2 | DAMPER | TW | |||
| 22 | 395047-00 | 1 | BRAND LABEL | TW | |||
| 23 | N028501 | 1 | RATING PLATE | DW266-TW TYPE A4 | TW | ||
| 24 | 176709-00SV | 1 | GEARCASE SA | INC 26, 48, 54 | TW | ||
| 26 | 605040-20 | 1 | BEARING | 12 x 28 x 8mm | TW | ||
| 27 | 176708-00SV | 1 | SPINDLE & GEAR | 28 TEETH | TW | ||
| 28 | 388761-00 | 1 | GEARCASE COVER | TW | |||
| 29 | 023813-00 | 1 | WASHER FIBRE | TW | |||
| 30 | 152492-01 | 1 | COLLAR | TW | |||
| 31 | N737329 | 2 | CLUTCH | TW | |||
| 32 | 089210-00 | 2 | RETAINER | TW | |||
| 33 | 021287-00 | 1 | GUIDE | TW | |||
| 34 | 86211-00 | 1 | SPRING | TW | |||
| 37 | 448862-00 | 1 | LOCATOR | 3/8 Nut Runner | 3/8" NUT RUNNER | TW | |
| 37 | 448862-01 | 1 | LOCATOR | 5/16 Nut Runner | 5/16" NUT RUNNER | TW | |
| 38 | 176697-00 | 1 | SPINDLE | TW | |||
| 39 | 696631-00 | 1 | BALL | TW | |||
| 40 | 176632-01 | 1 | HOUSING | INC 41, 49 | TW | ||
| 41 | 448848-00 | 1 | SLEEVE BEARING | TW | |||
| 44 | 098309-19 | 1 | CAPACITOR | TW | |||
| 45 | 330019-14 | 1 | SCREW | TW | |||
| 46 | 176655-00 | 1 | GASKET | TW | |||
| 47 | 094518-00 | 1 | RETAINER | TW | |||
| 48 | 087692-00 | 1 | RETAINER | TW | |||
| 49 | 391436-00 | 2 | SPRING | TW | |||
| 50 | 093128-00 | 2 | BEARING NEEDLE | TW | |||
| 51 | 637543-02 | 1 | CAPACITOR | TW | |||
| 52 | 176890-09 | 1 | CHOKE LEAD RED | RED | TW | ||
| 53 | 176890-08 | 1 | CHOKE LEAD | WHITE | TW | ||
| 54 | 330004-00 | 1 | BEARING | TW | |||
| 55 | 176731-00SV | 1 | SPINDLE & GEAR | 37 TEETH | TW | ||
| 56 | 176732-00 | 3 | WASHER | TW | |||
| 57 | 143079-00 | 1 | BEARING THRUST | TW | |||
| 58 | 330019-16 | 2 | SCREW | TW | |||
| 62 | 388414-04 | 4 | INSULATOR | TW | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | 6 OZ | CVJ GREASE | TW | |
| 800 | N017298 | 1 | GREASE | G-2008 Molykote | 1-LB | TW | |
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | TW |
