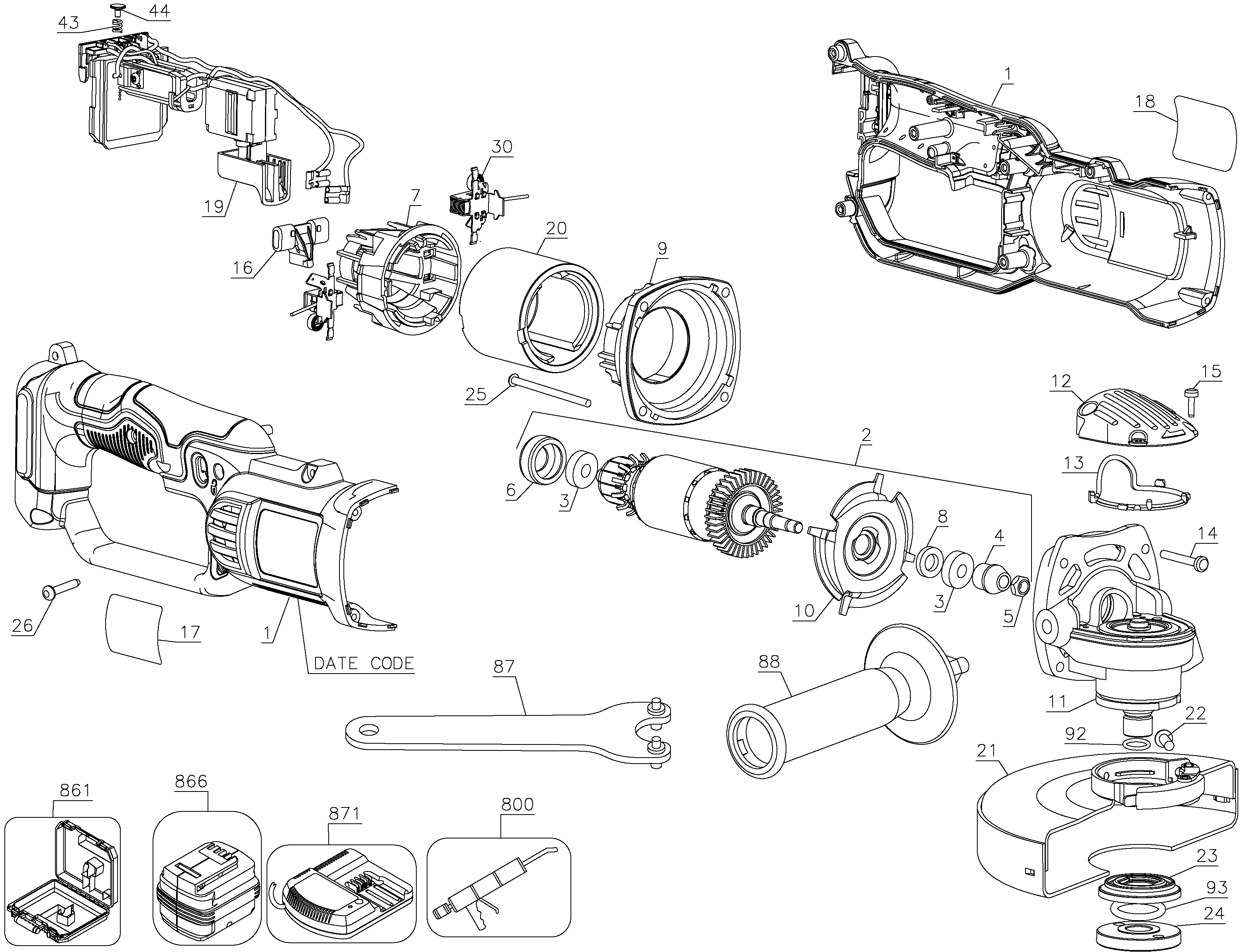

DCG412KN100 18V CORDLESS GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N115615 | 1 | CLAMSHELL SET | 20 V housings | A9 | ||
| 2 | 652479-00SV | 1 | ARMATURE SA | Incl. 3,4,5,6,8,10 | A9 | ||
| 3 | N110359 | 2 | BEARING | A9 | |||
| 4 | 623564-00 | 1 | PINION | 9 TOOTH | A9 | ||
| 5 | 604484-00 | 1 | NUT | M6 | A9 | ||
| 6 | 631563-00 | 1 | BOOT | A9 | |||
| 7 | N171820 | 1 | SUPPORT BEARING | A9 | |||
| 8 | 623617-00 | 1 | FELT SEAL | A9 | |||
| 9 | N027986 | 1 | BAFFLE FAN | A9 | |||
| 10 | N422242 | 1 | RETAINER | A9 | |||
| 11 | N263119 | 1 | GEARCASE SA | A9 | |||
| 12 | 623562-00 | 1 | GEARCASE COVER | A9 | |||
| 13 | 623618-00 | 1 | GASKET | A9 | |||
| 14 | 330065-13 | 4 | SCREW | A9 | |||
| 15 | 385676-01 | 4 | SCREW | A9 | |||
| 16 | N129056 | 1 | BUTTON LOCK-OFF | A9 | |||
| 17 | N303263 | 1 | RATING LABEL | A9 | |||
| 18 | N139498 | 1 | BRAND LABEL | A9 | |||
| 19 | N165338 | 1 | SWITCH SA | DCG412 EURO | A9 | ||
| 20 | 611202-00SV | 1 | MAGNET | A9 | |||
| 21 | N039878 | 1 | GUARD SA | 125MM, KEYLESS | A9 | ||
| 22 | 631609-03 | 1 | SCREW | A9 | |||
| 23 | 633257-01 | 1 | INNER FLANGE | A9 | |||
| 24 | 656927-00 | 1 | NUT | A9 | |||
| 25 | 330019-25 | 2 | SCREW | A9 | |||
| 26 | 330019-04 | 6 | SCREW | A9 | |||
| 30 | 610126-00 | 2 | BRUSHBOX SA | A9 | |||
| 43 | N453948 | 1 | SPRING | A9 | |||
| 44 | N091479 | 1 | MOUNT | A9 | |||
| 87 | 401253-00 | 1 | WRENCH ROUND-PINS | A9 | |||
| 88 | N239381 | 1 | SIDE HANDLE | A9 | |||
| 92 | 637162-01 | 1 | O RING | A9 | |||
| 93 | 637162-00 | 1 | O RING | A9 | |||
| 800 | 761995-01 | 1 | GREASE | 180 Grams | A9 | ||
| 800 | 283484-01 | 1 | GREASE | 32oz, EXXON CVJ | A9 | ||
| 861 | N132422 | 1 | KITBOX | A9 |
