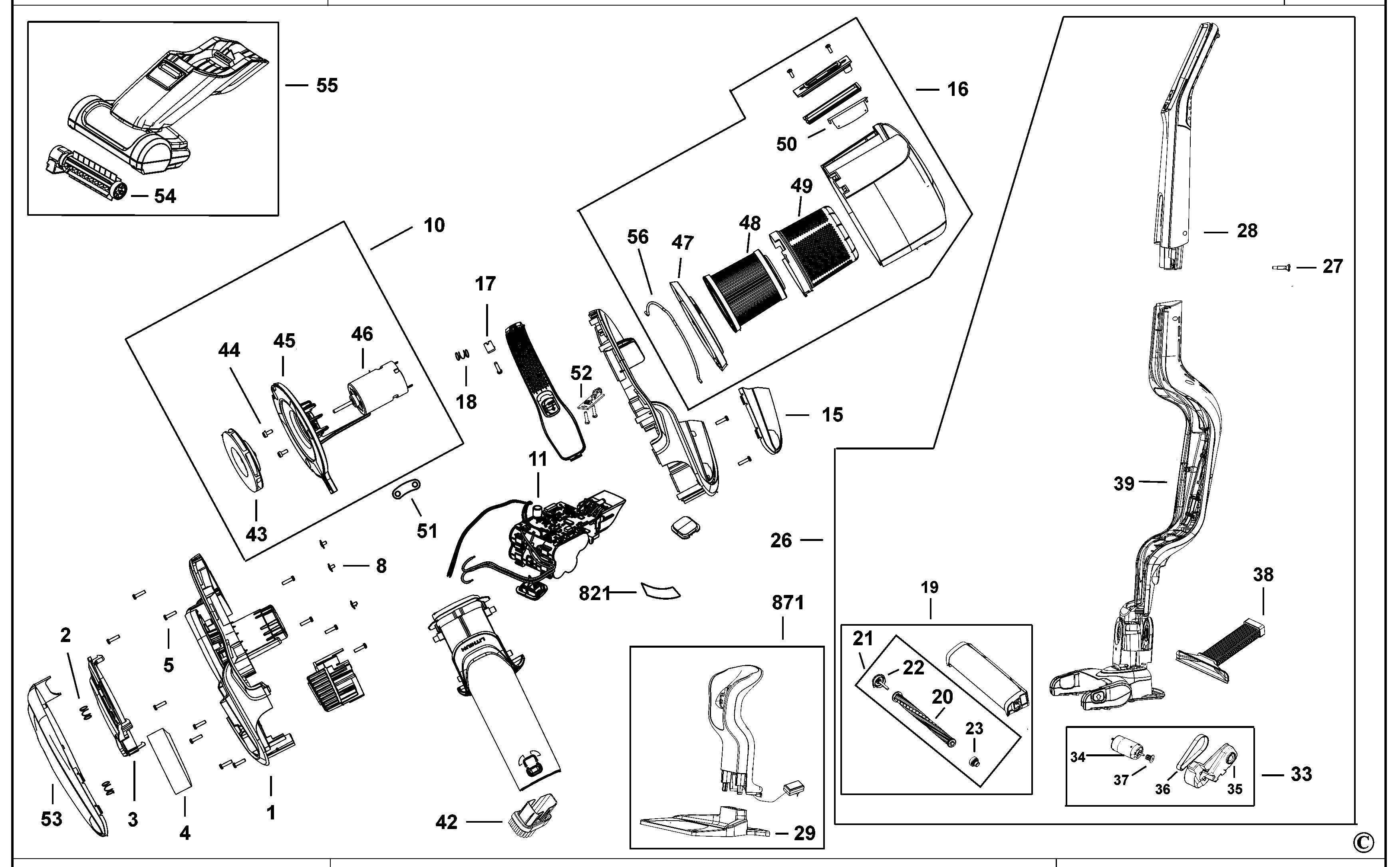

SVJ520BFSP DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90621185-16 | 1 | HOUSING SA | KR | |||
| 2 | 90627528 | 2 | SPRING | KR | |||
| 3 | 90606955-08 | 1 | LEVER RELEASE | KR | |||
| 4 | 90605950 | 1 | EXHAUST | KR | |||
| 5 | 90571477-01 | 16 | SCREW | KR | |||
| 8 | 90627524 | 1 | SCREW | KR | |||
| 10 | 90621178-07 | 1 | MOTOR SA | KR | |||
| 11 | N872854 | 1 | BATTERY PACK | KR | |||
| 15 | 90620997 | 1 | COVER | KR | |||
| 16 | N503912 | 1 | BOWL | KR | |||
| 17 | 90624626 | 1 | RELEASE | KR | |||
| 18 | 90627527 | 1 | SPRING | KR | |||
| 19 | N498771 | 1 | HEAD SA | KR | |||
| 20 | N496699 | 1 | ROLLER | SVJ520BFSP | KR | ||
| 21 | N499010 | 1 | ROLLER SA | KR | |||
| 22 | 90628362 | 1 | DRIVE SHAFT | KR | |||
| 23 | N545745 | 1 | END CAP SA | KR | |||
| 26 | 90621194-06 | 1 | FOOT SA | KR | |||
| 27 | 90601722 | 1 | SCREW | KR | |||
| 28 | 90603258-16 | 1 | HANDLE SA | KR | |||
| 29 | 90602829-01 | 1 | BASE PLATE | KR | |||
| 33 | 90608509 | 1 | MOTOR SA & MOUNT | KR | |||
| 34 | 90613453-07 | 1 | MOTOR SA 12V | KR | |||
| 35 | 90591875 | 1 | MOUNT | KR | |||
| 36 | 90592224 | 1 | BELT DRIVE | KR | |||
| 37 | N548025 | 1 | GEAR | KR | |||
| 38 | 90608567 | 1 | DUCT | KR | |||
| 39 | N876220 | 1 | CHASSIS SA | KR | |||
| 42 | 90627690 | 1 | BRUSH | KR | |||
| 43 | 90562789-04 | 1 | FAN | KR | |||
| 44 | 311940-01 | 2 | SCREW | KR | |||
| 45 | 90626637 | 1 | SUPPORT | KR | |||
| 46 | 90553498-03 | 1 | MOTOR | KR | |||
| 47 | N519708 | 1 | FRAME | KR | |||
| 48 | N663239 | 1 | FILTER | KR | |||
| 49 | 90606057 | 1 | PRE-FILTER | KR | |||
| 50 | 90615870 | 1 | FLAP | KR | |||
| 51 | 90626425 | 1 | RETAINER | KR | |||
| 52 | 90620562-01 | 1 | PCB | KR | |||
| 53 | 90614011 | 1 | COVER | KR | |||
| 54 | N925335 | 1 | ROLLER SA | KR | |||
| 55 | 90634541-01 | 1 | FOOT SA | PET | SVJ520BFSP | KR | |
| 56 | 90621658 | 1 | HANDLE | KR | |||
| 821 | N618170 | 1 | RATING LABEL | KR | |||
| 871 | 90621193-05 | 1 | CHARGER SA | KR |
