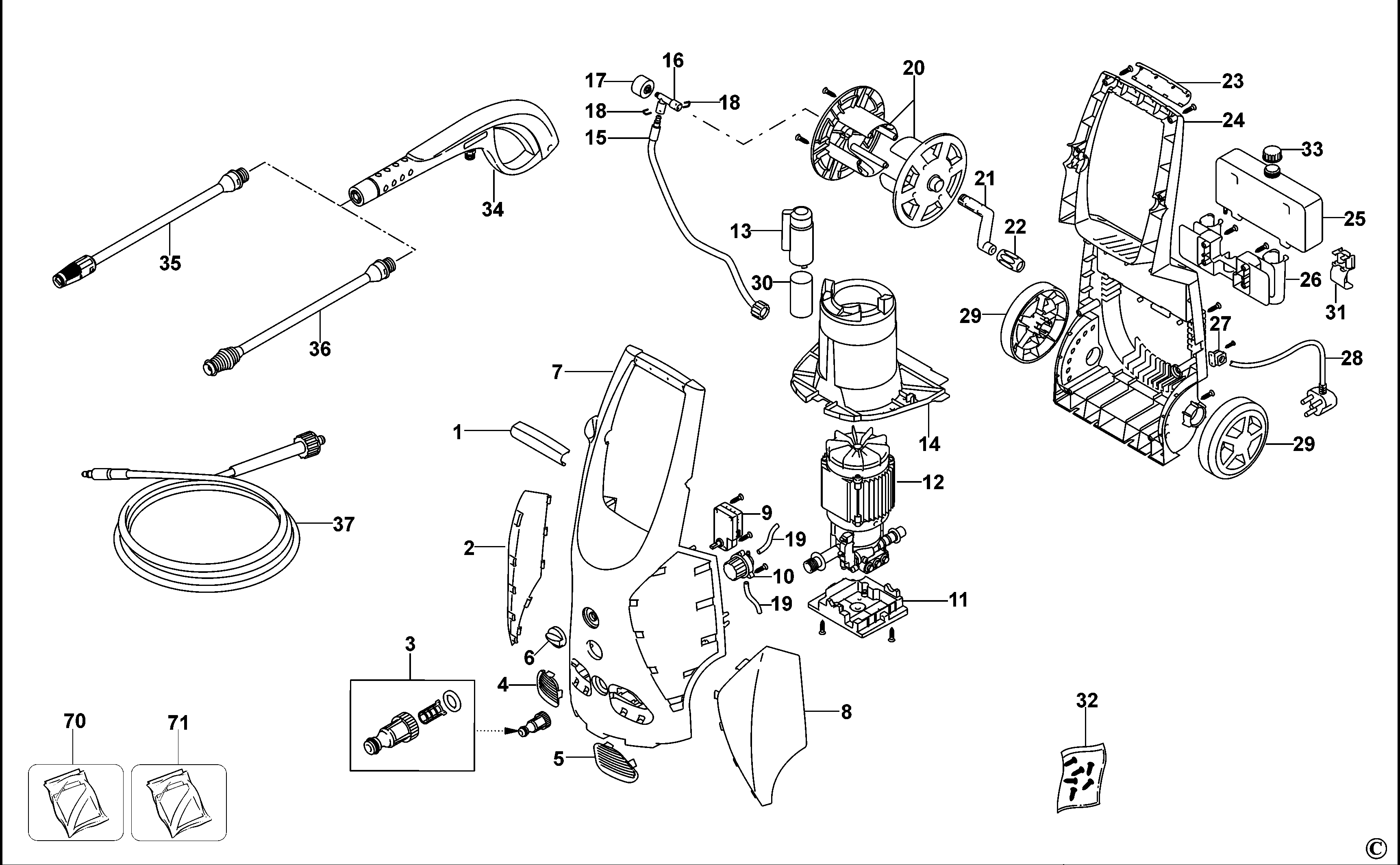

PW2100SPB PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004512-29 | 1 | KNOB | A9 | |||
| 2 | 1004512-30 | 1 | GUARD | A9 | |||
| 3 | 1004455-15 | 1 | FILTER & INLET KIT | A9 | |||
| 4 | 1004512-31 | 1 | GUARD | A9 | |||
| 5 | 1004512-32 | 1 | GUARD | A9 | |||
| 6 | 1004512-33 | 1 | KNOB | A9 | |||
| 7 | 1004512-34 | 1 | HOUSING FRONT | A9 | |||
| 8 | 1004512-35 | 1 | GUARD | A9 | |||
| 9 | 1004512-36 | 1 | BOX | A9 | |||
| 10 | 5140205-16 | 1 | DETERGENT REGULATOR | A9 | |||
| 12 | 1004512-39 | 1 | MOTOR & PUMP SA 240V | A9 | |||
| 13 | 1004512-40 | 1 | CARRIER | A9 | |||
| 14 | 1004512-41 | 1 | CONVEYOR | A9 | |||
| 15 | 1004512-42 | 1 | HOSE SA | A9 | |||
| 16 | 1004512-43 | 1 | JOINT | A9 | |||
| 17 | 1004512-44 | 1 | PRESSURE GAUGE | A9 | |||
| 18 | 5140205-32 | 2 | FORK | A9 | |||
| 19 | 1004512-46 | 2 | HOSE SA | A9 | |||
| 20 | 1004512-47 | 2 | PLATE | A9 | |||
| 21 | 5140126-70 | 1 | LEVER | A9 | |||
| 22 | 1004512-48 | 1 | KNOB | A9 | |||
| 23 | 1004512-49 | 1 | KNOB | A9 | |||
| 24 | 1004512-50 | 1 | BASE | A9 | |||
| 25 | 1004512-51 | 1 | TANK | A9 | |||
| 26 | 1004455-38 | 1 | CARRIER | A9 | |||
| 27 | 1004455-07 | 1 | GLAND | A9 | |||
| 28 | 1004512-53 | 1 | CABLE | A9 | |||
| 29 | 1004512-54 | 2 | WHEEL | A9 | |||
| 30 | 5140205-77 | 1 | CAPACITOR | A9 | |||
| 31 | 1004512-56 | 1 | CARRIER | A9 | |||
| 32 | 1004512-57 | 1 | SCREW | A9 | |||
| 33 | 1004512-58 | 1 | CAP | A9 | |||
| 34 | 1004512-59 | 1 | ADJUSTER HANDLE | A9 | |||
| 35 | 1004512-60 | 1 | SPRAY SA | A9 | |||
| 36 | 1004512-61 | 1 | SPRAY SA | Optional | A9 | ||
| 37 | 1004512-62 | 1 | HOSE SA | A9 | |||
| 41 | 1004512-91 | 1 | PLUG | A9 | |||
| 43 | 1004512-93 | 1 | CYLINDER HEAD | A9 | |||
| 44 | 5140205-40 | 1 | WASHER | A9 | |||
| 45 | 5140205-41 | 1 | WASHER | A9 | |||
| 46 | 5140205-42 | 1 | SCREW | A9 | |||
| 46 | 5140138-29 | 1 | BRACKET | A9 | |||
| 47 | 1004512-97 | 1 | CYLINDER | A9 | |||
| 48 | 1004512-98 | 1 | SWITCH KIT | A9 | |||
| 49 | 1004512-99 | 1 | PISTONS & SEALS KIT | A9 | |||
| 50 | 1004553-00 | 1 | VALVES & SEALS KIT | A9 | |||
| 51 | 1004553-01 | 1 | SUCTION GROUP | A9 | |||
| 52 | 1004553-02 | 1 | SUCTION GROUP | A9 | |||
| 53 | 1004553-03 | 1 | SWITCH KIT | A9 | |||
| 61 | 5140205-41 | 1 | WASHER | A9 | |||
| 62 | 5140205-41 | 1 | WASHER | A9 | |||
| 63 | 1004553-06 | 1 | PLATE | A9 | |||
| 64 | 5140205-50 | 1 | FAN | A9 | |||
| 65 | 5140205-51 | 1 | RING | A9 | |||
| 66 | 1004553-09 | 1 | MOTOR | A9 | |||
| 70 | 1004553-11 | 1 | ADAPTOR | A9 | |||
| 71 | 1004553-12 | 1 | PLASTIC ADAPTOR | A9 |
