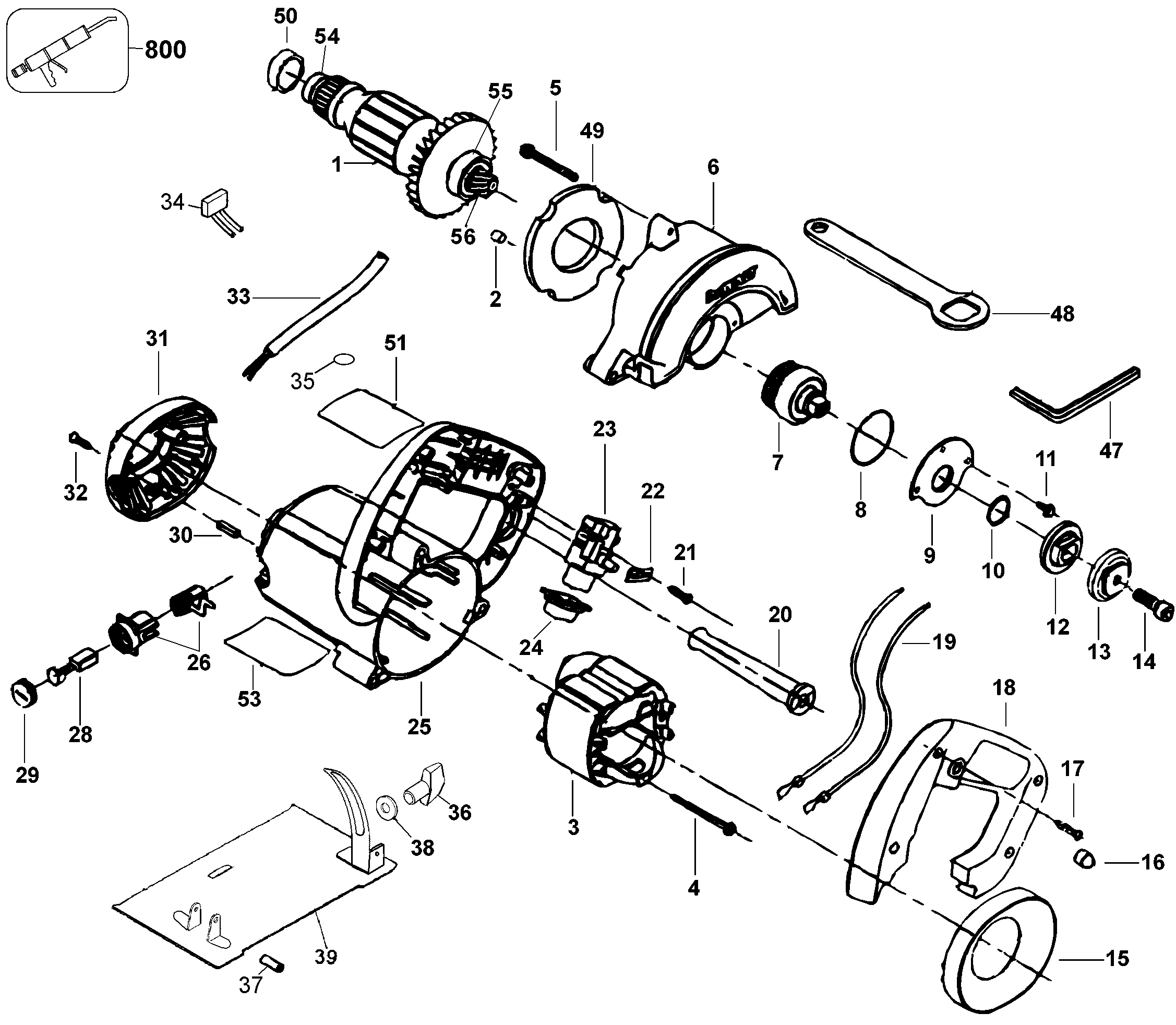

KT228 TILE CUTTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 562214-00 | 1 | ARMATURE 230V | A9 | |||
| 2 | 000000-00 | 1 | NO LONGER AVAILABLE | A9 | |||
| 3 | 562216-00 | 1 | FIELD 230V | A9 | |||
| 4 | 000000-00 | 2 | NO LONGER AVAILABLE | A9 | |||
| 6 | 569951-00 | 1 | GEARCASE SA | A9 | |||
| 7 | 000000-00 | 1 | NO LONGER AVAILABLE | A9 | |||
| 8 | 000000-00 | 1 | NO LONGER AVAILABLE | A9 | |||
| 9 | 562252-00 | 1 | GEARCASE COVER | A9 | |||
| 10 | 000000-00 | 1 | NO LONGER AVAILABLE | A9 | |||
| 11 | 000000-00 | 3 | NO LONGER AVAILABLE | A9 | |||
| 12 | 562231-00 | 1 | INNER FLANGE | A9 | |||
| 13 | 562232-00 | 1 | OUTER FLANGE | A9 | |||
| 14 | 185335-00 | 1 | SCREW | A9 | |||
| 15 | 562215-00 | 1 | BAFFLE | A9 | |||
| 16 | 562225-00 | 1 | BUTTON | A9 | |||
| 17 | 562097-03 | 4 | SCREW | A9 | |||
| 18 | 562221-03 | 1 | HANDLE COVER | A9 | |||
| 19 | 561913-00 | 2 | LEAD | A9 | |||
| 20 | 330005-01 | 1 | CORD PROTECTOR | A9 | |||
| 21 | 562097-00 | 2 | SCREW | A9 | |||
| 22 | 930103-00 | 1 | CORD CLAMP | A9 | |||
| 23 | 562223-00 | 1 | SWITCH | A9 | |||
| 25 | 562245-02 | 1 | HOUSING SA | A9 | |||
| 26 | 569518-00 | 2 | BRUSH HOLDER | A9 | |||
| 28 | 562217-01 | 2 | BRUSH 230V | A9 | |||
| 29 | 562219-00 | 2 | BRUSH CAP | A9 | |||
| 30 | 561928-00 | 2 | PIN | A9 | |||
| 31 | 569936-00 | 1 | END CAP | A9 | |||
| 32 | 562097-05 | 2 | SCREW | A9 | |||
| 33 | 562226-31 | 1 | CORDSET | A9 | |||
| 34 | 930030-01 | 1 | CAPACITOR | A9 | |||
| 35 | 616161-16 | 1 | LABEL | A9 | |||
| 36 | 326573-01 | 1 | SCREW WING | A9 | |||
| 37 | 562254-00 | 1 | ROLL PIN | A9 | |||
| 38 | 561916-00 | 1 | WASHER | A9 | |||
| 39 | 569948-00 | 1 | SHOE SA | A9 | |||
| 47 | 562238-00 | 1 | HEX KEY | A9 | |||
| 48 | 562237-00 | 1 | SPANNER | A9 | |||
| 49 | 569723-00 | 1 | DEFLECTOR | A9 | |||
| 50 | 949721-05 | 1 | SLEEVE | A9 | |||
| 51 | 569938-01 | 1 | ID LABEL | A9 | |||
| 53 | 605533-00 | 1 | NAME PLATE | KT228-A9 TY.2 | A9 | ||
| 54 | 605040-05 | 1 | BEARING | A9 | |||
| 55 | 330003-54 | 1 | BALL BEARING | A9 | |||
| 56 | 562244-00 | 1 | PINION | 15T | A9 | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | A9 |
