BDWDS20 VACUUM CLEANER Type 1 | Drawings

Documents

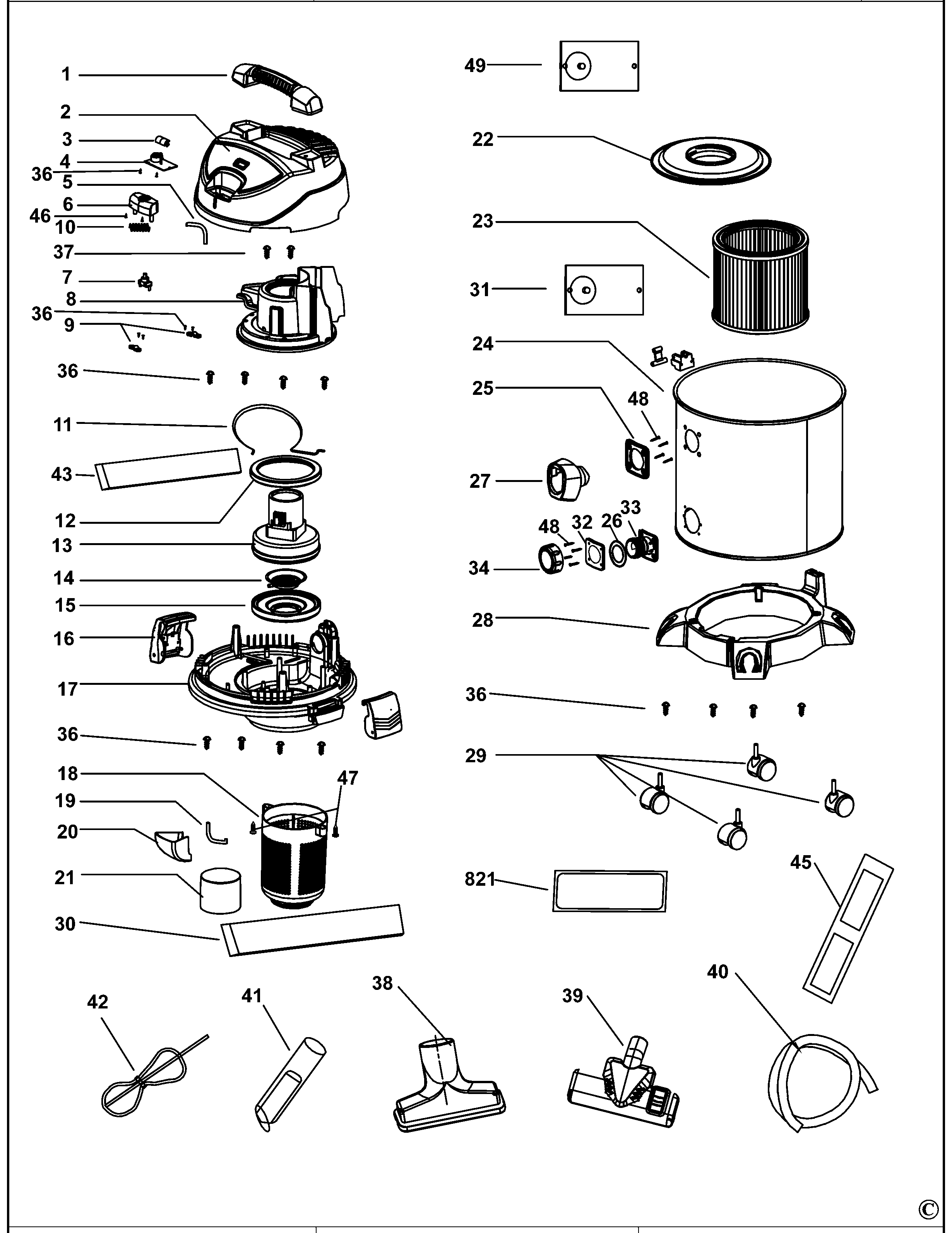

Item No.	Product Number	Qty Per	Product Description	General Description	Other Info	Markets
1	5170033-22	1	HANDLE			TW
2	5170033-23	1	COVER			TW
3	5170033-24	1	COVER			TW
4	5170039-98	1	PCB SA			TW
5	5170033-26	1	PIPE			TW
6	5170033-27	1	BUTTON			TW
7	5170033-28	1	SWITCH			TW
8	5170033-29	1	COVER			TW
9	5170033-30	1	BOARD			TW
10	5170033-31	1	SPRING			TW
11	5170033-32	1	SEAL			TW
12	5170033-33	1	SEAL			TW
13	5170039-99	1	MOTOR			TW
14	5170033-35	1	GRILL			TW
15	5170033-36	1	SEAL			TW
16	5170033-37	2	LOCK SA			TW
17	5170033-38	1	COVER			TW
18	5170033-39	1	FILTER			TW
19	5170033-40	1	PIPE			TW
20	5170033-41	1	COVER			TW
21	5170033-42	1	FLOAT			TW
22	5170033-43	1	COVER			TW
24	5170034-35	1	DRUM			TW
25	5170033-46	1	DEFLECTOR			TW
26	5170034-36	1	SEAL			TW
27	5170033-47	1	TUBE			TW
28	5170034-37	1	BASE			TW
29	5170033-49	4	WHEEL			TW
30	5170033-50	1	FILTER			TW
31	5170033-51	1	DUSTBAG	CLOTH		TW
32	5170034-93	1	PLATE			TW
33	5170034-38	1	CONNECTOR			TW
34	5170033-54	1	COVER			TW
36	5170033-56	17	SCREW		M4*6	TW
37	5170033-57	4	SCREW		M5*8	TW
38	5170033-58	1	BRUSH			TW
39	5170033-59	1	BRUSH			TW
40	5170033-60	1	HOSE			TW
41	5170033-61	1	NOZZLE			TW
42	5170040-01	1	CORDSET			TW
43	5170033-63	1	REDUCER		SPONGE	TW
45	5170033-65	1	TUBE			TW
46	5170034-56	2	SCREW			TW
47	5170034-57	2	SCREW			TW
48	5170034-58	8	SCREW			TW
821	5170040-02	1	RATING LABEL			TW
