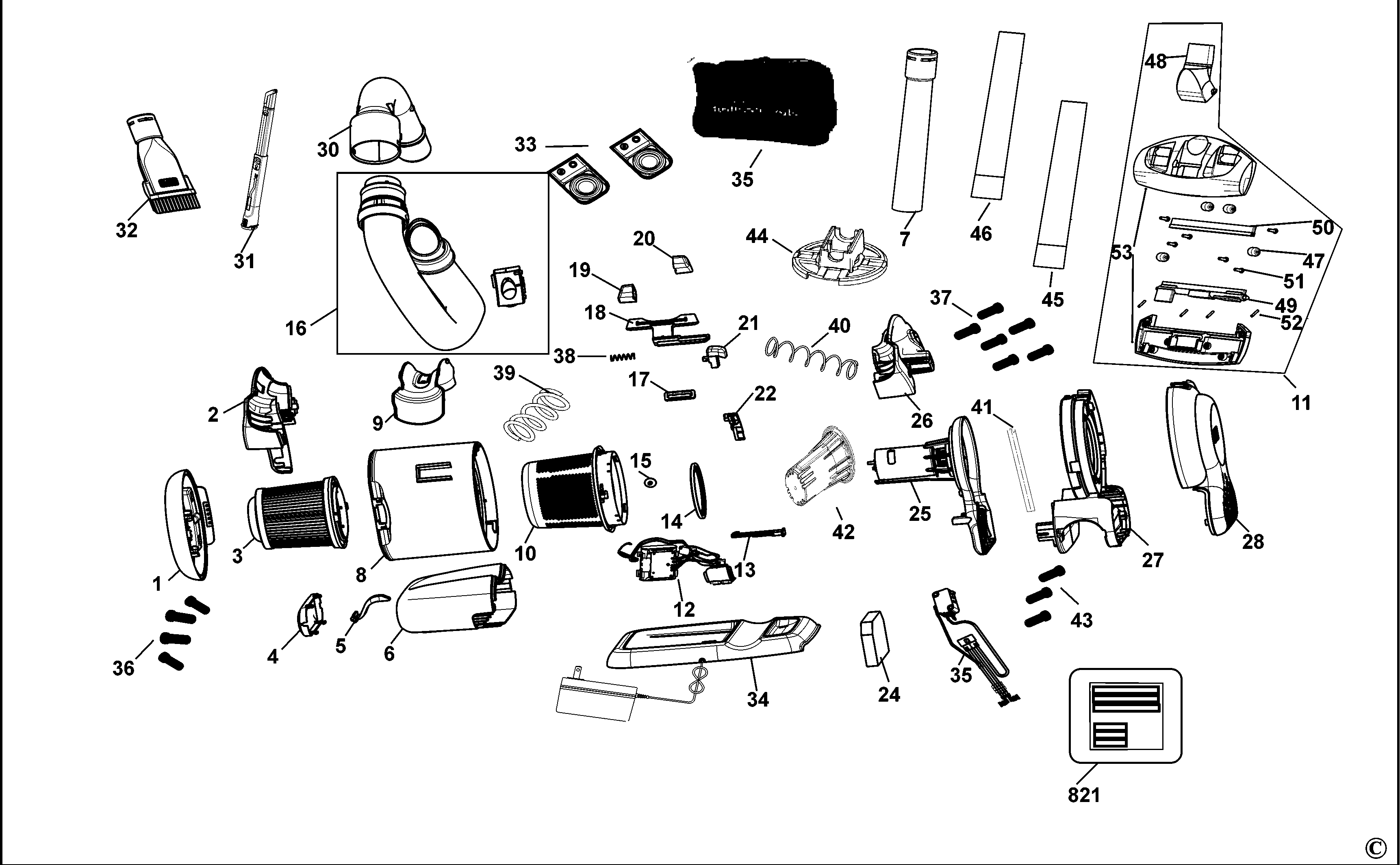

TPD1810BGEXT DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90600821 | 1 | DOOR | KR | |||
| 2 | 90592437 | 1 | HANDLE | KR | |||
| 3 | N566707 | 1 | FILTER | KR | |||
| 4 | 90595569 | 1 | INSERT | KR | |||
| 5 | 90633036 | 1 | LENS | KR | |||
| 6 | N516710 | 1 | HOUSING | KR | |||
| 7 | 90584441 | 1 | ADAPTOR TUBE | KR | |||
| 8 | 90600906 | 1 | BOWL | KR | |||
| 9 | 90595544 | 1 | INSERT | KR | |||
| 10 | 90598100 | 1 | PRE-FILTER | KR | |||
| 11 | 90537599-01 | 1 | HEAD SA | KR | |||
| 12 | N546834 | 1 | BATTERY CELL | KR | |||
| 13 | 90599180 | 1 | CLIP | KR | |||
| 14 | 90552441 | 1 | SEAL | KR | |||
| 15 | 90599358 | 1 | SCREW | KR | |||
| 16 | N577020 | 1 | HOSE SA | KR | |||
| 17 | 90598767 | 1 | SLIDER | KR | |||
| 18 | 90595607 | 1 | SLIDER | KR | |||
| 19 | 90596938 | 1 | SLIDER | KR | |||
| 20 | 90596939 | 1 | SLIDER | KR | |||
| 21 | 90592208 | 1 | LOCK | KR | |||
| 22 | 90591931 | 1 | SLIDER | KR | |||
| 24 | 90598990 | 1 | FOAM | KR | |||
| 25 | N521307 | 1 | MOTOR & FAN | KR | |||
| 26 | 90591553 | 1 | HANDLE | KR | |||
| 27 | N514259 | 1 | HOUSING | KR | |||
| 28 | 90597077 | 1 | HOUSING & COVER | KR | |||
| 30 | 90543785 | 1 | HANDLE SA | KR | |||
| 31 | N665749 | 1 | TOOL CREVICE | KR | |||
| 32 | 90600901-03 | 1 | BRUSH SA | KR | |||
| 33 | 90599332 | 2 | HOLDER TOOL | KR | |||
| 34 | 90635650 | 1 | CHARGER SA | KR | |||
| 35 | 90640046 | 1 | BAG | KR | |||
| 36 | 499903-00 | 4 | SCREW | KR | |||
| 37 | 143062-02 | 6 | SCREW | KR | |||
| 38 | 90586028 | 1 | SPRING | KR | |||
| 39 | 90600872 | 1 | SPRING | KR | |||
| 40 | 90600873 | 1 | SPRING | KR | |||
| 41 | 90529378 | 1 | SEAL | KR | |||
| 42 | 90595855 | 1 | COVER | KR | |||
| 43 | 5119564-00 | 3 | SCREW | KR | |||
| 44 | 90594117 | 1 | CAP | KR | |||
| 45 | 5102318-02 | 1 | TUBE UPPER | KR | |||
| 46 | 5102319-02 | 1 | TUBE LOWER | KR | |||
| 47 | 5101486-00 | 4 | ROLLER | KR | |||
| 48 | 5102320-06 | 1 | ADAPTOR | KR | |||
| 49 | 5102321-02 | 1 | ACTUATOR | KR | |||
| 50 | 5102327-00 | 1 | BRUSH | KR | |||
| 51 | 5102328-00 | 6 | SCREW | KR | |||
| 52 | 5102329-00 | 4 | PIN | KR | |||
| 53 | 90586680-01 | 1 | HEAD SA | KR | |||
| 821 | N666119 | 1 | RATING LABEL | KR |
