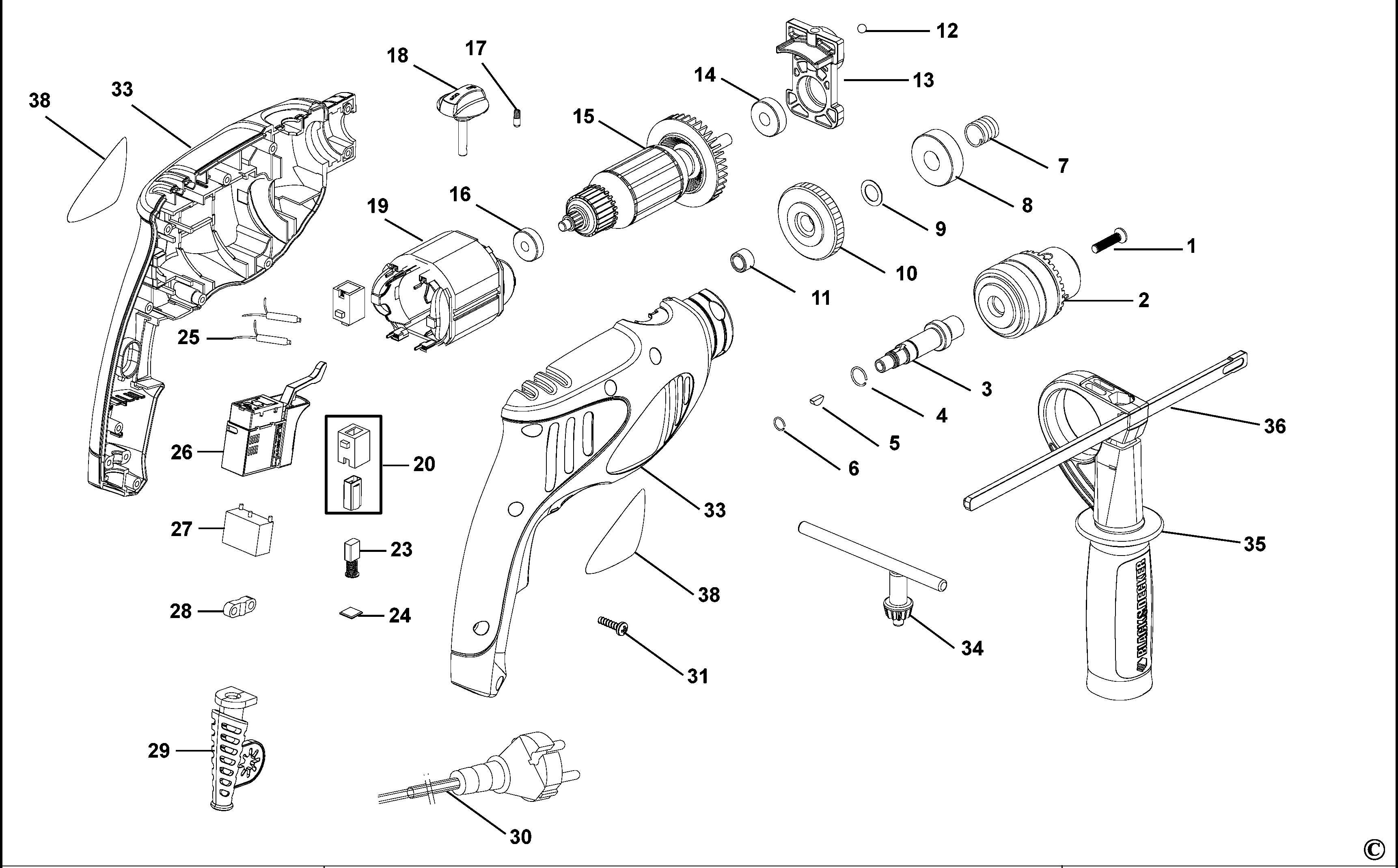

BMR450 ROTARY HAMMER DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004021-00 | 1 | SCREW | JP | |||
| 2 | 1004022-00 | 1 | CHUCK | 10MM 3/8" | JP | ||
| 3 | 1004023-00 | 1 | SHAFT | JP | |||
| 4 | 1004024-00 | 1 | CIRCLIP | JP | |||
| 5 | 1004025-00 | 1 | KEY | JP | |||
| 6 | 1004026-00 | 1 | CIRCLIP | JP | |||
| 7 | 1004027-00 | 1 | SPRING | JP | |||
| 8 | 1004028-00 | 1 | BEARING 6201 | JP | |||
| 9 | 1004029-00 | 1 | WASHER | JP | |||
| 10 | 1004030-00 | 1 | GEAR | JP | |||
| 11 | 1004031-00 | 1 | COVER | JP | |||
| 12 | 1004032-00 | 1 | BALL STEEL | JP | |||
| 13 | 1004033-00 | 1 | SUPPORT | JP | |||
| 14 | 1004034-00 | 1 | BEARING 608 | JP | |||
| 15 | 1004035-00 | 1 | ARMATURE | JP | |||
| 16 | 1004036-00 | 1 | BEARING | 625 | JP | ||
| 17 | 1004037-00 | 1 | LOCKING KNOB | JP | |||
| 18 | 1004038-00 | 1 | KNOB SA | JP | |||
| 19 | 1004039-00 | 1 | STATOR | JP | |||
| 20 | 1004040-00 | 2 | BRUSH HOLDER SA | JP | |||
| 23 | 1004042-00 | 2 | BRUSH | JP | |||
| 24 | 1004043-00 | 2 | BRUSH CAP | JP | |||
| 25 | 1004044-00 | 1 | INDUCTOR | JP | |||
| 26 | 1004045-00 | 1 | SWITCH | JP | |||
| 27 | 1004046-00 | 1 | CAPACITOR | JP | |||
| 28 | 1004047-00 | 1 | CABLE CLAMP | JP | |||
| 29 | 1004048-00 | 1 | CORD PROTECTOR | JP | |||
| 30 | 1004049-00 | 1 | CORDSET | ST4 x 16mm | JP | ||
| 31 | 1004050-00 | 12 | SCREW | ST4 x 16mm | JP | ||
| 33 | 1004051-00 | 1 | CLAMSHELL | JP | |||
| 34 | 1004052-00 | 1 | CHUCK KEY | JP | |||
| 35 | 1004053-00 | 1 | SIDE HANDLE | JP | |||
| 36 | 1004054-00 | 1 | DEPTH STOP | JP | |||
| 37 | 1004055-00 | 1 | BRAND LABEL | JP | |||
| 38 | 1004056-00 | 1 | RATING PLATE | JP |
