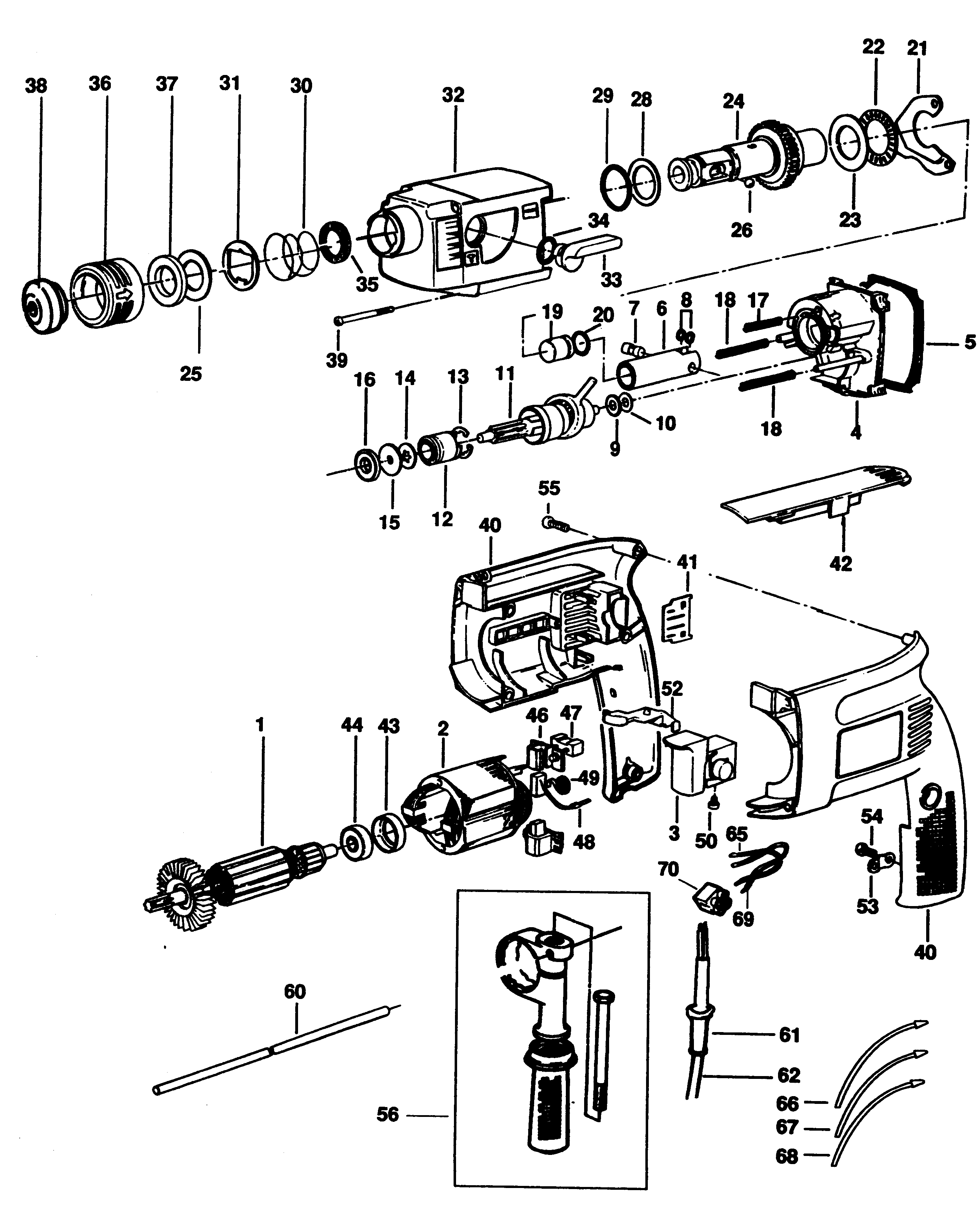

P8016 ROTARY HAMMER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 323497-01 | 1 | ARMATURE 120V | TW | |||
| 2 | 873875 | 1 | FIELD 115V | TW | |||
| 3 | 325065-49 | 1 | SWITCH SA | TW | |||
| 4 | 323777-00 | 1 | HOUSING BEARING | TW | |||
| 5 | 323572-00 | 1 | SEAL | TW | |||
| 6 | 325734-49 | 1 | PISTON KIT | TW | |||
| 7 | 323569-00 | 1 | AXLE | TW | |||
| 8 | 323753-00 | 2 | WASHER | UPTO DATE CODE 50-92 | TW | ||
| 8 | 324487-00 | 1 | SPRING | FROM DATE CODE 51-92 | TW | ||
| 9 | 324430-03 | 1 | BEARING AXIAL | TW | |||
| 10 | 324431-03 | 1 | WASHER 7 | TW | |||
| 11 | 323776-00 | 1 | INTERSHAFT SA | TW | |||
| 12 | 323494-01 | 1 | SLEEVE | TW | |||
| 13 | 323487-00 | 1 | RING | TW | |||
| 14 | 325294-00 | 1 | WASHER SPRING | TW | |||
| 15 | 324431-00 | 1 | WASHER 6 | TW | |||
| 16 | 324430-00 | 1 | BEARING NEEDLE | TW | |||
| 17 | 323395-00 | 1 | SPRING | TW | |||
| 18 | 323395-02 | 2 | SPRING | TW | |||
| 19 | 323567-00 | 1 | RAM | TW | |||
| 20 | 323711-24 | 1 | O RING | TW | |||
| 21 | 323488-00 | 1 | PLATE | TW | |||
| 22 | 324430-01 | 1 | BEARING,NEEDLE | TW | |||
| 23 | 324431-01 | 1 | WASHER 25MM | UPTO DATE CODE 47-93 | TW | ||
| 23 | 325896-00 | 1 | WASHER | FROM DATE CODE 48-93 | TW | ||
| 24 | 326228-49 | 1 | SPINDLE SA | TW | |||
| 25 | 323492-00 | 1 | WASHER | TW | |||
| 26 | 583890-00 | 1 | BALL | TW | |||
| 28 | 323753-01 | 1 | WASHER | TW | |||
| 29 | 323711-04 | 1 | SEAL | TW | |||
| 30 | 871690 | 1 | SPRING | TW | |||
| 31 | 578387-00 | 1 | WASHER | TW | |||
| 32 | 323774-01 | 1 | HOUSING GEARBOX | TW | |||
| 33 | 323493-00 | 1 | LEVER | TW | |||
| 34 | 323711-03 | 1 | SEAL | TW | |||
| 35 | 324432-00 | 1 | SEAL SA | TW | |||
| 36 | 576756-00 | 1 | COLLAR | TW | |||
| 37 | 323480-00 | 1 | SPACER | TW | |||
| 38 | 323489-00 | 1 | CAP | TW | |||
| 39 | 324044-02 | 4 | SCREW | TW | |||
| 40 | 323505-10 | 1 | CLAMSHELL SA | TW | |||
| 41 | 323758-00 | 2 | COVER | TW | |||
| 42 | 323666-01 | 1 | INSERT | TW | |||
| 43 | 323481-00 | 1 | CAP | TW | |||
| 44 | 605040-63 | 1 | BEARING | TW | |||
| 46 | 323496-01 | 2 | BRUSH HOLDER | TW | |||
| 47 | 323482-00 | 2 | PLUG | TW | |||
| 48 | 323660-00 | 2 | BRUSH 120V | TW | |||
| 49 | 872843 | 2 | SPRING | TW | |||
| 50 | 911026 | 3 | SCREW | TW | |||
| 52 | 324734-00 | 1 | INSERT | TW | |||
| 53 | 821070 | 1 | CORD CLAMP | TW | |||
| 54 | 323924-08 | 2 | SCREW | TW | |||
| 55 | 323924-02 | 5 | SCREW | TW | |||
| 56 | 939794-02 | 1 | HANDLE SIDE SA | TW | |||
| 60 | 580787-00 | 1 | DEPTH STOP | TW | |||
| 61 | 320785 | 1 | CORD PROTECTOR | TW | |||
| 62 | 321529 | 1 | CORDSET | TW | |||
| 65 | 323635-10 | 1 | LEAD 70MM | TW | |||
| 66 | 873312 | 1 | LEAD 100MM | TW | |||
| 67 | 323635-05 | 2 | LEAD 90MM BLACK | TW | |||
| 68 | 322075 | 1 | LEAD 210MM BLACK | TW | |||
| 69 | 323635-11 | 1 | LEAD 180MM | TW | |||
| 800 | 870889-02 | 1 | GREASE | TW | |||
| 846 | 327354-00 | 1 | WASHER SA | TW |
