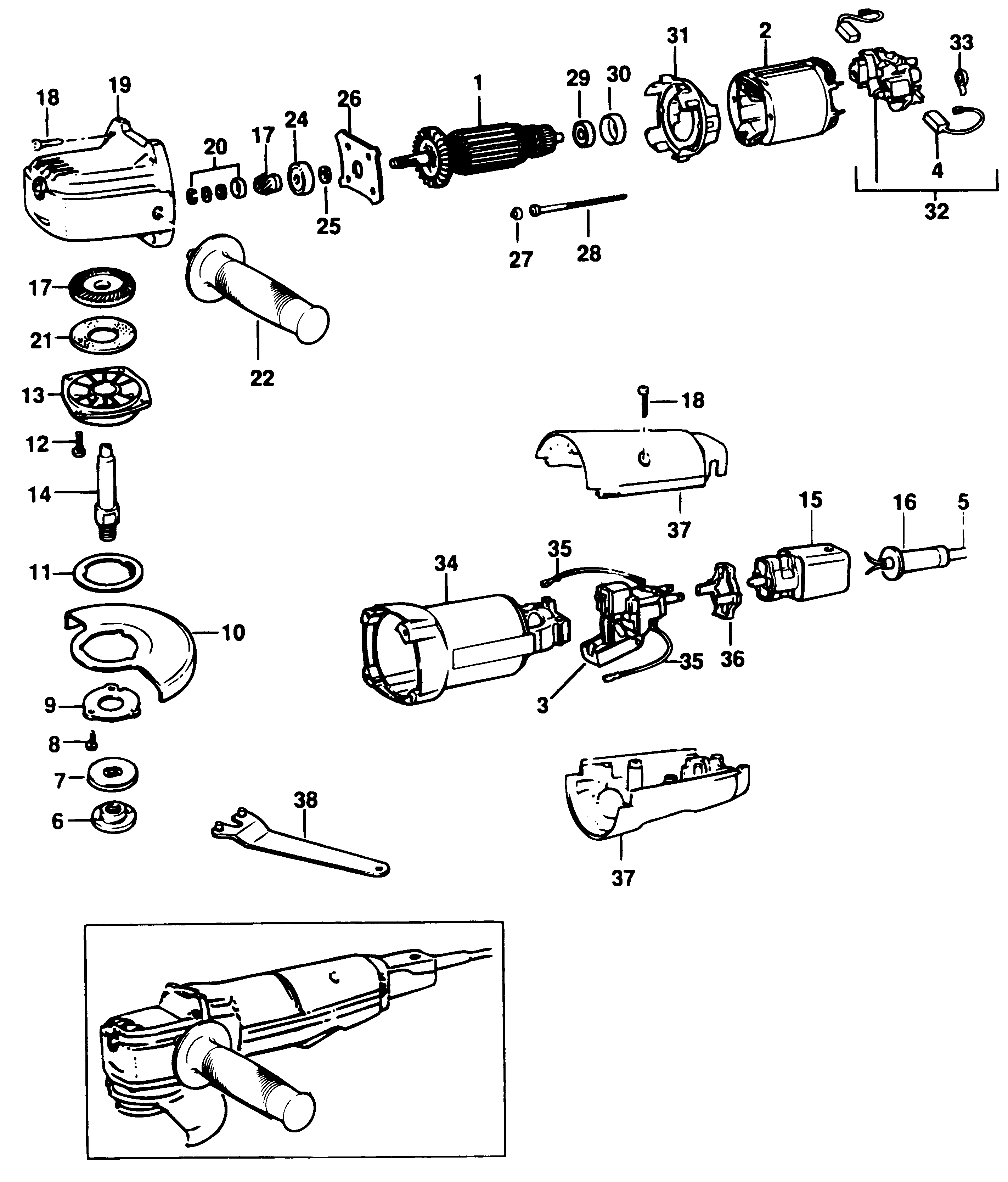

P5413B ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 949846-02 | 1 | ARMATURE | KR | |||
| 1 | 949846-02 | 1 | ARMATURE | AU-NZ | KR | ||
| 1 | 949846-03 | 1 | ARMATURE 115V | KR | |||
| 1 | 949846-03 | 1 | ARMATURE 115V | AE-115V | KR | ||
| 2 | 949847-09 | 1 | FIELD 115V | KR | |||
| 2 | 949847-09 | 1 | FIELD 115V | AE-115V | KR | ||
| 2 | 868629-02 | 1 | FIELD | KR | |||
| 2 | 949847-08 | 1 | FIELD | KR | |||
| 3 | 949822-03 | 1 | SWITCH | KR | |||
| 3 | 949822-03 | 1 | SWITCH | AU-NZ | KR | ||
| 4 | 939539-01 | 2 | BRUSH CUT OFF | KR | |||
| 4 | 939539-01 | 2 | BRUSH CUT OFF | AU-NZ | KR | ||
| 4 | 939539-00 | 2 | BRUSH CUT OFF | KR | |||
| 4 | 939539-00 | 2 | BRUSH CUT OFF | AE-115V | KR | ||
| 5 | 330048-37 | 1 | CORDSET | KR | |||
| 5 | 330081-01 | 1 | CABLE SA | KR | |||
| 5 | 330120-86 | 1 | CORDSET | KR | |||
| 5 | 330120-86 | 1 | CORDSET | AE-115V | KR | ||
| 6 | 947467-00 | 1 | OUTER FLANGE | KR | |||
| 6 | 947214-00 | 1 | OUTER FLANGE | KR | |||
| 7 | 391968-00 | 1 | INNER FLANGE | KR | |||
| 7 | 659110-00 | 1 | INNER FLANGE | KR | |||
| 8 | 930251-00 | 3 | SCREW | KR | |||
| 11 | 938272 | 1 | RING | KR | |||
| 12 | 930770-00 | 4 | SCREW | KR | |||
| 13 | 944055 | 1 | GEARCASE COVER SA | KR | |||
| 14 | 946412-00 | 1 | SPINDLE | KR | |||
| 15 | 945899-01 | 1 | PLUG | KR | |||
| 16 | N542553 | 1 | CORD PROTECTOR | KR | |||
| 16 | N542553 | 1 | CORD PROTECTOR | KR | |||
| 17 | 932592 | 1 | GEAR & PINION | KR | |||
| 18 | 930079-01 | 6 | SCREW | KR | |||
| 19 | 946131-00 | 1 | GEARCASE SA | KR | |||
| 20 | 937668 | 1 | CIRCLIP SA | KR | |||
| 21 | 946418-00 | 1 | FELT | KR | |||
| 24 | 577745-00 | 1 | BEARING | KR | |||
| 25 | 930753-00 | 1 | WASHER | KR | |||
| 27 | 933657-00 | 2 | CAP | KR | |||
| 28 | 930077-00 | 2 | SCREW | KR | |||
| 29 | 330003-34 | 1 | BEARING | KR | |||
| 30 | 930029-00 | 1 | HOLDER BEARING | KR | |||
| 31 | 946134-00 | 1 | BAFFLE | KR | |||
| 32 | 930167-00 | 1 | BRUSH PLATE SA | KR | |||
| 32 | 930167-00 | 1 | BRUSH PLATE SA | AU-NZ | KR | ||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | KR | |||
| 32 | 938856-00 | 1 | BRUSH PLATE SA | AE-115V | KR | ||
| 33 | 930090-00 | 2 | BRUSH SPRING | KR | |||
| 35 | 930728-00 | 2 | LEAD | KR | |||
| 36 | 930761 | 1 | RING | KR | |||
| 38 | 947830-03 | 1 | WRENCH SPECIAL | KR |
