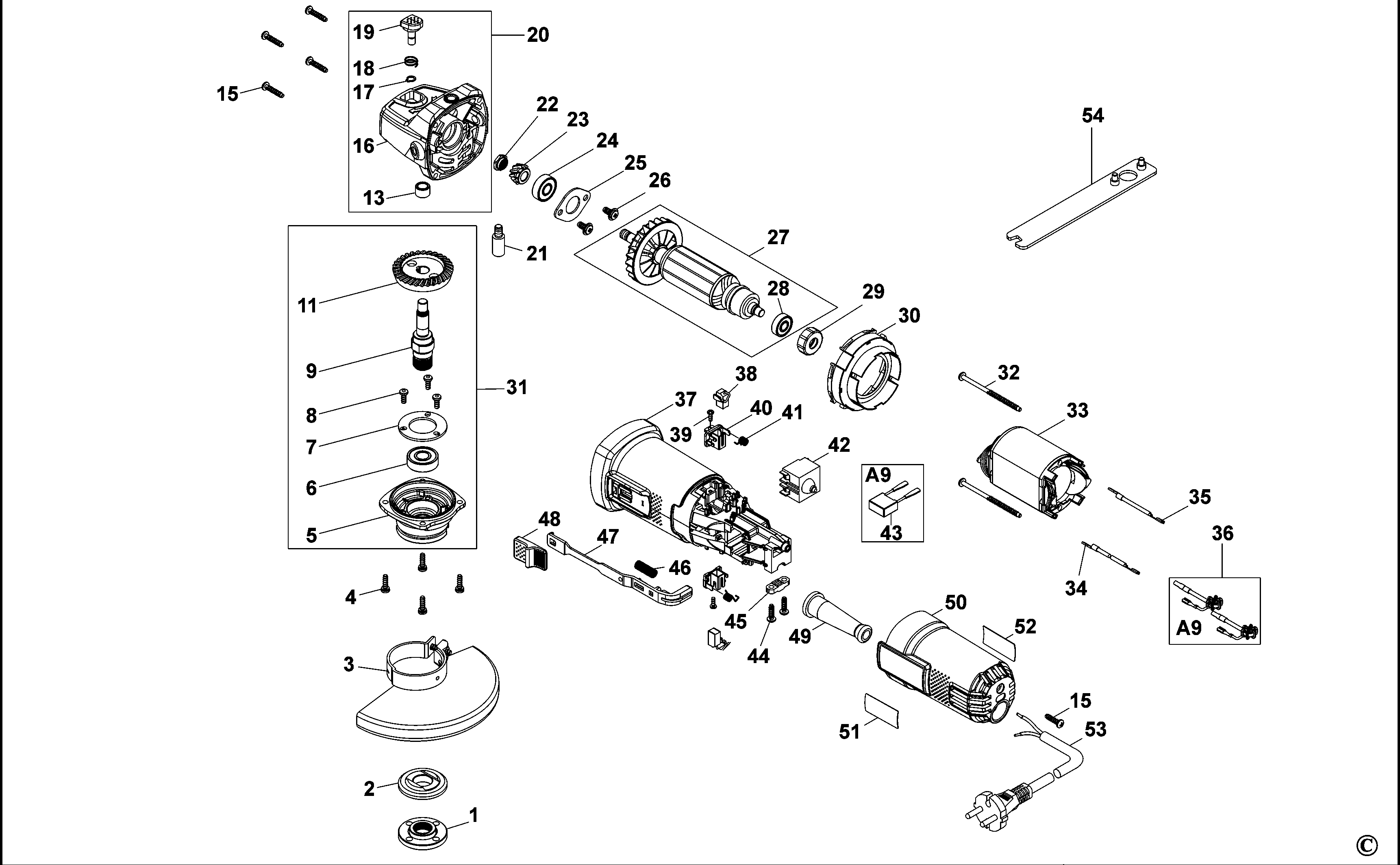

STEL811 ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004525-00 | 1 | OUTER FLANGE | A9 | |||
| 2 | 1004525-02 | 1 | INNER FLANGE | A9 | |||
| 3 | 1004683-49 | 1 | GUARD | A9 | |||
| 4 | 1004525-06 | 4 | SCREW | A9 | |||
| 5 | 1004683-50 | 1 | GEARCASE COVER | A9 | |||
| 6 | 1004525-08 | 1 | BEARING | 6000 | A9 | ||
| 7 | 1004525-09 | 1 | COVERPLATE | A9 | |||
| 8 | 1004525-10 | 3 | SCREW | A9 | |||
| 9 | 90594190 | 1 | SPINDLE | A9 | |||
| 11 | 90603123 | 1 | GEAR | A9 | |||
| 13 | 1004525-16 | 1 | BEARING SINTER | A9 | |||
| 15 | 1004525-18 | 5 | SCREW | A9 | |||
| 16 | 1004683-52 | 1 | GEARCASE | A9 | |||
| 17 | 1004525-20 | 1 | CIRCLIP | A9 | |||
| 18 | 5140040-64 | 1 | SPRING | A9 | |||
| 19 | 1004557-00 | 1 | LOCK BUTTON | A9 | |||
| 20 | 1004683-53 | 1 | GEARCASE SA | A9 | |||
| 21 | 1004525-23 | 1 | SCREW | A9 | |||
| 22 | 569175-00 | 1 | NUT | A9 | |||
| 23 | 90603179 | 1 | PINION GEAR | A9 | |||
| 24 | 1004525-25 | 1 | BEARING | 608 | A9 | ||
| 25 | 569168-00 | 1 | COVERPLATE | A9 | |||
| 26 | 596408-00 | 2 | SCREW | A9 | |||
| 27 | 90602413 | 1 | ARMATURE SA | A9 | |||
| 28 | 1004525-27 | 1 | BEARING | 607 | A9 | ||
| 29 | 1004525-28 | 1 | BEARING HOLDER | A9 | |||
| 30 | 90594193 | 1 | BAFFLE FAN | A9 | |||
| 31 | 90603124 | 1 | SPINDLE SA | A9 | |||
| 32 | 1004683-55 | 2 | SCREW | A9 | |||
| 33 | 90602412 | 1 | FIELD | A9 | |||
| 34 | 1004525-34 | 1 | LEADWIRE | A9 | |||
| 35 | 1004525-35 | 1 | LEADWIRE | A9 | |||
| 36 | 1004525-36 | 2 | CHOKE | A9 | |||
| 37 | 90594194 | 1 | HOUSING | A9 | |||
| 38 | 1004683-57 | 1 | BRUSH PAIR | A9 | |||
| 39 | 1004525-39 | 2 | SCREW | A9 | |||
| 40 | 1004683-58 | 2 | BRUSH HOLDER | A9 | |||
| 41 | 1004525-41 | 2 | BRUSH SPRING | A9 | |||
| 42 | 1004683-59 | 1 | SWITCH | A9 | |||
| 43 | 1004683-60 | 1 | CAPACITOR | A9 | |||
| 44 | 1004525-44 | 2 | SCREW | A9 | |||
| 45 | 596432-00 | 1 | CORDCLAMP | A9 | |||
| 46 | 1004525-45 | 1 | SPRING | A9 | |||
| 47 | 1004525-46 | 1 | LINKAGE SA | A9 | |||
| 48 | 1004557-03 | 1 | ACTUATOR | A9 | |||
| 49 | 1004525-48 | 1 | CORD PROTECTOR | A9 | |||
| 50 | 1004525-49 | 1 | COVER | A9 | |||
| 51 | 1004557-04 | 1 | BRAND LABEL | A9 | |||
| 52 | 1004683-61 | 1 | RATING LABEL | A9 | |||
| 53 | 1004525-55 | 1 | CORDSET | A9 | |||
| 54 | 1004525-57 | 1 | WRENCH PIN | A9 |
