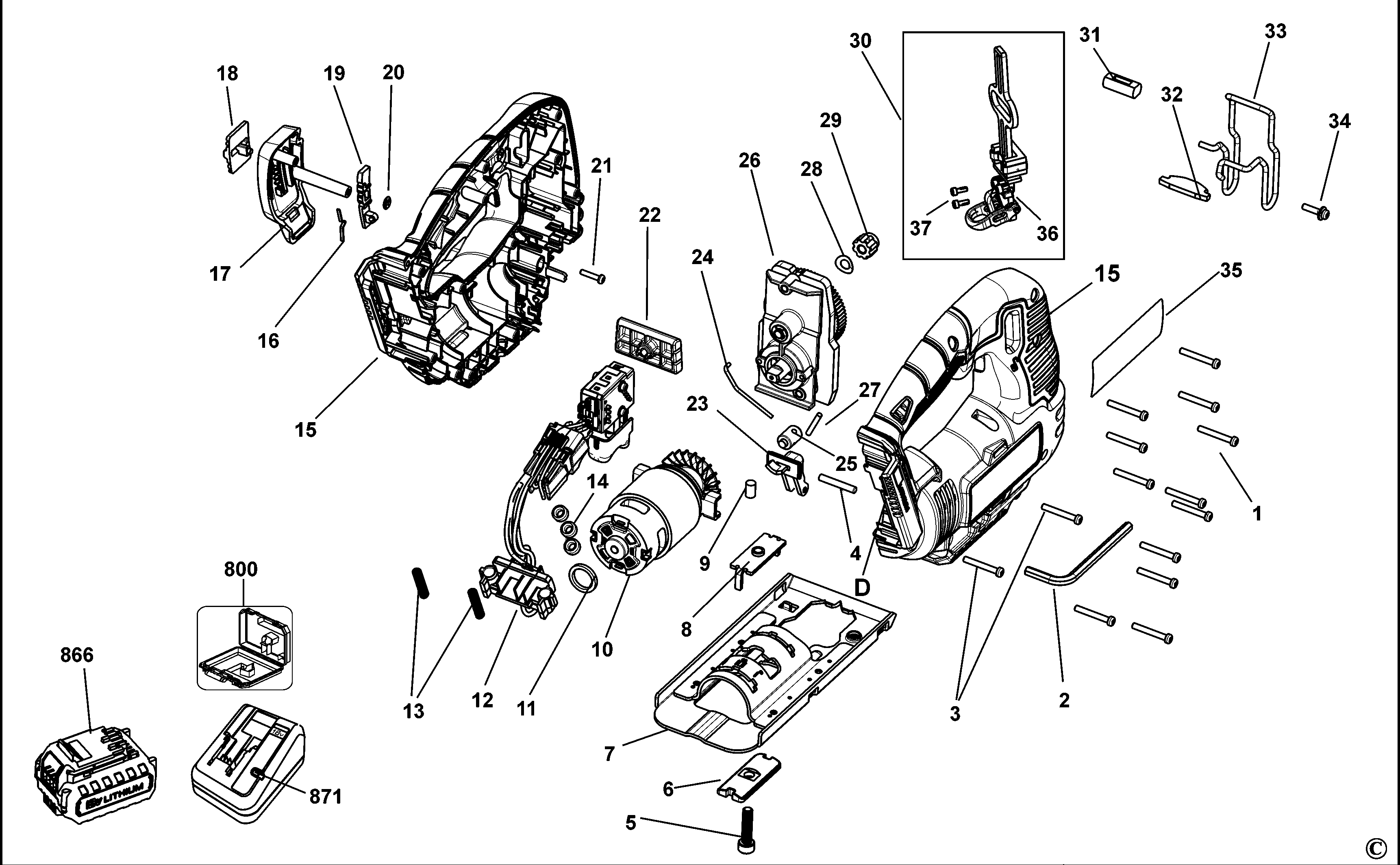

STCT1860 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5106167-00 | 12 | SCREW | KR | |||
| 2 | 90592650 | 1 | KEY | KR | |||
| 3 | 498099-00 | 2 | SCREW | KR | |||
| 4 | 5146349-00 | 1 | PIN | KR | |||
| 5 | 098121-25 | 1 | BOLT | KR | |||
| 6 | 90592125-01 | 1 | PLATE LOCK | KR | |||
| 7 | 90592770 | 1 | SHOE | KR | |||
| 8 | 90592123 | 1 | PLATE LOCK | KR | |||
| 9 | 5149025-00 | 1 | PLUG | KR | |||
| 10 | N675800 | 1 | MOTOR SA | KR | |||
| 11 | 90578553 | 1 | O RING | KR | |||
| 12 | 90595807-01 | 1 | SWITCH SA | KR | |||
| 13 | 5100035-03 | 2 | SPRING | KR | |||
| 14 | 90596605 | 3 | RING | KR | |||
| 15 | 90596171-01 | 1 | HOUSING SA | KR | |||
| 16 | 5145989-00 | 1 | DETENT | KR | |||
| 17 | 90596669-01 | 1 | SWITCH COVER | KR | |||
| 18 | 90593631-01 | 1 | SLIDER | KR | |||
| 19 | 90594596 | 1 | PLATE | KR | |||
| 20 | 5145994-00 | 1 | RING | KR | |||
| 21 | 5101046-01 | 1 | SCREW | KR | |||
| 22 | 90592209-01 | 1 | BAR LOCKING | KR | |||
| 23 | 90549292 | 1 | BLADE SUPPORT SA | KR | |||
| 24 | 90597489 | 1 | ROD | KR | |||
| 25 | 5146003-00 | 1 | SELECTOR | KR | |||
| 26 | 90593856 | 1 | GEARBOX | KR | |||
| 27 | 5146004-00 | 1 | NEEDLE | KR | |||
| 28 | 5146006-00 | 1 | WASHER | KR | |||
| 29 | 795688-00 | 1 | ROLLER | KR | |||
| 30 | 5146350-00 | 1 | SHAFT SA | Inc. Blade Clamp SA | KR | ||
| 31 | 810893 | 1 | BEARING | KR | |||
| 32 | 90546247 | 1 | PAD | KR | |||
| 33 | 90541995-01 | 1 | GUARD | KR | |||
| 34 | 90543289 | 1 | SCREW | KR | |||
| 35 | 90610597 | 1 | RATING LABEL | KR | |||
| 36 | 582593-00 | 1 | BLADE CLAMP | KR | |||
| 37 | 5146354-00 | 2 | SCREW | KR | |||
| 800 | 90580679-06 | 1 | KITBOX | KR |
