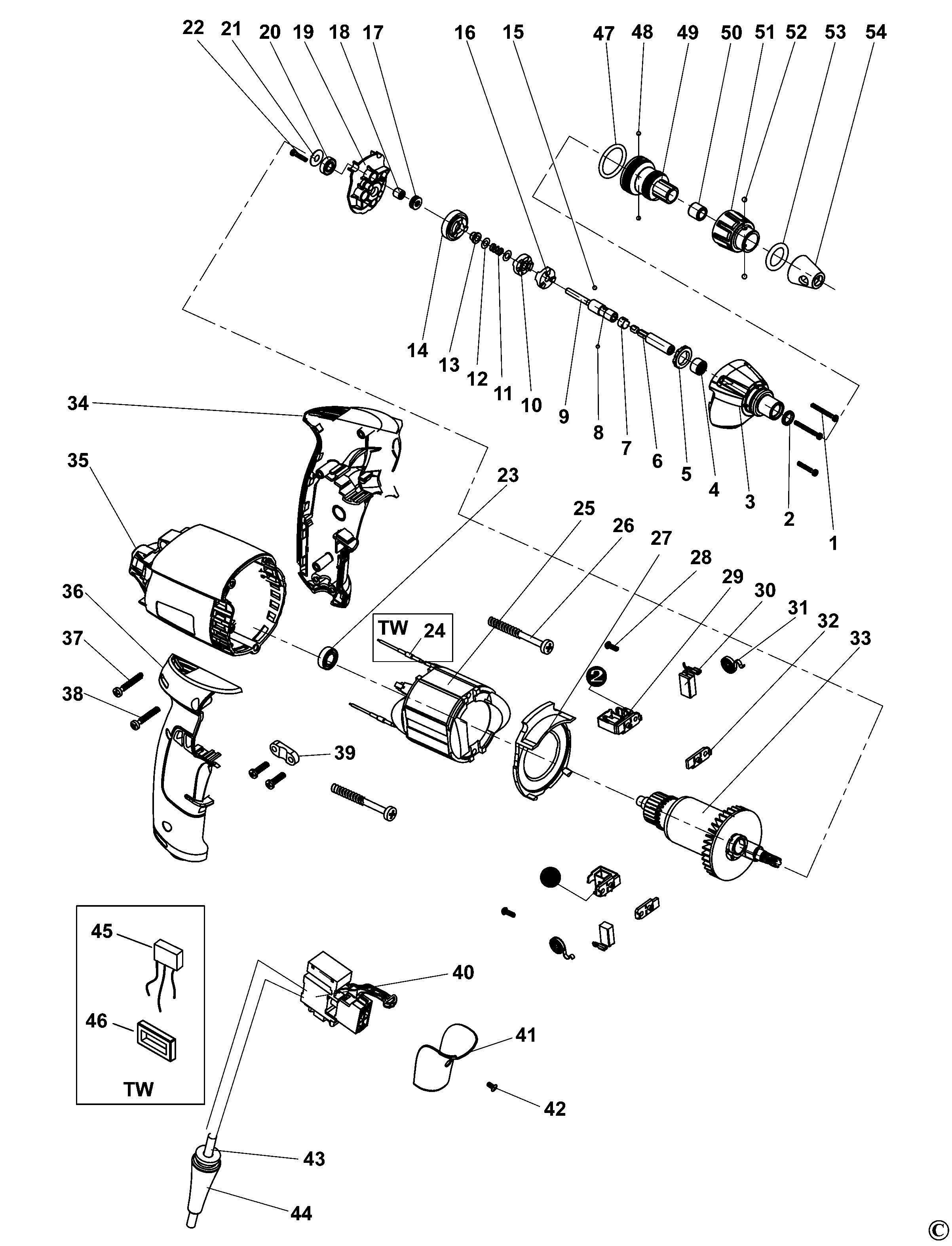

STDR5206 SCREWDRIVER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140136-22 | 1 | SCREW | TW | |||
| 2 | 5140136-23 | 1 | RING | TW | |||
| 3 | 5140136-24 | 1 | HOUSING GEAR | TW | |||
| 4 | 5140136-25 | 1 | BEARING NEEDLE | TW | |||
| 5 | 5140136-26 | 1 | CATCH | TW | |||
| 6 | 5140136-27 | 1 | HOLDER BIT | TW | |||
| 7 | 5140136-28 | 1 | RING | TW | |||
| 8 | 5140136-29 | 1 | BALL | TW | |||
| 9 | 5140136-30 | 1 | SPINDLE | TW | |||
| 10 | 5140136-31 | 1 | CLUTCH | TW | |||
| 11 | 5140136-32 | 1 | SPRING | TW | |||
| 12 | 5140136-33 | 1 | WASHER | TW | |||
| 13 | 5140136-34 | 1 | BEARING SLIDE | TW | |||
| 14 | 5140136-35 | 1 | GEAR | TW | |||
| 15 | 5140136-36 | 1 | BALL | TW | |||
| 16 | 5140136-37 | 1 | CLUTCH | TW | |||
| 17 | 5140136-38 | 1 | BEARING THRUST | TW | |||
| 18 | 5140136-39 | 1 | BEARING NEEDLE | TW | |||
| 19 | 5140136-40 | 1 | SEAT | TW | |||
| 20 | 5140136-41 | 1 | BEARING,BALL | TW | |||
| 21 | 5140136-42 | 1 | WASHER | TW | |||
| 22 | 5140136-43 | 1 | SCREW | TW | |||
| 23 | 5140136-46 | 1 | BEARING | TW | |||
| 24 | 5140136-47 | 1 | CHOKE | TW | |||
| 25 | 5170006-69 | 1 | FIELD | TW | |||
| 26 | 5140136-49 | 1 | SCREW | TW | |||
| 27 | 5140136-50 | 1 | BAFFLE | TW | |||
| 28 | 5140136-51 | 1 | SCREW | TW | |||
| 29 | 5140136-52 | 1 | BRUSH HOLDER | TW | |||
| 30 | 5170006-68 | 1 | BRUSH PAIR | TW | |||
| 31 | 5140136-54 | 1 | BRUSH SPRING | TW | |||
| 32 | 5140136-55 | 1 | SUPPORT | TW | |||
| 33 | 5170006-70 | 1 | ARMATURE | TW | |||
| 34 | 5170006-71 | 1 | HANDLE LH | TW | |||
| 35 | 5170006-72 | 1 | HOUSING MOTOR | TW | |||
| 36 | 5170006-73 | 1 | HANDLE RH | TW | |||
| 37 | 5140136-60 | 1 | SCREW | TW | |||
| 38 | 5140136-61 | 1 | SCREW | TW | |||
| 39 | 5140136-62 | 1 | CORD CLAMP | TW | |||
| 40 | 5170006-74 | 1 | SWITCH | TW | |||
| 41 | 5140136-64 | 1 | KNOB | TW | |||
| 42 | 5140136-65 | 1 | SCREW | TW | |||
| 43 | 5170006-52 | 1 | CORDSET | TW | |||
| 44 | 5140136-67 | 1 | CORD PROTECTOR | TW | |||
| 45 | 5170006-54 | 1 | CAPACITOR | TW | |||
| 46 | 5170006-55 | 1 | MAGNET | TW | |||
| 47 | 5140136-68 | 1 | O RING | TW | |||
| 48 | 5140136-69 | 1 | BALL | TW | |||
| 49 | 5140136-70 | 1 | BASE | TW | |||
| 50 | 5140136-71 | 1 | BUSH | TW | |||
| 51 | 5140136-72 | 1 | COVER | TW | |||
| 52 | 5140136-73 | 1 | BALL | TW | |||
| 53 | 5140136-74 | 1 | O RING | TW | |||
| 54 | 5140136-75 | 1 | NOZZLE | TW |
