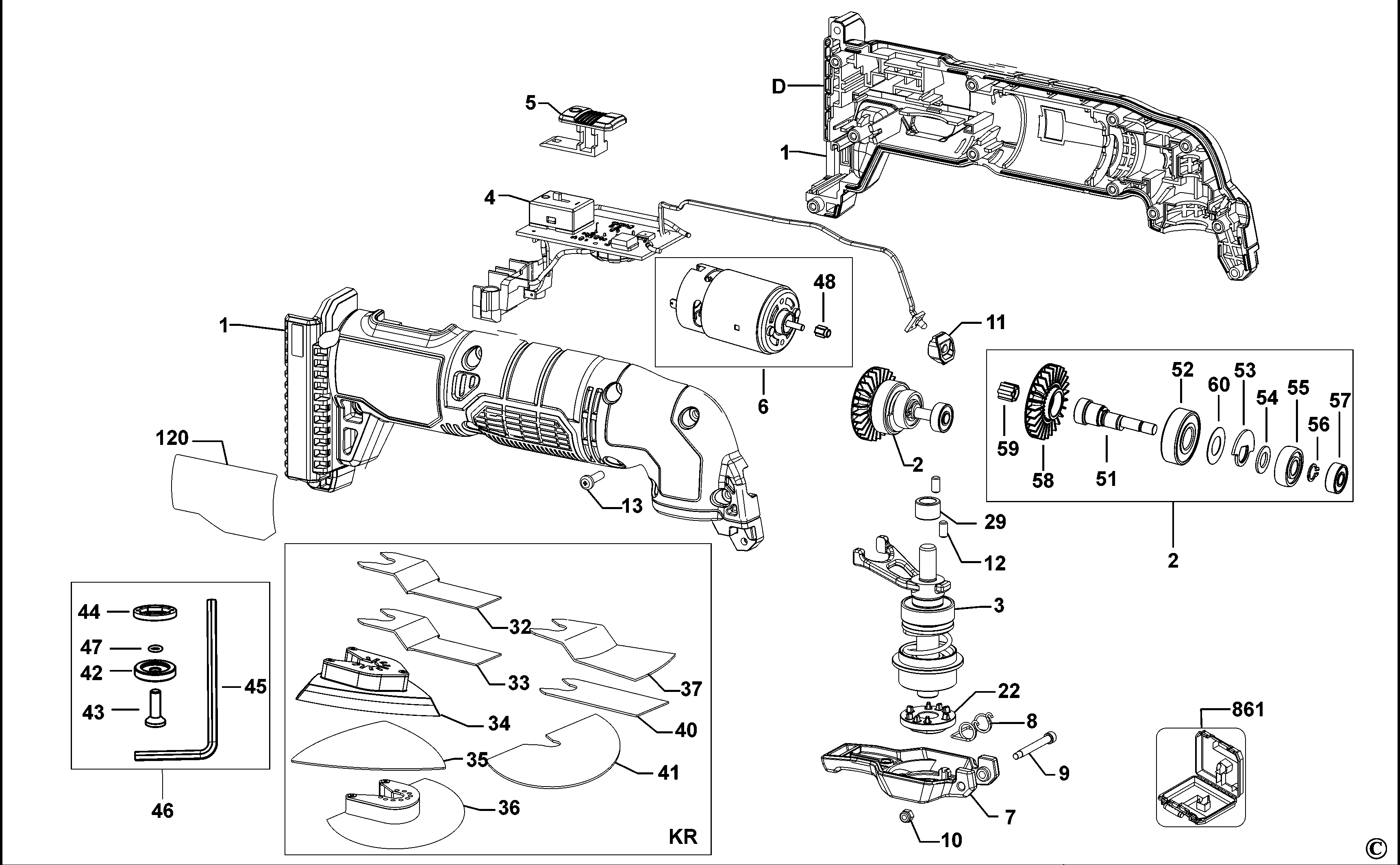

STCT1830 OSCILLATING TOOL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90611214 | 1 | HOUSING SA | KR | |||
| 2 | 90592735 | 1 | SHAFT SA | KR | |||
| 3 | 90592740 | 1 | SPINDLE SA | KR | |||
| 4 | N559535 | 1 | PCB SA | KR | |||
| 5 | 90592742-01 | 1 | ACTUATOR | KR | |||
| 6 | 90592745-01 | 1 | MOTOR SA | KR | |||
| 7 | 90599051 | 1 | LEVER SA | KR | |||
| 8 | 90580672 | 1 | SPRING TORSION | KR | |||
| 9 | 90581542 | 1 | SCREW | KR | |||
| 10 | 90581543 | 1 | NUT | KR | |||
| 11 | 90593191 | 1 | COVER | KR | |||
| 12 | 90596629 | 2 | PLUG | KR | |||
| 13 | 370748 | 10 | SCREW | KR | |||
| 22 | 90596670 | 1 | WASHER | KR | |||
| 29 | 624474-06 | 1 | BEARING,NEEDLE | KR | |||
| 32 | 90596776 | 1 | BLADE WOOD | KR | |||
| 33 | 90596846 | 1 | BLADE WOOD | KR | |||
| 34 | 90596847 | 1 | PLATEN | KR | |||
| 35 | 90596611 | 1 | SANDING SHEET | KR | |||
| 36 | 90596848 | 1 | BLADE | KR | |||
| 37 | 90596849 | 1 | BLADE - RIGID SCRAPER | KR | |||
| 40 | 90596850 | 1 | BLADE - FLEXIBLE SCRAPER | KR | |||
| 41 | 90596851 | 1 | BLADE - FLUSH CUT | KR | |||
| 42 | 90583886 | 1 | OUTER FLANGE | KR | |||
| 43 | 90583887 | 1 | SCREW | KR | |||
| 44 | N440293 | 1 | FLANGE | KR | |||
| 45 | 90584745 | 1 | WRENCH SPECIAL | KR | |||
| 46 | 90587554 | 1 | FLANGE SET SA | KR | |||
| 47 | 90583888 | 1 | RING | KR | |||
| 48 | 90592744 | 1 | PINION | KR | |||
| 51 | 90592736 | 1 | DRIVE SHAFT | KR | |||
| 52 | 90581550 | 1 | BEARING | 6000 ZZ | KR | ||
| 53 | 90581541 | 1 | PLATE | KR | |||
| 54 | 90581562 | 1 | WASHER | KR | |||
| 55 | 90586419 | 1 | BEARING | S607-2RS | KR | ||
| 56 | 90581539 | 1 | CLIP | KR | |||
| 57 | 90592737 | 1 | BEARING | KR | |||
| 58 | 90592738 | 1 | FAN | KR | |||
| 59 | 90592739 | 1 | PINION | KR | |||
| 60 | 90594208 | 1 | WASHER | KR | |||
| 120 | 90627652 | 1 | RATING LABEL | KR | |||
| 861 | 90612432 | 1 | KIT BOX | KR |
