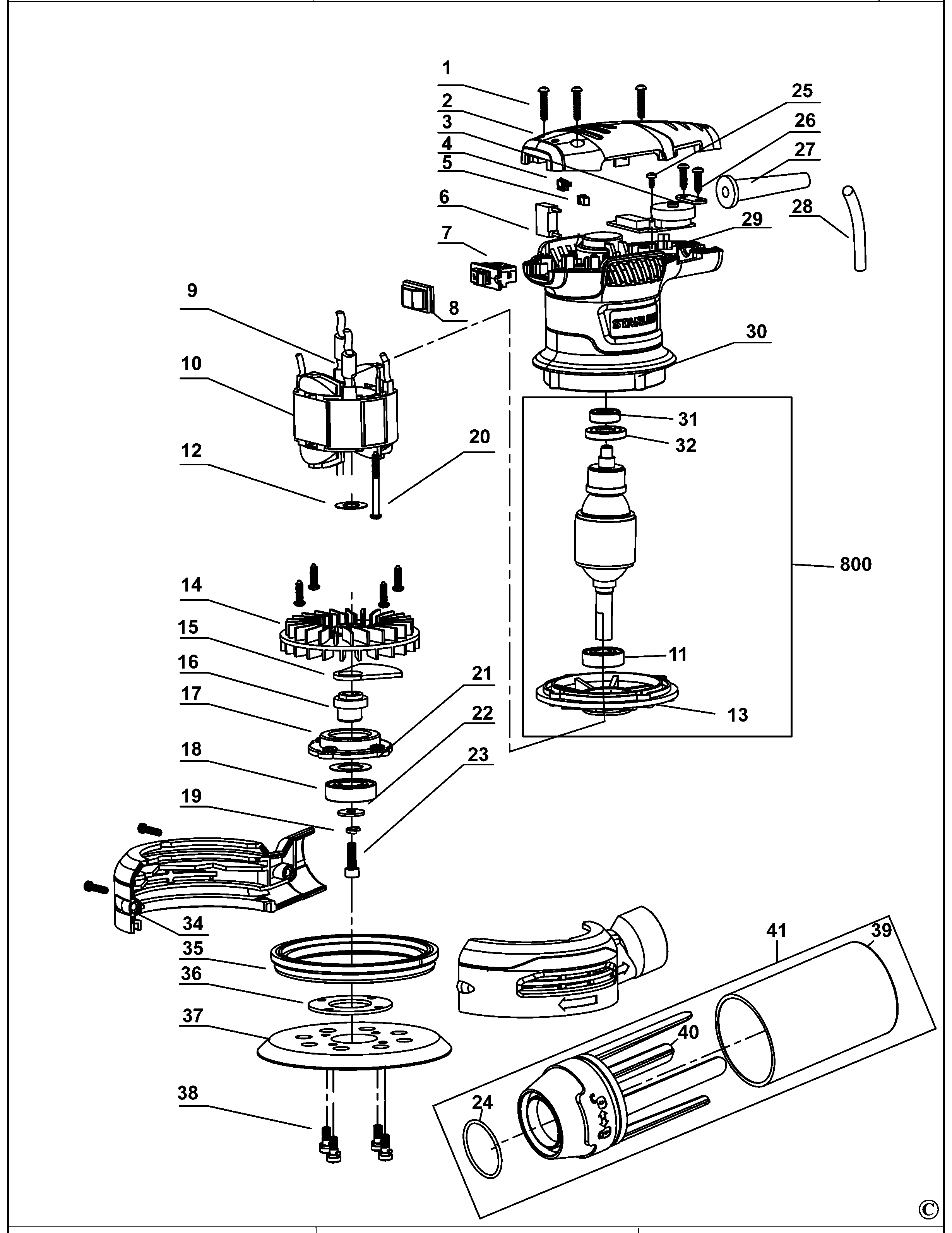

SS30 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140136-43 | 11 | SCREW | TW | |||
| 2 | 5140231-17 | 1 | COVER | TW | |||
| 3 | 5170034-12 | 1 | PCB | TW | |||
| 4 | 5140231-21 | 2 | BRUSH HOLDER | TW | |||
| 5 | 5140231-22 | 1 | BRUSH SA | TW | |||
| 6 | 5170034-13 | 1 | CAPACITOR | TW | |||
| 7 | 5140231-23 | 1 | SWITCH | TW | |||
| 8 | 5140231-24 | 1 | COVER | TW | |||
| 9 | 5170034-15 | 2 | INDUCTOR | TW | |||
| 10 | 5140231-26 | 1 | STATOR | TW | |||
| 11 | 5140187-33 | 1 | BEARING | TW | |||
| 12 | 5140231-27 | 1 | WASHER | TW | |||
| 13 | 5140231-28 | 1 | BEARING SET | TW | |||
| 14 | 5140231-29 | 1 | FAN | TW | |||
| 15 | 5140231-30 | 1 | BALANCE WEIGHT | TW | |||
| 16 | 5140231-31 | 1 | ECCENTRIC | TW | |||
| 17 | 5140231-32 | 1 | BEARING HOLDER | TW | |||
| 18 | 5170034-40 | 1 | BEARING 6002 2RS | TW | |||
| 19 | 5140231-33 | 1 | WASHER | TW | |||
| 20 | 5140231-34 | 2 | SCREW | TW | |||
| 21 | 5140231-35 | 1 | WASHER | TW | |||
| 22 | 5140231-36 | 1 | WASHER | TW | |||
| 23 | 5140231-37 | 1 | SCREW | TW | |||
| 24 | 5140173-15 | 1 | O RING | TW | |||
| 25 | 5140231-38 | 1 | SCREW | TW | |||
| 26 | 5140187-29 | 1 | CLAMP | TW | |||
| 27 | 5140187-27 | 1 | CORD PROTECTOR | TW | |||
| 28 | 5170034-19 | 1 | CORDSET | TW | |||
| 29 | 5140187-51 | 1 | BLOCK | TW | |||
| 30 | 5140231-42 | 1 | HOUSING | TW | |||
| 31 | 5140136-46 | 1 | BEARING | TW | |||
| 32 | 5140231-43 | 1 | INSULATOR | TW | |||
| 34 | 5140231-46 | 1 | HOUSING | TW | |||
| 35 | 5140231-47 | 1 | RING | TW | |||
| 36 | 5140231-48 | 1 | PLATE | TW | |||
| 37 | 5140231-49 | 1 | PLATE | TW | |||
| 38 | 5140231-50 | 4 | SCREW | TW | |||
| 39 | 5140231-51 | 1 | DUSTBAG | TW | |||
| 40 | 5140231-52 | 1 | HOLDER | TW | |||
| 41 | 5170035-19 | 1 | DUSTBAG | TW | |||
| 800 | 5170034-16 | 1 | ARMATURE SA | TW |
