STEL815 ANGLE GRINDER Type 1 | Drawings
Documents

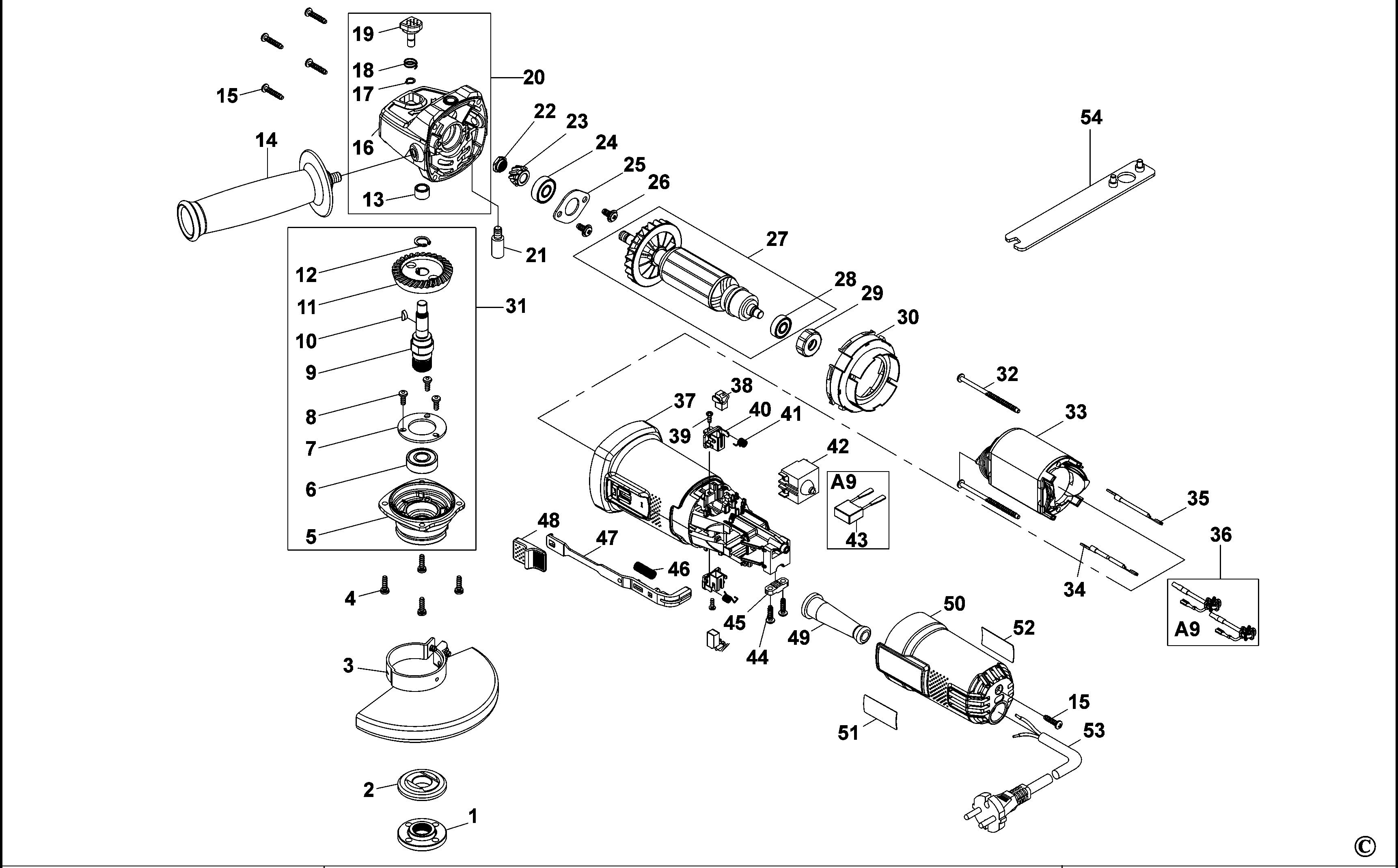

Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004525-00 | 1 | OUTER FLANGE | TW | |||
| 2 | 1004525-02 | 1 | INNER FLANGE | TW | |||
| 3 | 1004557-12 | 1 | GUARD | 100mm | TW | ||
| 4 | 1004525-06 | 4 | SCREW | TW | |||
| 5 | 1004557-13 | 1 | GEARCASE COVER | TW | |||
| 6 | 1004525-08 | 1 | BEARING | 6000 | TW | ||
| 7 | 1004525-09 | 1 | COVERPLATE | TW | |||
| 8 | 1004525-10 | 3 | SCREW | TW | |||
| 9 | 1004525-11 | 1 | SPINDLE | <2012 wk44 | TW | ||
| 9 | 90594190 | 1 | SPINDLE | >2012 wk44 | TW | ||
| 10 | 1004525-13 | 1 | WOODRUFF KEY | <2012 wk44 | TW | ||
| 11 | 1004525-14 | 1 | GEAR | TW | |||
| 12 | 1004525-15 | 1 | CIRCLIP | <2012 wk44 | TW | ||
| 13 | 1004525-16 | 1 | BEARING SINTER | TW | |||
| 14 | 90594192 | 1 | SIDE HANDLE | >2012 wk 44 | TW | ||
| 14 | 1004525-17 | 1 | SIDE HANDLE | <2012 wk44 | TW | ||
| 15 | 1004525-18 | 5 | SCREW | TW | |||
| 16 | 1004557-14 | 1 | GEARCASE | TW | |||
| 17 | 1004525-20 | 1 | CIRCLIP | TW | |||
| 18 | 5140040-64 | 1 | SPRING | TW | |||
| 19 | 1004557-00 | 1 | LOCK BUTTON | TW | |||
| 20 | 1004557-01 | 1 | GEARCASE SA | TW | |||
| 21 | 1004525-23 | 1 | SCREW | TW | |||
| 22 | 569175-00 | 1 | NUT | TW | |||
| 23 | 1004525-24 | 1 | PINION GEAR | TW | |||
| 24 | 1004525-25 | 1 | BEARING | 608 | TW | ||
| 25 | 596407-00 | 1 | COVERPLATE | TW | |||
| 26 | 596408-00 | 2 | SCREW | TW | |||
| 27 | 1004525-59 | 1 | ARMATURE SA | TW | |||
| 28 | 1004525-27 | 1 | BEARING | 607 | TW | ||
| 29 | 1004525-28 | 1 | BEARING HOLDER | TW | |||
| 30 | 90594193 | 1 | BAFFLE FAN | >2012 wk44 | TW | ||
| 30 | 1004525-29 | 1 | BAFFLE FAN | <2012 wk44 | TW | ||
| 31 | 90594191 | 1 | SPINDLE SA | >2012 wk44 | TW | ||
| 31 | 1004557-15 | 1 | SPINDLE SA | <2012 wk44 | TW | ||
| 32 | 1004525-32 | 2 | SCREW | TW | |||
| 33 | 1004525-60 | 1 | FIELD | TW | |||
| 34 | 5170000-26 | 1 | LEADWIRE | TW | |||
| 35 | 1004525-61 | 1 | LEADWIRE | TW | |||
| 36 | 1004525-36 | 2 | CHOKE | TW | |||
| 37 | 1004557-02 | 1 | HOUSING | <2012 wk44 | TW | ||
| 37 | 90594194 | 1 | HOUSING | >2012 wk44 | TW | ||
| 38 | 1004525-80 | 1 | BRUSH PAIR | 115 | TW | ||
| 39 | 1004525-39 | 2 | SCREW | TW | |||
| 40 | 1004525-40 | 2 | BRUSH HOLDER | TW | |||
| 41 | 1004525-41 | 2 | BRUSH SPRING | TW | |||
| 42 | 1004525-42 | 1 | SWITCH | TW | |||
| 43 | 5170000-27 | 1 | CAPACITOR | TW | |||
| 44 | 1004525-44 | 2 | SCREW | TW | |||
| 45 | 1004525-66 | 1 | CORDCLAMP | TW | |||
| 46 | 1004525-45 | 1 | SPRING | TW | |||
| 47 | 1004525-46 | 1 | LINKAGE SA | TW | |||
| 48 | 1004557-03 | 1 | ACTUATOR | TW | |||
| 49 | 1004525-68 | 1 | CORD PROTECTOR | TW | |||
| 50 | 1004525-49 | 1 | COVER | TW | |||
| 51 | 1004557-04 | 1 | BRAND LABEL | TW | |||
| 52 | 5170000-28 | 1 | RATING PLATE | TW | |||
| 53 | 5170000-29 | 1 | CORDSET | TW | |||
| 54 | 1004525-57 | 1 | WRENCH PIN | TW |
