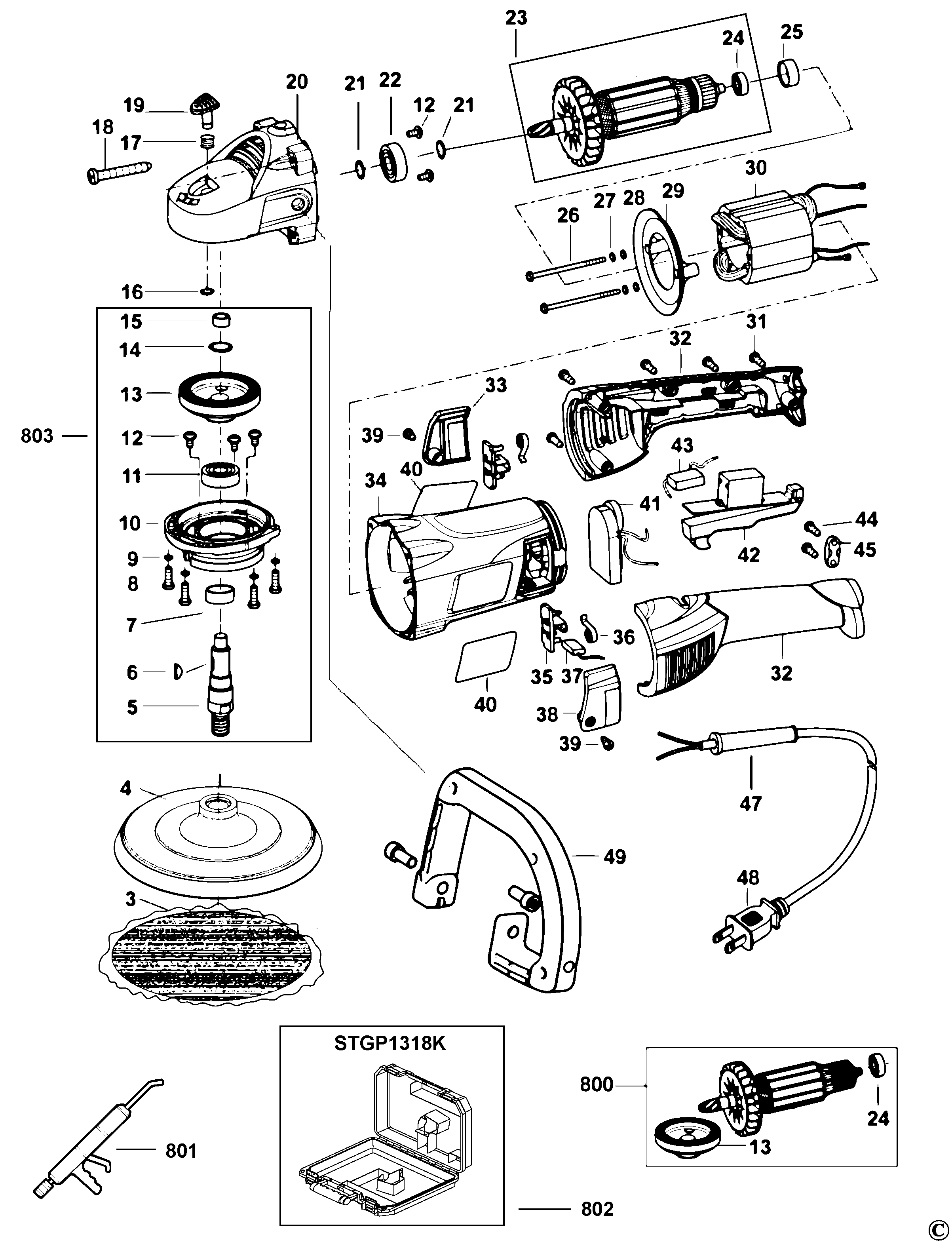

STGP1318 POLISHER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 3 | 5140090-57 | 1 | BONNET | RU | |||
| 4 | 5140090-58 | 1 | PAD | RU | |||
| 5 | 5140090-59 | 1 | SPINDLE | RU | |||
| 6 | 5140090-60 | 1 | WOODRUFF KEY | RU | |||
| 7 | 5140090-61 | 1 | SEAL | RU | |||
| 8 | 5140090-62 | 4 | SCREW | RU | |||
| 9 | 5140090-63 | 4 | WASHER | RU | |||
| 10 | 5140090-64 | 1 | HOUSING GEAR | RU | |||
| 11 | 5140090-65 | 1 | BEARING | RU | |||
| 12 | 5140090-66 | 5 | SCREW.SPECIAL | RU | |||
| 13 | 5140090-67 | 1 | GEAR | RU | |||
| 14 | 5140090-68 | 1 | RING | RU | |||
| 15 | 5140090-69 | 1 | SLEEVE BEARING | RU | |||
| 16 | 5140090-70 | 1 | RING | RU | |||
| 17 | 5140090-71 | 1 | SPRING | RU | |||
| 18 | 5140090-72 | 4 | SCREW | ST4.8 x 30 | RU | ||
| 19 | 5140090-73 | 1 | LOCK PIN | RU | |||
| 20 | 1004731-11 | 1 | HOUSING GEARBOX | RU | |||
| 21 | 5140090-75 | 2 | RING | Check Ring | RU | ||
| 22 | 5140090-76 | 1 | BEARING | RU | |||
| 23 | 1004727-63 | 1 | ARMATURE SA | 23 + 24 | RU | ||
| 24 | 5140090-79 | 1 | BEARING | RU | |||
| 25 | 5140090-80 | 1 | SLEEVE BEARING | RU | |||
| 26 | 5140090-81 | 2 | SCREW | RU | |||
| 27 | 5140090-82 | 2 | WASHER | RU | |||
| 28 | 5140090-83 | 2 | WASHER | RU | |||
| 29 | 5140090-84 | 1 | BAFFLE FAN | RU | |||
| 30 | 5140090-85 | 1 | FIELD | RU | |||
| 31 | 5140090-87 | 4 | SCREW | RU | |||
| 32 | 5170025-09 | 1 | HANDLE SA | RU | |||
| 33 | 6010358-22 | 1 | BRUSH COVER | RU | |||
| 34 | 6010358-23 | 1 | FIELD CASE | RU | |||
| 35 | 5140090-91 | 1 | BRUSH HOLDER | RU | |||
| 36 | 5140090-92 | 2 | BRUSH SPRING | RU | |||
| 37 | 5170025-10 | 1 | BRUSH PAIR | RU | |||
| 38 | 6010358-24 | 1 | BRUSH CAP | RU | |||
| 39 | 5140090-95 | 2 | SCREW | RU | |||
| 40 | 1004731-14 | 1 | RATING PLATE | RU | |||
| 41 | 5140090-54 | 1 | SWITCH VARIABLE | 220V-60HZ | RU | ||
| 43 | 5140091-01 | 1 | CAPACITOR | RU | |||
| 44 | 5140091-02 | 1 | SCREW | RU | |||
| 45 | 5140091-03 | 1 | CORD CLAMP | RU | |||
| 47 | 5140091-04 | 1 | CORD PROTECTOR | RU | |||
| 48 | 6010355-18 | 1 | CORDSET | RU | |||
| 49 | 1004731-17 | 1 | HANDLE | RU | |||
| 800 | 1004727-64 | 1 | GEAR SA | RU | |||
| 801 | 5140061-28 | 1 | GREASE | RU | |||
| 802 | 6010358-33 | 1 | KITBOX | STGP1318K | RU | ||
| 803 | 1004732-92 | 1 | SPINDLE SA | RU |
