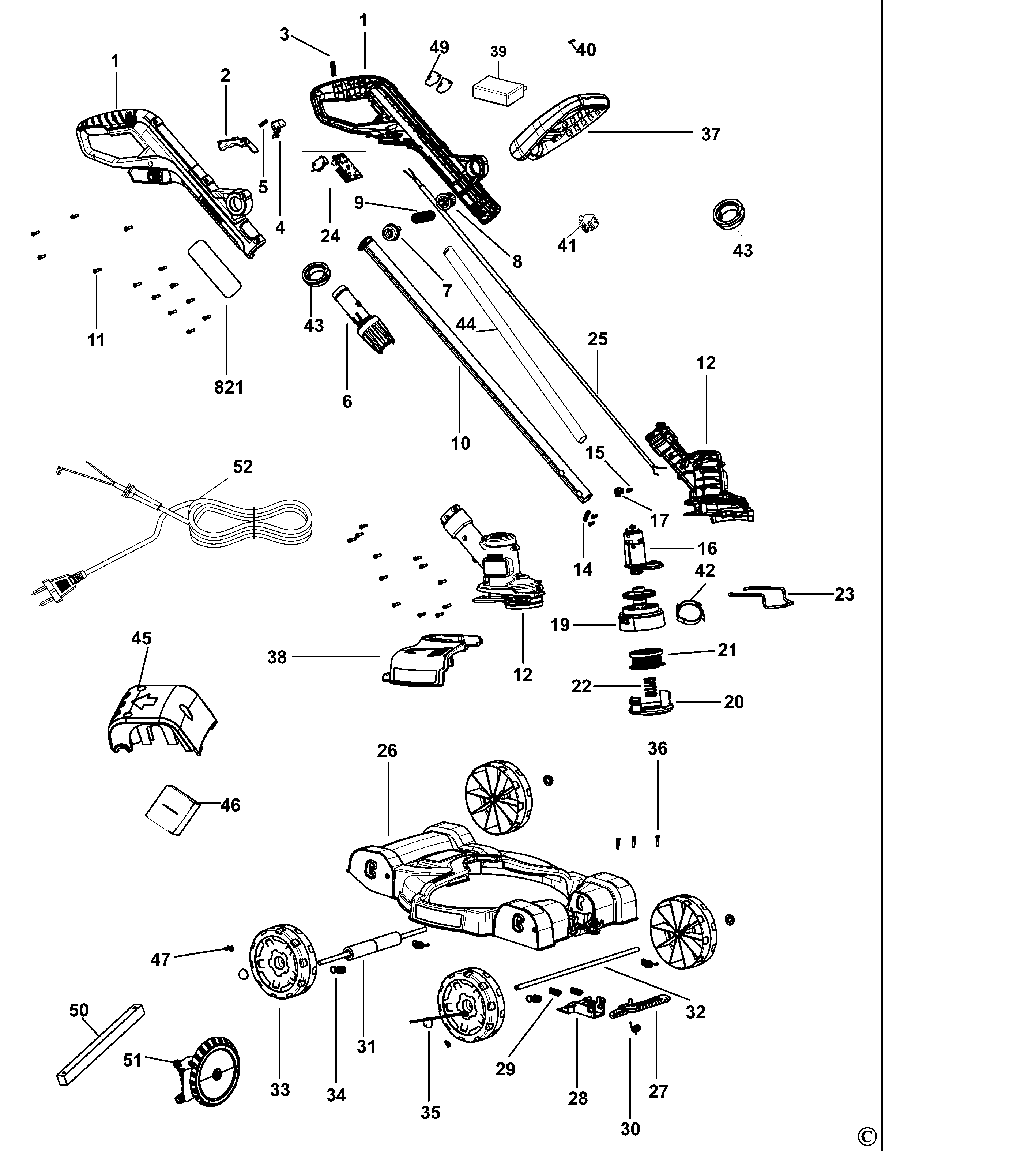

MTE912 CORDLESS MOWER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	90592457N	1	HOUSING HANDLE		JP
2	90553870	1	TRIGGER		JP
3	244053-00	1	SPRING		JP
6	90559876-01	1	COLLET		JP
7	90556608	1	BUTTON		JP
8	90554396-01N	1	BUTTON		JP
9	90559866	1	SPRING		JP
10	N703864	1	TUBE SA		JP
11	747329	27	SCREW		JP
12	90611348	1	MOTOR HOUSING SA		JP
14	329301-00	1	CORD CLAMP		JP
15	373158	4	SCREW		JP
16	N828727	1	MOTOR SA		JP
19	90563049	1	GEAR & SPINDLE SA		JP
20	385022-03N	1	COVER SPOOL		JP
21	90626046	1	SPOOL & LINE		JP
22	90566944	1	SPRING		JP
23	90592826	1	GUIDE		JP
24	90551215	1	SWITCH		JP
25	N830095	1	LEADWIRE		JP
26	90599418N	1	CUTTER DECK		JP
27	90592843N	1	PEDAL		JP
28	90592844N	1	SLIDER		JP
29	90595787	2	SPRING COMPRESSION		JP
30	90595786	1	SPRING TORSION		JP
31	N741945	1	AXLE FRONT		JP
32	N744774	1	AXLE		JP
33	598955-01	4	WHEEL		JP
34	90570075	4	SPRING		JP
35	90574276	4	WASHER LOCK		JP
36	747329	3	SCREW		JP
37	90599372N	1	HANDLE SA		JP
38	90594105-01	1	GUARD SA		JP
39	90512324	1	CAPACITOR	0.22uF	JP
40	821070	1	CORD CLAMP		JP
41	373883	1	TERMINAL BLOCK		JP
42	90611344	1	BAFFLE		JP
43	90578898	1	STATOR		JP
44	90556147	1	GUIDE		JP
45	90592842	1	COVER SA		JP
46	90600516	2	FOAM		JP
47	90574276-01	4	WASHER LOCK		JP
49	N492049	2	INSULATOR		JP
50	N747685	1	WEIGHT		JP
51	90611353	1	COVER		JP
52	N822922	1	CORDSET		JP
821	N826179	1	RATING LABEL		JP
