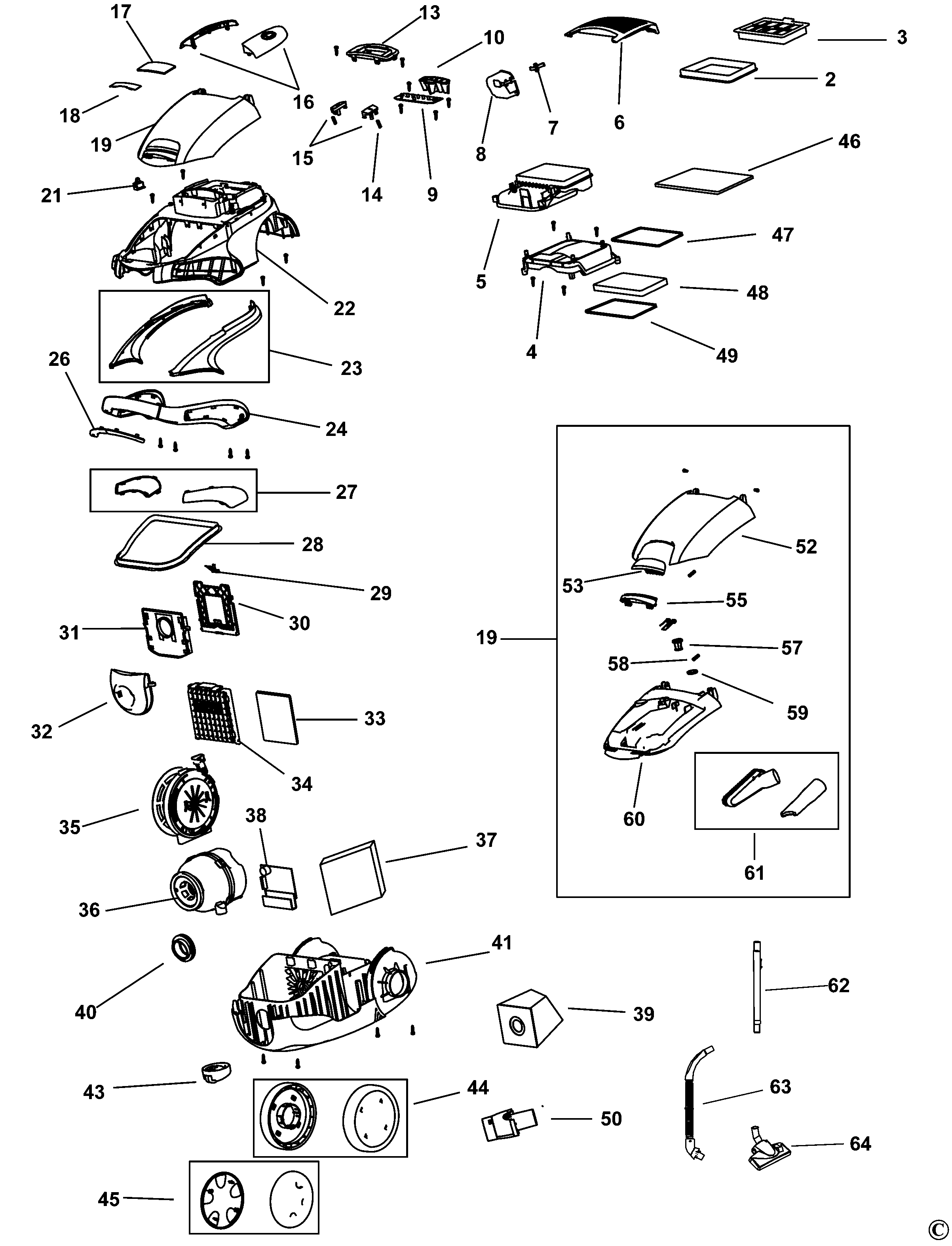

VM2035 VACUUM CLEANER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5170009-50 | 1 | SEAL | KR | |||
| 3 | 5170009-51 | 1 | FILTER | KR | |||
| 4 | 5170009-52 | 1 | MOTOR COVER | KR | |||
| 5 | 5170009-53 | 1 | MOTOR COVER | KR | |||
| 6 | 5170009-54 | 1 | COVER | KR | |||
| 7 | 5170009-55 | 1 | BOX | KR | |||
| 8 | 5170009-56 | 1 | BOX | KR | |||
| 9 | 5170009-57 | 1 | PCB | KR | |||
| 10 | 5170009-58 | 1 | TUBE | KR | |||
| 13 | 5170009-61 | 1 | BRACKET | KR | |||
| 14 | 5170009-62 | 1 | SPRING | KR | |||
| 15 | 5170009-63 | 1 | BUTTON | KR | |||
| 16 | 5170009-64 | 1 | BUTTON | KR | |||
| 17 | 5170009-65 | 1 | PLATE | KR | |||
| 18 | 5170009-66 | 1 | PLATE | KR | |||
| 19 | 5170009-67 | 1 | COVER SA | KR | |||
| 21 | 5170009-80 | 1 | SWITCH | KR | |||
| 22 | 5170009-81 | 1 | HOUSING LOWER | KR | |||
| 23 | 5170009-82 | 1 | PLATE | GREEN | VM2035G | KR | |
| 24 | 5170019-47 | 1 | HANDLE | KR | |||
| 26 | 5170019-48 | 1 | FRAME | KR | |||
| 27 | 5170019-49 | 1 | HANDLE COVER | KR | |||
| 28 | 5170009-89 | 1 | SEAL | KR | |||
| 29 | 5170009-90 | 1 | SPRING | KR | |||
| 30 | 5170009-91 | 1 | SUPPORT | KR | |||
| 31 | 5170009-92 | 1 | HOLDER | KR | |||
| 32 | 5170009-93 | 1 | SUCTION GROUP | KR | |||
| 33 | 5170009-94 | 1 | FILTER | KR | |||
| 34 | 5170009-95 | 1 | FRAME | KR | |||
| 35 | 5170009-96 | 1 | ROLLER SA | KR | |||
| 36 | 5170009-97 | 1 | MOTOR SA | KR | |||
| 37 | 5170010-17 | 1 | SILENCER | KR | |||
| 38 | 5170010-18 | 1 | PCB | KR | |||
| 39 | 5170010-19 | 1 | DUSTBAG | KR | |||
| 40 | 5170010-20 | 1 | RING | KR | |||
| 41 | 5170019-50 | 1 | HOUSING LOWER | KR | |||
| 43 | 5170010-23 | 1 | WHEEL SA | KR | |||
| 44 | 5170019-51 | 2 | WHEEL | KR | |||
| 45 | 5170019-52 | 2 | COVER | KR | |||
| 46 | 5170010-26 | 1 | FILTER | KR | |||
| 47 | 5170010-27 | 1 | SEAL | KR | |||
| 48 | 5170010-28 | 1 | FILTER | KR | |||
| 49 | 5170010-29 | 1 | SEAL | KR | |||
| 50 | 5170010-30 | 1 | INLET | KR | |||
| 52 | 5170009-69 | 1 | COVER | KR | |||
| 53 | 5170009-70 | 1 | LOCK | KR | |||
| 55 | 5170009-72 | 1 | LOCK | KR | |||
| 57 | 5170009-74 | 1 | VALVE CORE | KR | |||
| 58 | 5170009-75 | 1 | VALVE SPRING | KR | |||
| 59 | 5170009-76 | 1 | SEAL | KR | |||
| 60 | 5170009-77 | 1 | HOLDER | KR | |||
| 61 | 5170009-78 | 1 | TOOL CREVICE | KR | |||
| 62 | 5170009-46 | 1 | TUBE | KR | |||
| 63 | 5170024-31 | 1 | HOSE SA | KR | |||
| 64 | 5170009-48 | 1 | BRUSH | KR |
