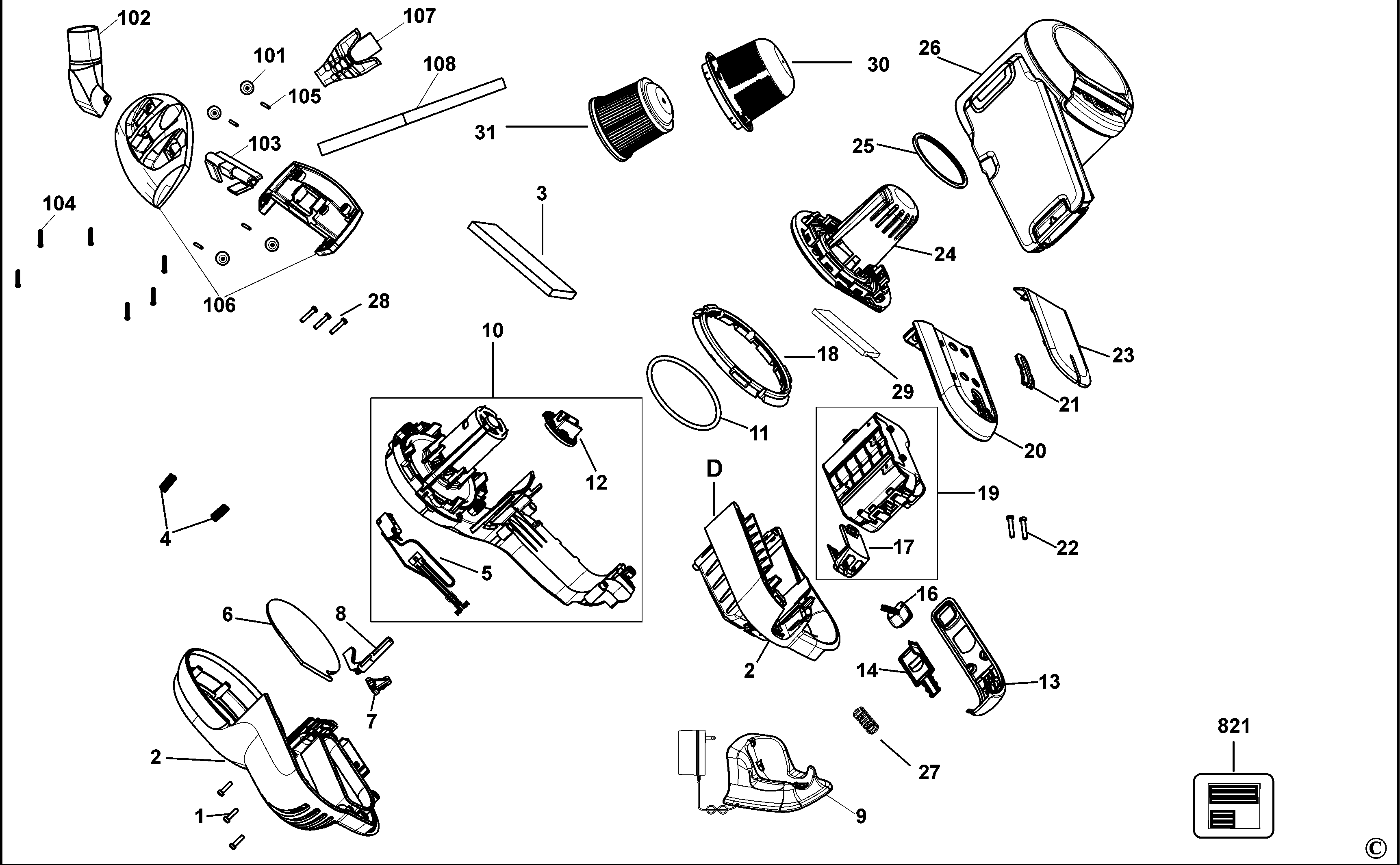

PV1820CEXT DUSTBUSTER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 143062-02 | 8 | SCREW | KR | |||
| 2 | 90600336 | 1 | HOUSING SA | KR | |||
| 3 | 90599860 | 1 | FILTER | KR | |||
| 4 | 90586028 | 2 | SPRING | KR | |||
| 5 | 90598060-01 | 1 | SWITCH & PCB SA | KR | |||
| 6 | 90595965 | 1 | FOAM | KR | |||
| 7 | 90552394-01 | 1 | CAM | KR | |||
| 8 | 90595599 | 1 | RELEASE | KR | |||
| 9 | 90635417 | 1 | CHARGER SA | KR | |||
| 10 | 90592034-02 | 1 | MOTOR & FAN | KR | |||
| 11 | 90594124 | 1 | SEAL | KR | |||
| 12 | 90594117 | 1 | CAP | KR | |||
| 13 | 90593413 | 1 | INSERT | KR | |||
| 14 | 90593414 | 1 | SLIDER | KR | |||
| 16 | 90603872 | 1 | BUTTON RELEASE | KR | |||
| 17 | 90592304 | 1 | LOCK | KR | |||
| 18 | 90600356 | 1 | MOTOR HOUSING SA | KR | |||
| 19 | N533589 | 1 | BATTERY PACK | KR | |||
| 20 | 90600833-02 | 1 | COVER | KR | |||
| 21 | 90595099 | 1 | LENS | KR | |||
| 22 | 90599861 | 2 | SCREW | KR | |||
| 23 | 90600358-02 | 1 | COVER | KR | |||
| 24 | 90600356 | 1 | MOTOR HOUSING SA | KR | |||
| 25 | 90552441 | 1 | SEAL | KR | |||
| 26 | 90595703-03 | 1 | BOWL | KR | |||
| 27 | 90556061 | 1 | SPRING | KR | |||
| 28 | 499903-00 | 3 | SCREW | KR | |||
| 29 | 90603295 | 1 | FOAM | KR | |||
| 30 | 90598100 | 1 | PRE-FILTER | KR | |||
| 31 | N566707 | 1 | FILTER | KR | |||
| 101 | 5101486-00 | 4 | ROLLER | KR | |||
| 102 | 5102320-06 | 1 | ADAPTOR | KR | |||
| 103 | 5102326-07 | 1 | BRUSH SA | KR | |||
| 104 | 5102328-00 | 6 | SCREW | KR | |||
| 105 | 5102329-00 | 4 | PIN | KR | |||
| 106 | 90581502 | 1 | HEAD SA | KR | |||
| 107 | 90567685 | 1 | ADAPTOR | KR | |||
| 108 | 5102423-01 | 1 | VACUUM TUBE SA | KR | |||
| 821 | 90635444 | 1 | RATING LABEL | KR |
