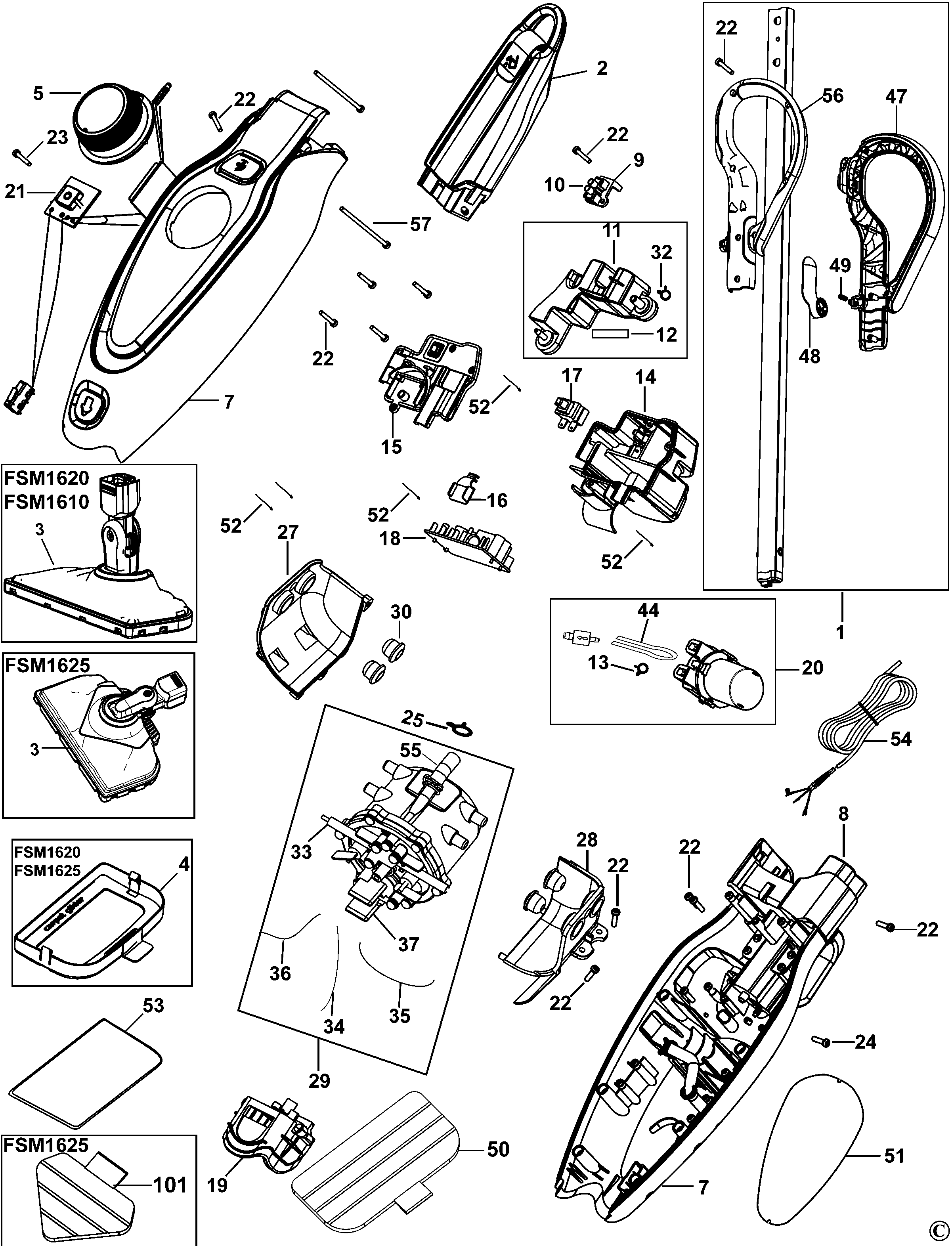

FSM1620 STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90618093 | 1 | HANDLE SA | KR | |||
| 2 | 90583444 | 1 | TANK | KR | |||
| 3 | 90618187 | 1 | TOOL FLOOR | KR | |||
| 4 | 90585491 | 1 | TOOL CARPET | KR | |||
| 5 | 90580830-01 | 1 | SELECTOR | KR | |||
| 7 | 90603626 | 1 | HOUSING SA | KR | |||
| 8 | 90581698 | 1 | COVER HOUSING | KR | |||
| 9 | 90581739 | 1 | CABLE CLAMP | KR | |||
| 10 | 90581491 | 1 | TERMINAL | KR | |||
| 11 | 90587778 | 1 | FILTER SA | KR | |||
| 12 | 90579512 | 1 | PIPE | KR | |||
| 13 | 90587265 | 1 | CLIP | KR | |||
| 14 | 90592435 | 1 | MOTOR & SWITCHBOX SA | KR | |||
| 15 | 90589100 | 1 | COVER SA | KR | |||
| 16 | 90588555 | 1 | TERMINAL BOX | KR | |||
| 17 | 90583080 | 1 | SWITCH | KR | |||
| 18 | 90577995 | 1 | PCB SA | KR | |||
| 19 | 90581422 | 1 | PARQUET FLOOR HEAD | KR | |||
| 20 | 90585121 | 1 | PUMP SA | KR | |||
| 21 | 90584432 | 1 | SWITCH & PCB SA | KR | |||
| 22 | 143062-02 | 25 | SCREW | KR | |||
| 23 | 90008440 | 1 | SCREW | KR | |||
| 24 | 90595772-01 | 6 | SCREW | KR | |||
| 25 | 90585865 | 2 | CLIP | KR | |||
| 27 | 90581691 | 1 | BRACKET LH | KR | |||
| 28 | 90581692 | 1 | BRACKET RH | KR | |||
| 29 | 90578170 | 1 | BOILER | KR | |||
| 30 | 90578187 | 4 | RUBBER | KR | |||
| 32 | 90579511 | 2 | CLIP | KR | |||
| 33 | 90582883 | 1 | FUSE SA | KR | |||
| 34 | 90582878 | 1 | LEADWIRE | KR | |||
| 35 | 90582879 | 1 | LEADWIRE | KR | |||
| 36 | 90582882 | 1 | LEADWIRE | KR | |||
| 37 | 90578183 | 1 | THERMOSTAT | KR | |||
| 44 | 90618866-01 | 1 | PIPE | KR | |||
| 47 | 90575914 | 1 | HANDLE COVER | KR | |||
| 48 | 90575917 | 1 | SIDE HANDLE | SILVER | KR | ||
| 49 | 90589896 | 1 | SPRING | KR | |||
| 50 | 90585868 | 2 | PAD SA | KR | |||
| 51 | 90633011 | 1 | RATING LABEL | KR | |||
| 52 | 492141-00 | 5 | TIE | KR | |||
| 53 | 90590822 | 1 | STAND | KR | |||
| 54 | N825256 | 1 | CORDSET | KR | |||
| 55 | 90585902 | 1 | PIPE | KR | |||
| 56 | 90575915 | 1 | HANDLE RH | KR | |||
| 57 | 90595772 | 2 | SCREW | KR |
