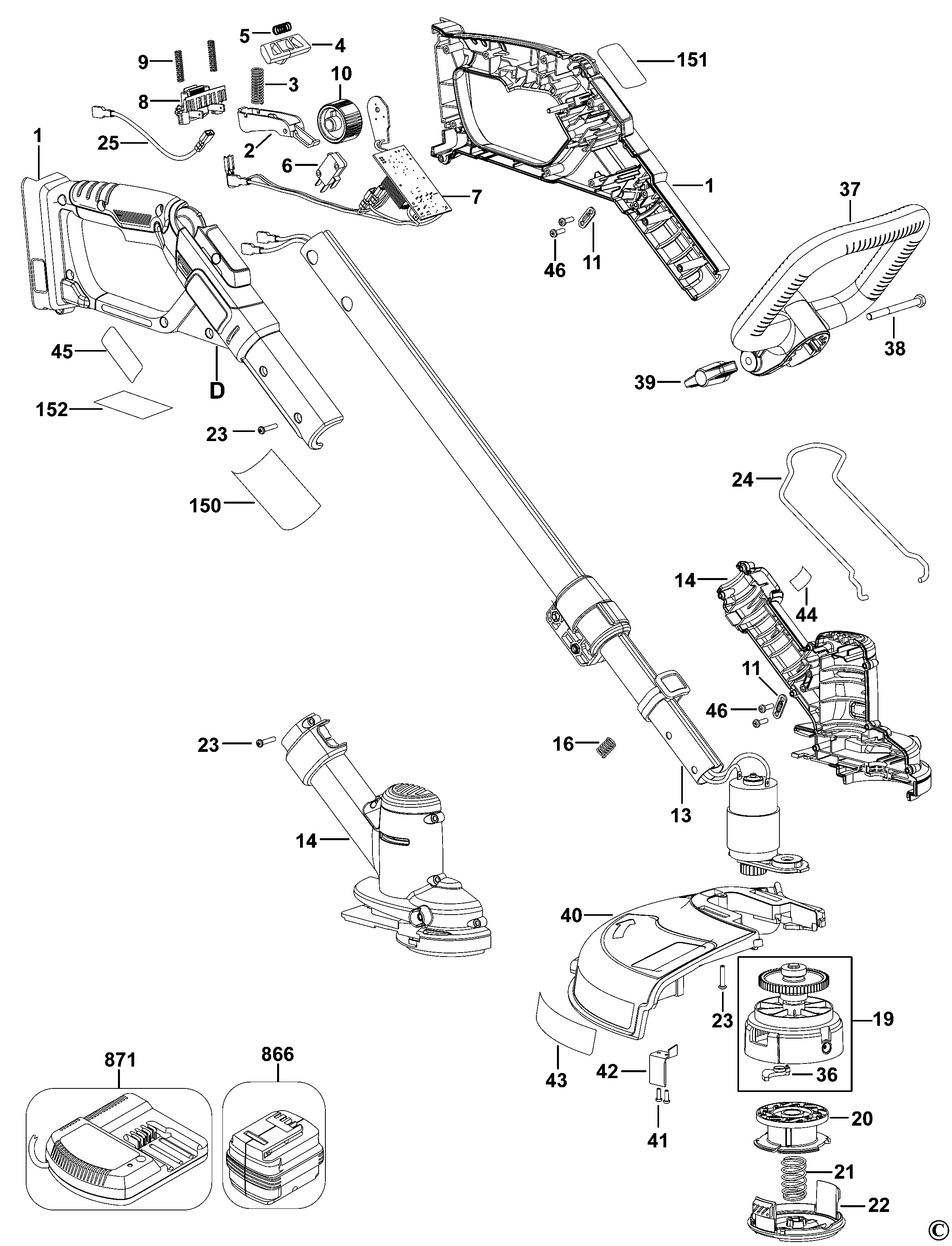

LST136 CORDLESS STRING TRIMMER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90582102 | 1 | CLAMSHELL SET | TW | |||
| 2 | 90567876 | 1 | TRIGGER | TW | |||
| 3 | 244053-00 | 1 | SPRING | TW | |||
| 4 | 90572573 | 1 | ACTUATOR | TW | |||
| 5 | 90548007 | 1 | SPRING | TW | |||
| 6 | 90569937 | 1 | SWITCH | TW | |||
| 7 | 90576509 | 1 | PCB SA | TW | |||
| 8 | 90620627 | 1 | TERMINAL BLOCK | TW | |||
| 9 | 90516498 | 2 | SPRING | TW | |||
| 10 | 90577120 | 1 | WHEEL SPEED | TW | |||
| 11 | 329301-00 | 2 | CORD CLAMP | TW | |||
| 13 | 90582104 | 1 | HANDLE TUBE SA | INCL MOTOR | TW | ||
| 14 | 90582103 | 1 | CLAMSHELL SET | TW | |||
| 16 | 90550451 | 1 | SPRING | TW | |||
| 19 | 90559541-03 | 1 | GEAR & SPINDLE | TW | |||
| 20 | 90564281 | 1 | SPOOL & LINE | TW | |||
| 21 | 90566944 | 1 | SPRING | TW | |||
| 22 | 385022-03 | 1 | COVER SPOOL | TW | |||
| 23 | 747329 | 19 | SCREW | TW | |||
| 24 | 90571331 | 1 | GUIDE | TW | |||
| 25 | 90576510 | 1 | LEAD SA | TW | |||
| 36 | 90567077 | 1 | ACTUATOR | TW | |||
| 37 | 90580098 | 1 | HANDLE | TW | |||
| 38 | 90580088 | 1 | BOLT | TW | |||
| 39 | 90570279-01 | 1 | WING NUT | TW | |||
| 40 | 90567871 | 1 | GUARD | TW | |||
| 41 | 681914-00 | 2 | SCREW | TW | |||
| 42 | 90559117 | 1 | BLADE | TW | |||
| 43 | 90562021 | 1 | WARNING LABEL | TW | |||
| 44 | 90573894 | 1 | LABEL | TW | |||
| 45 | 90573659 | 1 | BRAND LABEL | TW | |||
| 46 | 370748 | 4 | SCREW | TW | |||
| 150 | 90573895 | 1 | WARNING LABEL | TW | |||
| 151 | 90575882 | 1 | LABEL | TW | |||
| 152 | 90634090 | 1 | RATING LABEL | TW | |||
| 866 | 90610690 | 1 | BATTERY | TW | |||
| 871 | 90616337-04 | 1 | CHARGER 36V | TW |
