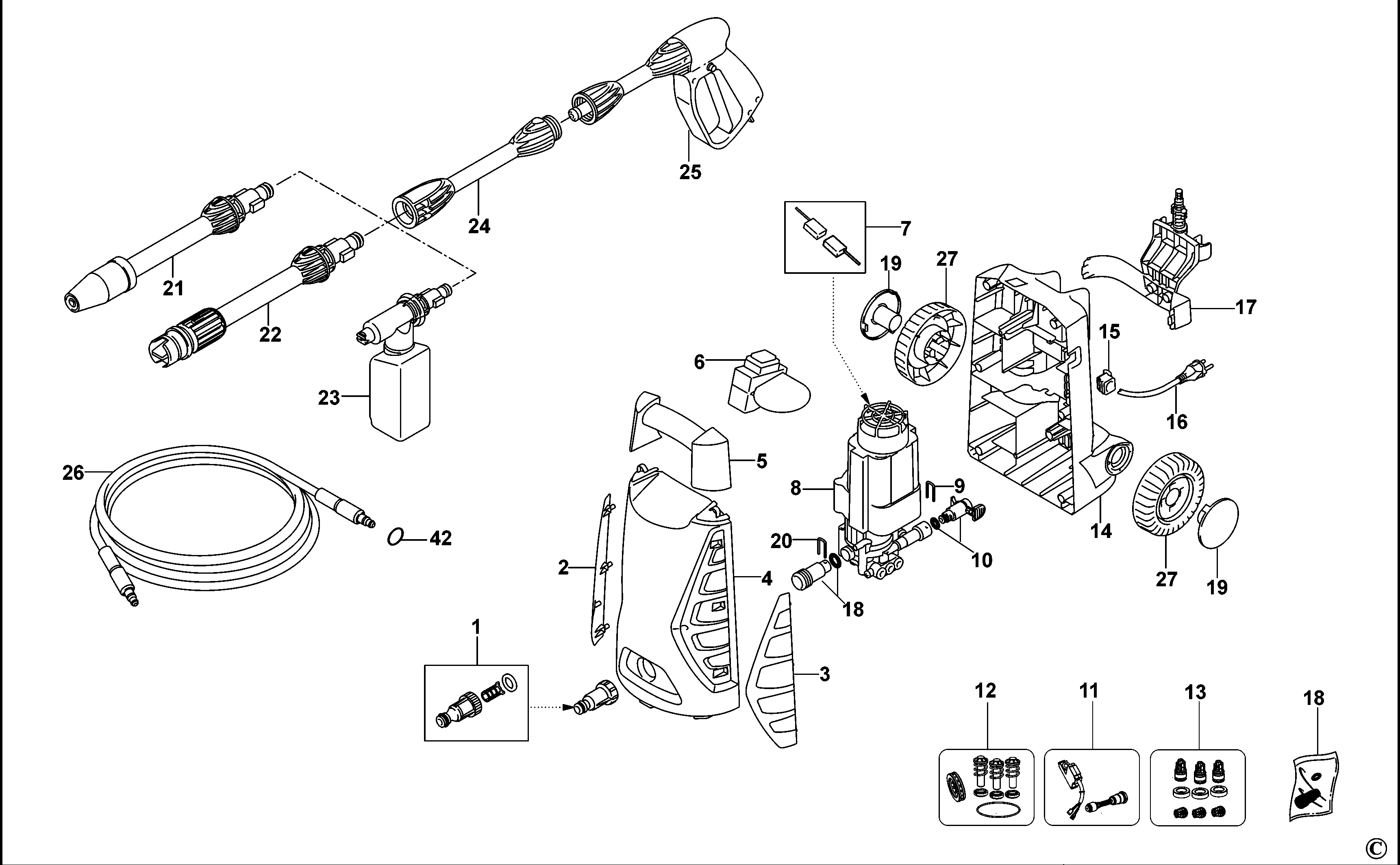

PW1470TD PRESSURE WASHER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1004455-15 | 1 | FILTER & INLET KIT | A9 | |||
| 2 | 1004512-01 | 1 | DOOR | A9 | |||
| 3 | 1004512-02 | 1 | DOOR | A9 | |||
| 4 | 1004512-03 | 1 | HOUSING FRONT | A9 | |||
| 5 | 1004512-04 | 1 | Handle | A9 | |||
| 6 | 1004512-05 | 1 | SWITCH | A9 | |||
| 7 | 1004512-06 | 1 | BRUSH KIT | A9 | |||
| 8 | 1004512-24 | 1 | MOTOR & PUMP SA 240V | A9 | |||
| 9 | 1004512-08 | 1 | FORK | A9 | |||
| 10 | 1004512-09 | 1 | OUTLET | A9 | |||
| 11 | 1004512-10 | 1 | SWITCH KIT 220V | A9 | |||
| 12 | 1004512-11 | 1 | PISTONS & SEALS KIT | A9 | |||
| 13 | 1004512-12 | 1 | VALVES & SEALS KIT | A9 | |||
| 14 | 1004512-13 | 1 | BASE | A9 | |||
| 15 | 1004455-07 | 1 | GLAND | A9 | |||
| 16 | 1004455-13 | 1 | CORDSET | A9 | |||
| 17 | 1004512-16 | 1 | CARRIER | A9 | |||
| 18 | 1004512-17 | 1 | SUCTION GROUP | A9 | |||
| 19 | 1004512-25 | 2 | CAP | A9 | |||
| 20 | 1004512-19 | 1 | FORK | A9 | |||
| 21 | 1004512-20 | 1 | SPRAY SA | A9 | |||
| 22 | 1004455-22 | 1 | SPRAY SA | A9 | |||
| 23 | 1004512-21 | 1 | TANK | A9 | |||
| 24 | 1004455-23 | 1 | EXTENSION | A9 | |||
| 25 | 1004455-24 | 1 | ADJUSTER HANDLE | A9 | |||
| 26 | 1004512-26 | 1 | HOSE SA | A9 | |||
| 26 | 1004512-69 | 1 | HOSE SA, REINFORCED | 5m | A9 | ||
| 27 | 1004512-67 | 2 | WHEEL | A9 | |||
| 30 | 1004512-19 | 1 | FORK | A9 | |||
| 31 | 1004512-78 | 1 | CYLINDER HEAD | A9 | |||
| 32 | 1004512-10 | 1 | SWITCH KIT 220V | A9 | |||
| 33 | 1004512-12 | 1 | VALVES & SEALS KIT | A9 | |||
| 34 | 1004512-79 | 1 | NUT | A9 | |||
| 35 | 1004512-11 | 1 | PISTONS & SEALS KIT | A9 | |||
| 36 | 1004512-80 | 1 | CYLINDER | A9 | |||
| 37 | 1004512-81 | 1 | VALVE | A9 | |||
| 38 | 1004512-17 | 1 | SUCTION GROUP | A9 | |||
| 39 | 1004512-82 | 1 | MICRO SWITCH | A9 | |||
| 40 | 1004512-06 | 1 | BRUSH KIT | A9 | |||
| 41 | 1004512-84 | 1 | MOTOR | A9 | |||
| 42 | 5170000-32 | 1 | O RING | A9 |
