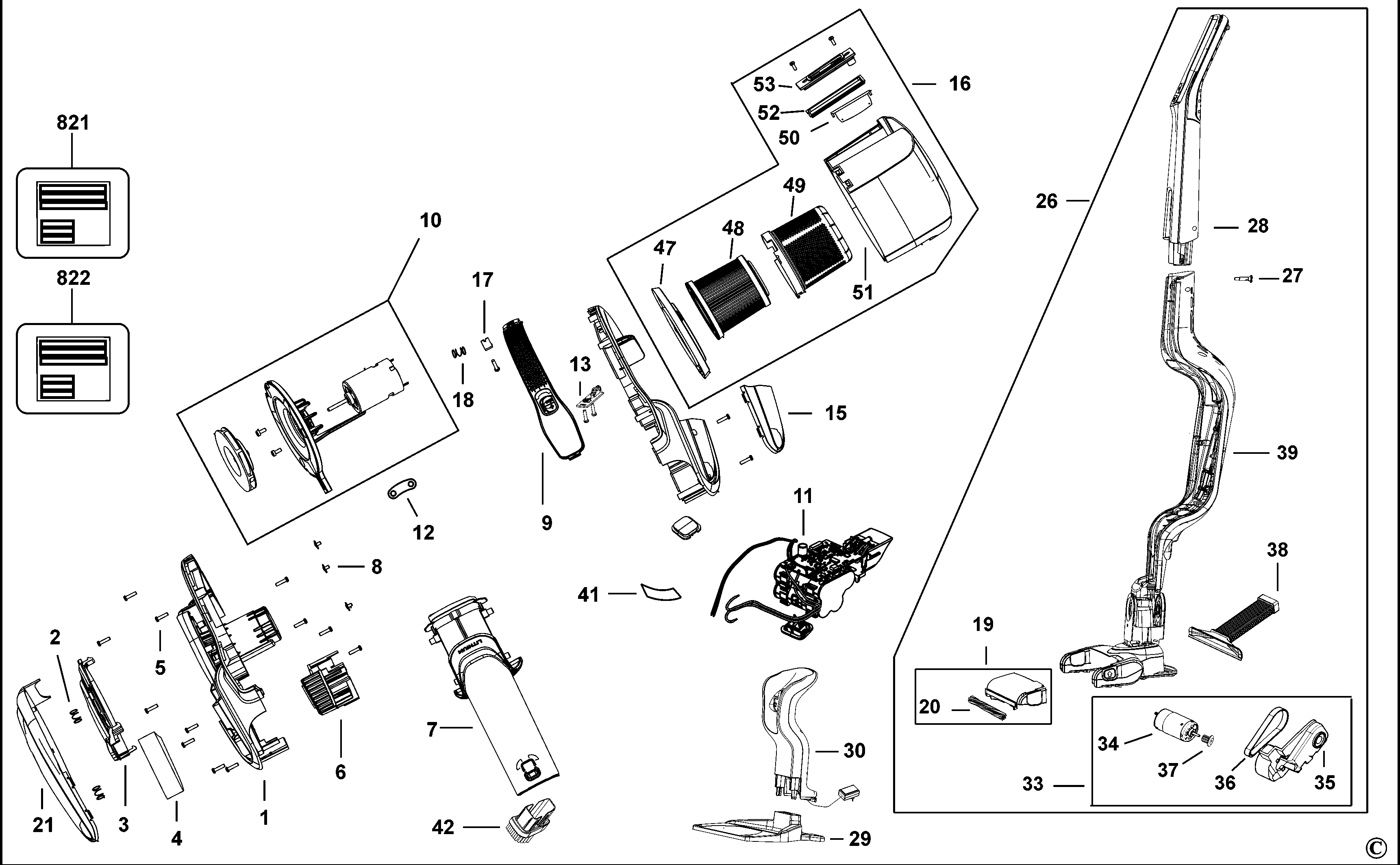

CS1830V STICK-VAC Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90621185-11 | 1 | HOUSING SA | A9 | |||
| 2 | 90627528 | 2 | SPRING | A9 | |||
| 3 | 90606955-06 | 1 | LEVER RELEASE | A9 | |||
| 4 | 90605950 | 1 | EXHAUST | A9 | |||
| 5 | 90571477-01 | 16 | SCREW | A9 | |||
| 6 | 90605947-06 | 1 | VENT | A9 | |||
| 7 | 90621181-11 | 1 | NOZZLE | A9 | |||
| 8 | 90627524 | 3 | SCREW | A9 | |||
| 9 | 90632373 | 1 | HANDLE | A9 | |||
| 10 | 90621178-07 | 1 | MOTOR SA | A9 | |||
| 11 | 90628055-04 | 1 | BATTERY CELL | A9 | |||
| 12 | 90626425 | 1 | RETAINER | A9 | |||
| 13 | 90620562-01 | 1 | PCB | A9 | |||
| 15 | 90620997 | 1 | COVER | A9 | |||
| 16 | N925198 | 1 | BOWL | A9 | |||
| 17 | 90624626 | 1 | RELEASE | A9 | |||
| 18 | 90627526 | 1 | SPRING | A9 | |||
| 19 | 90608572-01 | 1 | HEAD SA | A9 | |||
| 20 | 90600922 | 1 | BAR SA | A9 | |||
| 21 | 90614011 | 1 | COVER | A9 | |||
| 26 | 90621194-05 | 1 | CHASSIS SA | A9 | |||
| 27 | 90601722 | 1 | SCREW | A9 | |||
| 28 | 90603258-17 | 1 | HANDLE SA | A9 | |||
| 29 | 90602829-01 | 1 | BASE PLATE | A9 | |||
| 30 | 90621193-06 | 1 | CHARGER SA | A9 | |||
| 33 | N925414 | 1 | MOTOR SA & MOUNT | A9 | |||
| 34 | 90613453-07 | 1 | MOTOR SA 12V | A9 | |||
| 35 | 90591875 | 1 | MOUNT | A9 | |||
| 36 | 90592224 | 1 | BELT DRIVE | A9 | |||
| 37 | 90592211-01 | 1 | GEAR | A9 | |||
| 38 | 90608567 | 1 | DUCT | A9 | |||
| 39 | N876221 | 1 | CHASSIS SA | A9 | |||
| 41 | 90624380 | 1 | PCB SA | A9 | |||
| 42 | 90627690 | 1 | BRUSH | A9 | |||
| 47 | N519708 | 1 | FRAME | A9 | |||
| 48 | N663239 | 1 | FILTER | A9 | |||
| 49 | 90606057 | 1 | PRE-FILTER | A9 | |||
| 50 | 90615870 | 1 | FLAP | A9 | |||
| 51 | 90609645 | 1 | BOWL | A9 | |||
| 52 | 90624959 | 1 | SEAL | A9 | |||
| 53 | 90617324-01 | 1 | PLATE | A9 | |||
| 821 | 90642228 | 1 | RATING LABEL | A9 | |||
| 822 | 90642229 | 1 | RATING LABEL | A9 |
