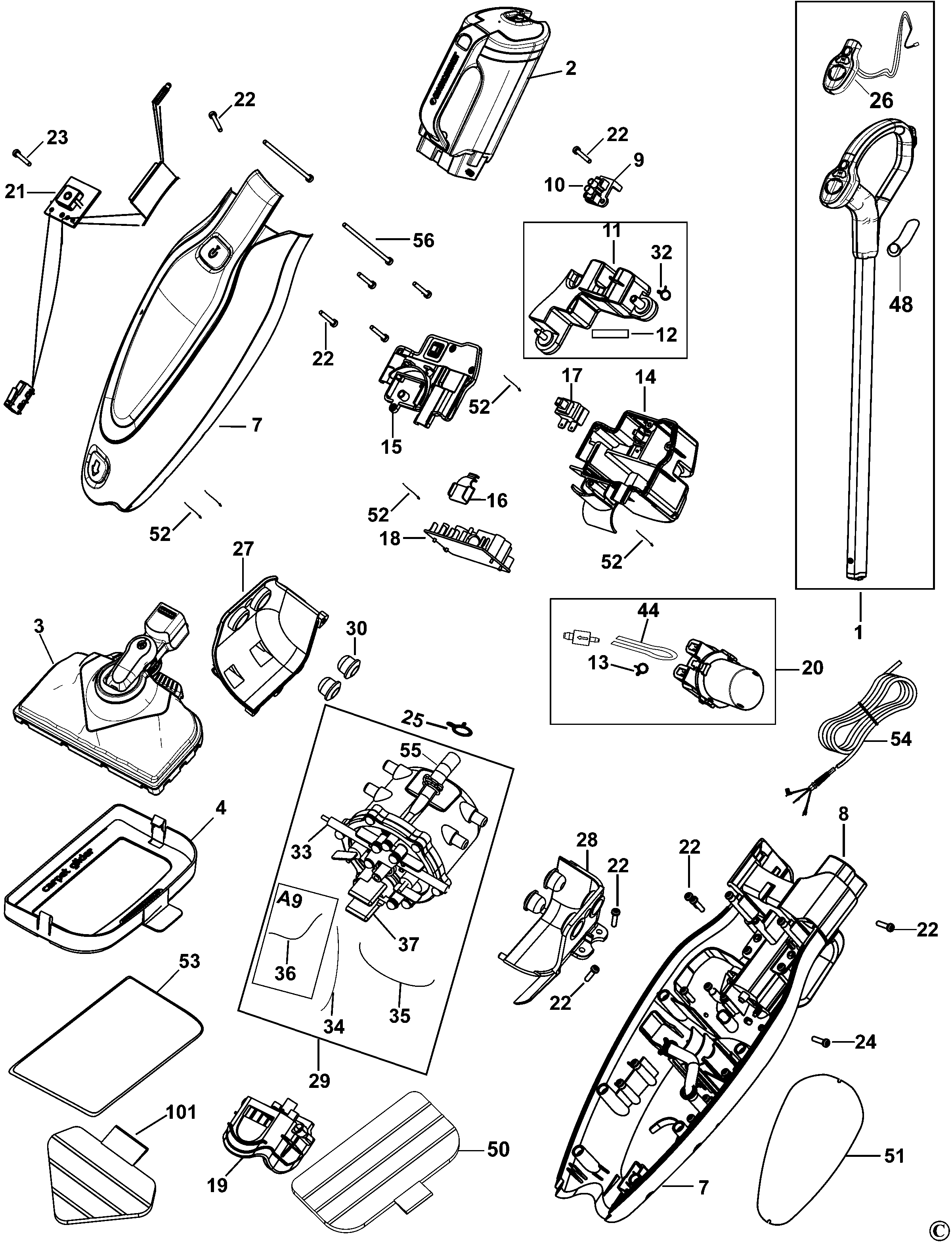

FSM1630 STEAM MOP Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90580111-00 | 1 | HANDLE SA | TW | |||
| 2 | 90583444 | 1 | TANK | TW | |||
| 3 | 90618186 | 1 | HEAD SA | TW | |||
| 4 | 90585491 | 1 | TOOL CARPET | TW | |||
| 7 | 90603627-03 | 1 | HOUSING SA | TW | |||
| 8 | 90581698-01 | 1 | COVER HOUSING | TW | |||
| 9 | 90581739 | 1 | CABLE CLAMP | TW | |||
| 11 | 90587778 | 1 | FILTER SA | TW | |||
| 12 | 90579512 | 1 | PIPE | TW | |||
| 13 | 90587265 | 1 | CLIP | TW | |||
| 14 | 90592435 | 1 | MOTOR & SWITCHBOX SA | TW | |||
| 15 | 90589100 | 1 | COVER SA | TW | |||
| 16 | 90588555 | 1 | TERMINAL BOX | TW | |||
| 17 | 90583080 | 1 | SWITCH | TW | |||
| 18 | 90577995 | 1 | PCB SA | TW | |||
| 19 | 90581422 | 1 | PARQUET FLOOR HEAD | TW | |||
| 20 | 90585121 | 1 | PUMP SA | TW | |||
| 21 | 90592975 | 1 | SWITCH & PCB SA | TW | |||
| 22 | 143062-02 | 27 | SCREW | TW | |||
| 23 | 90008440 | 1 | SCREW | TW | |||
| 24 | 90595772-01 | 6 | SCREW | TW | |||
| 25 | 90585865 | 2 | CLIP | TW | |||
| 26 | 90584649 | 1 | CONTROL PANEL | TW | |||
| 27 | 90581691 | 1 | BRACKET LH | TW | |||
| 28 | 90581692 | 1 | BRACKET RH | TW | |||
| 29 | 90578170-01 | 1 | BOILER | TW | |||
| 30 | 90578187 | 4 | RUBBER | TW | |||
| 32 | 90579511 | 2 | CLIP | TW | |||
| 33 | 90582883-01 | 1 | FUSE SA | TW | |||
| 34 | 90582878-01 | 1 | LEADWIRE | 18AWG WHITE,40mm | TW | ||
| 35 | 90582879-01 | 1 | LEADWIRE | 18AWG WHITE,215mm | TW | ||
| 37 | 90578183 | 1 | THERMOSTAT | TW | |||
| 44 | 90618866-01 | 1 | PIPE | TW | |||
| 48 | 90580120 | 1 | HOOK | TW | |||
| 50 | 90585868 | 1 | PAD SA | TW | |||
| 51 | 90601410 | 1 | RATING LABEL | TW | |||
| 52 | 492141-00 | 5 | TIE | TW | |||
| 53 | 90590822 | 1 | STAND | TW | |||
| 54 | 90583744-00 | 1 | CORDSET | TW | |||
| 55 | 90585902 | 1 | PIPE | TW | |||
| 56 | 90595772 | 2 | SCREW | TW | |||
| 101 | 90586861-01 | 1 | CLEANING PAD | TW |
