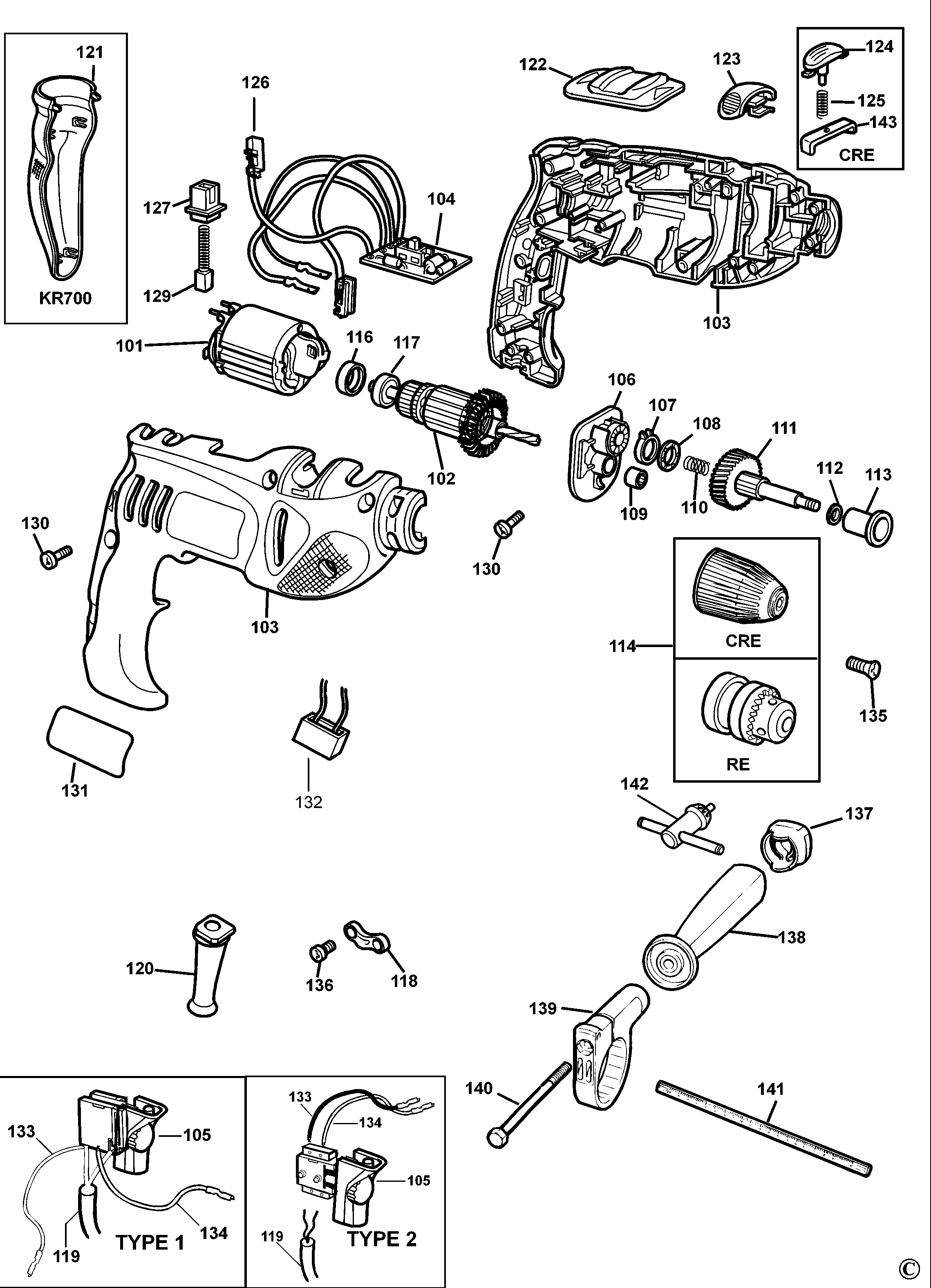

KR650CRE DRILL Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 376912-40 | 1 | FIELD SA | KR700CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR580CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR650RE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR650CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR700RE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR700CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR580CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR650RE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR650CRE | TW | ||
| 101 | 376912-40 | 1 | FIELD SA | KR700RE | TW | ||
| 101 | 376912-41 | 1 | FIELD SA | KR700RE | TW | ||
| 102 | 000000-00 | 1 | NO LONGER AVAILABLE | KR700RE | TW | ||
| 102 | 580813-02 | 1 | ARMATURE SA | KR700RE-KR700CRE | TW | ||
| 102 | 580813-02 | 1 | ARMATURE SA | EXCEPT KR700RE/CRE | TW | ||
| 103 | 374275-05 | 1 | CLAMSHELL SET | KR700RE | TW | ||
| 103 | 374250-06 | 1 | CLAMSHELL SET | KR650RE | TW | ||
| 103 | 374250-07 | 1 | CLAMSHELL SET | KR650CRE | TW | ||
| 103 | 374250-07 | 1 | CLAMSHELL SET | KR580CRE | TW | ||
| 103 | 000000-00 | 1 | NO LONGER AVAILABLE | KR700RE | TW | ||
| 103 | 374275-06 | 1 | CLAMSHELL SET | KR700CRE | TW | ||
| 104 | 374217-01 | 1 | PCB SA | TW | |||
| 104 | 000000-00 | 1 | NO LONGER AVAILABLE | KR700RE | TW | ||
| 105 | 000000-00 | 1 | NO LONGER AVAILABLE | KR700RE | TW | ||
| 105 | 375412-02 | 1 | SWITCH | TW | |||
| 106 | 374216-00 | 1 | GEARCASE SA | TW | |||
| 107 | 374189-00 | 1 | SELECTOR | TW | |||
| 108 | 892261 | 1 | BEARING | TW | |||
| 109 | 330004-18 | 1 | BEARING | TW | |||
| 110 | 821986 | 1 | SPRING | TW | |||
| 111 | 377646-01 | 1 | SPINDLE & GEAR SA | KR650RE | TW | ||
| 111 | 377646-01 | 1 | SPINDLE & GEAR SA | KR700RE | TW | ||
| 111 | 377646-02 | 1 | SPINDLE & GEAR SA | KR650CRE | TW | ||
| 111 | 377646-02 | 1 | SPINDLE & GEAR SA | KR700CRE | TW | ||
| 111 | 377646-02 | 1 | SPINDLE & GEAR SA | KR580CRE | TW | ||
| 112 | 374194-00 | 1 | WASHER THRUST | TW | |||
| 113 | 374193-00 | 1 | BEARING | TW | |||
| 114 | 330033-23 | 1 | CHUCK 13MM | KR650RE | TW | ||
| 114 | 330033-23 | 1 | CHUCK 13MM | KR700RE | TW | ||
| 114 | 583096-00 | 1 | CHUCK SA | KR650CRE | TW | ||
| 114 | 583096-00 | 1 | CHUCK SA | KR700CRE | TW | ||
| 114 | 583096-00 | 1 | CHUCK SA | KR580CRE | TW | ||
| 116 | 812970 | 1 | HOLDER,RUBBER | TW | |||
| 117 | 330003-02 | 1 | BEARING | TW | |||
| 118 | 329301-00 | 1 | CORD CLAMP | TW | |||
| 119 | 330113-05 | 1 | CORDSET | KR700RE | TW | ||
| 119 | 808704-12 | 1 | CORDSET | TW | |||
| 120 | 320785 | 1 | CORD PROTECTOR | KR700RE | TW | ||
| 120 | 770236 | 1 | PROTECTOR | TW | |||
| 121 | 374278-00 | 1 | GRIP | KR700CRE-KR700RE | TW | ||
| 122 | 374218-02 | 1 | ACTUATOR | TW | |||
| 123 | 374226-00 | 1 | ACTUATOR | TW | |||
| 124 | 374270-00 | 1 | BUTTON SA | KR580CRE | TW | ||
| 124 | 374270-00 | 1 | BUTTON SA | KR700CRE | TW | ||
| 124 | 374270-00 | 1 | BUTTON SA | KR650CRE | TW | ||
| 125 | 748158 | 1 | SPRING | KR650CRE | TW | ||
| 125 | 748158 | 1 | SPRING | KR700CRE | TW | ||
| 127 | 572462-00 | 1 | BRUSHBOX 115V | KR700RE | TW | ||
| 127 | 875735 | 2 | INSERT | TW | |||
| 129 | 570544-00 | 2 | BRUSH & SPRING | TW | |||
| 130 | 809961 | 2 | SCREW | TW | |||
| 131 | 374186-08 | 1 | BRAND LABEL | KR700RE | TW | ||
| 131 | 374186-07 | 1 | BRAND LABEL | KR650CRE | TW | ||
| 131 | 374186-10 | 1 | BRAND LABEL | KR580CRE | TW | ||
| 131 | 375148-06 | 1 | BRAND LABEL | KR700RE | TW | ||
| 131 | 374186-06 | 1 | BRAND LABEL | KR650RE | TW | ||
| 131 | 374186-09 | 1 | BRAND LABEL | KR700CRE | TW | ||
| 132 | 807745 | 1 | CAPACITOR | TW | |||
| 133 | 374213-00 | 1 | LEAD RED | TW | |||
| 133 | 571457-00 | 1 | LEAD RED 115V | KR700RE | TW | ||
| 134 | 571457-01 | 1 | LEAD BLACK 115V | KR700RE | TW | ||
| 134 | 374214-00 | 1 | LEAD BLACK | TW | |||
| 135 | 805434 | 1 | SCREW.SPECIAL | CRE | TW | ||
| 135 | 373793 | 1 | SCREW LEFT 5X21 | RE | TW | ||
| 136 | 821057 | 1 | SCREW | No 6 x 12.7mm | TW | ||
| 137 | 376554-04 | 1 | CAP (ORANGE) | TW | |||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR650RE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR650CRE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR700RE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR700CRE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR580CRE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR650RE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR650CRE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR700RE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR700CRE | TW | ||
| 138 | 376555-05 | 1 | HANDLE & CAP SA | KR580CRE | TW | ||
| 139 | 376552-03 | 1 | CLAMP | TW | |||
| 140 | 813918 | 1 | SCREW | TW | |||
| 141 | 372814-00 | 1 | DEPTH STOP | TW | |||
| 142 | 330034-07 | 1 | CHUCK KEY | KR650RE | TW | ||
| 142 | 330034-07 | 1 | CHUCK KEY | KR700RE | TW | ||
| 143 | 570593-00 | 1 | SUPPORT | KR700CRE | TW | ||
| 143 | 570593-00 | 1 | SUPPORT | KR650CRE | TW |
