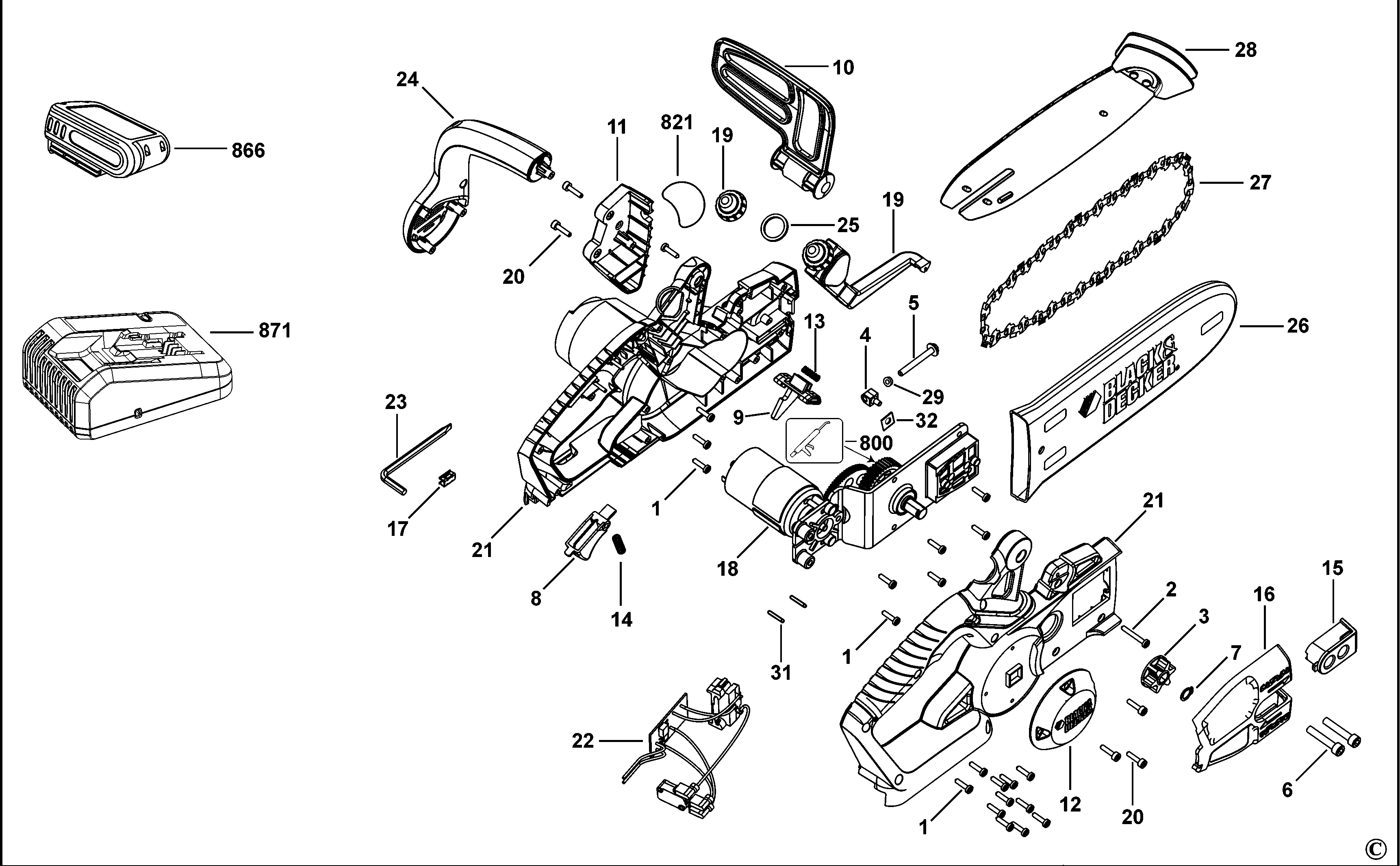

GKC1820L2N CHAINSAW Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330019-03 | 21 | SCREW | JP | |||
| 2 | 330019-05 | 1 | SCREW | JP | |||
| 3 | N597159 | 1 | SPROCKET | JP | |||
| 4 | N597160 | 1 | CLAMP | JP | |||
| 5 | N601071 | 1 | SCREW | JP | |||
| 6 | 90507689 | 2 | SCREW | JP | |||
| 7 | 624521-00 | 1 | LOCKING RING | JP | |||
| 8 | 90550462 | 1 | TRIGGER | JP | |||
| 9 | 90502128 | 1 | ACTUATOR | JP | |||
| 10 | 90502132 | 1 | GUARD | JP | |||
| 11 | 90502134 | 1 | ANTI KICK BACK | JP | |||
| 12 | 90502135-01 | 1 | COVER | JP | |||
| 13 | 90517008-01 | 1 | SPRING | JP | |||
| 14 | 90502137 | 1 | SPRING | JP | |||
| 15 | 90502141 | 1 | CLAMP | JP | |||
| 16 | 90502142 | 1 | COVER | JP | |||
| 17 | 90502143 | 1 | CLIP | JP | |||
| 18 | 90502145-02 | 1 | TRANSMISSION SA | JP | |||
| 19 | 90502171 | 1 | TANK | JP | |||
| 20 | 90502469 | 5 | SCREW | Taptite M3.63 X 16 | JP | ||
| 21 | 90567910-01N | 1 | CLAMSHELL SET | JP | |||
| 22 | 90563031 | 1 | SWITCH SA | JP | |||
| 23 | 90502723 | 1 | HEX KEY | JP | |||
| 24 | N677167 | 1 | HANDLE SA | JP | |||
| 25 | 90504642 | 1 | SEAL | JP | |||
| 26 | 90517719-01 | 1 | SHEATH | JP | |||
| 27 | N603750 | 1 | CHAIN | JP | |||
| 28 | 90561464-01 | 1 | BAR CHAIN | JP | |||
| 29 | 90519433 | 1 | WASHER | JP | |||
| 31 | 5106169-00 | 1 | PIN | JP | |||
| 32 | N625741 | 1 | CLAMP | JP | |||
| 800 | 583534-00 | 1 | GREASE | 50 GRAMS - NYE RHEOLUB 380G1 | JP | ||
| 821 | N681622 | 1 | RATING LABEL | JP | |||
| 866 | BL2018-JP | 2 | BATTERY PACK | JP | |||
| 871 | N520989 | 1 | CHARGER SA | JP |
