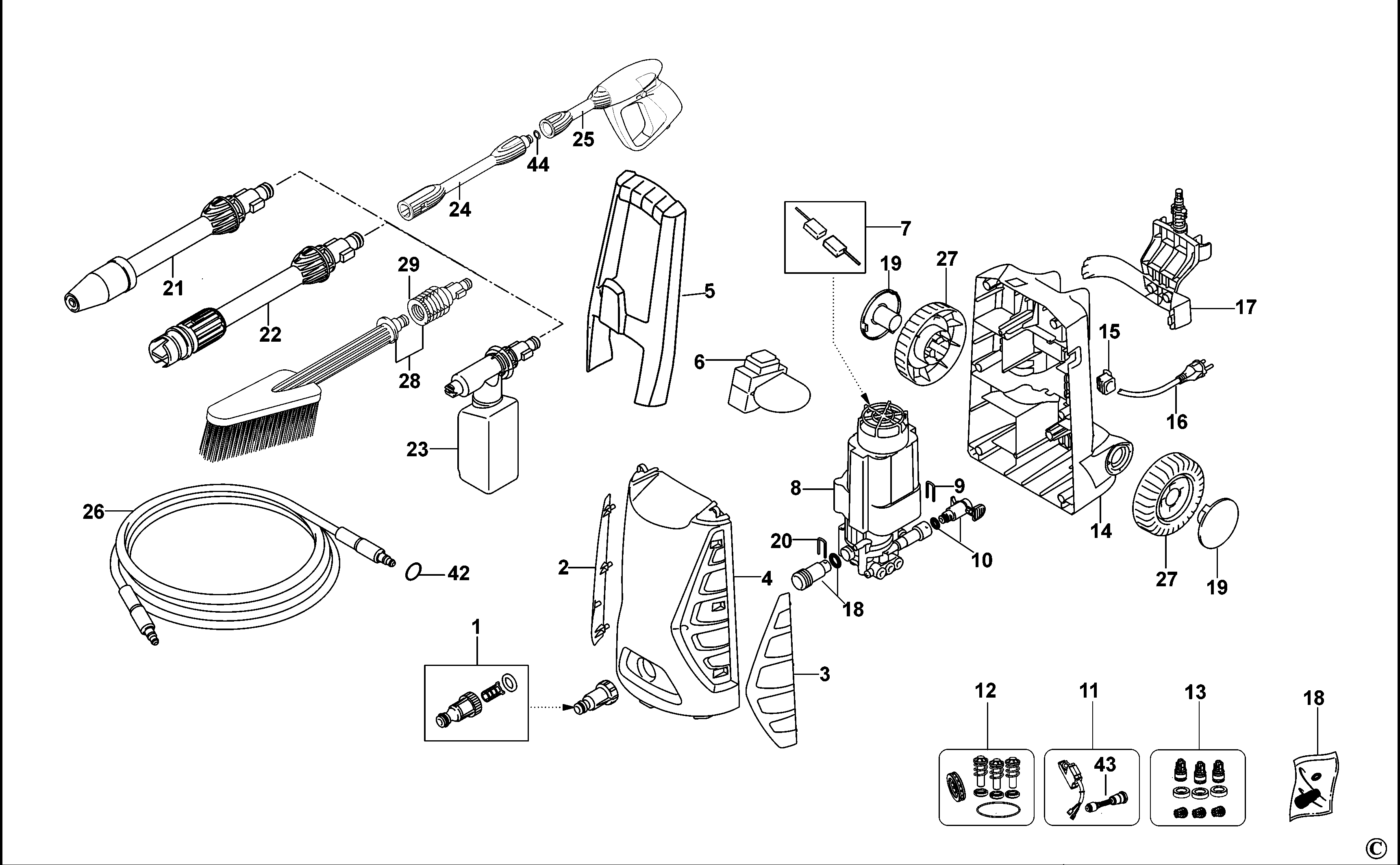

PW1570TD PRESSURE WASHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	1004455-15	1	FILTER & INLET KIT		JP
2	1004512-01	1	DOOR		JP
3	1004512-02	1	DOOR		JP
4	1004512-03	1	HOUSING FRONT		JP
5	1004512-27	1	Handle		JP
6	1004512-05	1	SWITCH		JP
7	1004512-72	1	BRUSH KIT		JP
8	1004455-60	1	MOTOR & PUMP SA 115V		JP
9	1004512-08	1	FORK		JP
10	1004512-09	1	OUTLET		JP
11	1004512-74	1	SWITCH KIT 115V		JP
12	1004512-11	1	PISTONS & SEALS KIT		JP
13	1004512-12	1	VALVES & SEALS KIT		JP
14	1004512-13	1	BASE		JP
15	1004455-07	1	GLAND		JP
16	1004455-39	1	CORDSET		JP
17	1004512-16	1	CARRIER		JP
18	1004512-17	1	SUCTION GROUP		JP
19	1004512-25	2	CAP		JP
20	1004512-19	1	FORK		JP
21	1004512-20	1	SPRAY SA		JP
22	1004455-22	1	SPRAY SA		JP
23	1004512-21	1	TANK		JP
24	1004455-23	1	EXTENSION		JP
25	1004455-24	1	ADJUSTER HANDLE		JP
26	1004512-26	1	HOSE SA		JP
26	1004512-69	1	HOSE SA, REINFORCED	5m	JP
27	1004512-67	2	WHEEL		JP
30	1004512-19	1	FORK		JP
31	1004512-78	1	CYLINDER HEAD		JP
32	1004512-10	1	SWITCH KIT 220V		JP
33	1004512-12	1	VALVES & SEALS KIT		JP
34	1004512-79	1	NUT		JP
35	1004512-11	1	PISTONS & SEALS KIT		JP
36	1004512-80	1	CYLINDER		JP
37	1004512-81	1	VALVE		JP
38	1004512-17	1	SUCTION GROUP		JP
39	1004512-82	1	MICRO SWITCH		JP
40	1004512-06	1	BRUSH KIT		JP
41	1004512-84	1	MOTOR		JP
42	5170000-32	2	O RING		JP
43	5170010-39	1	VALVE		JP
