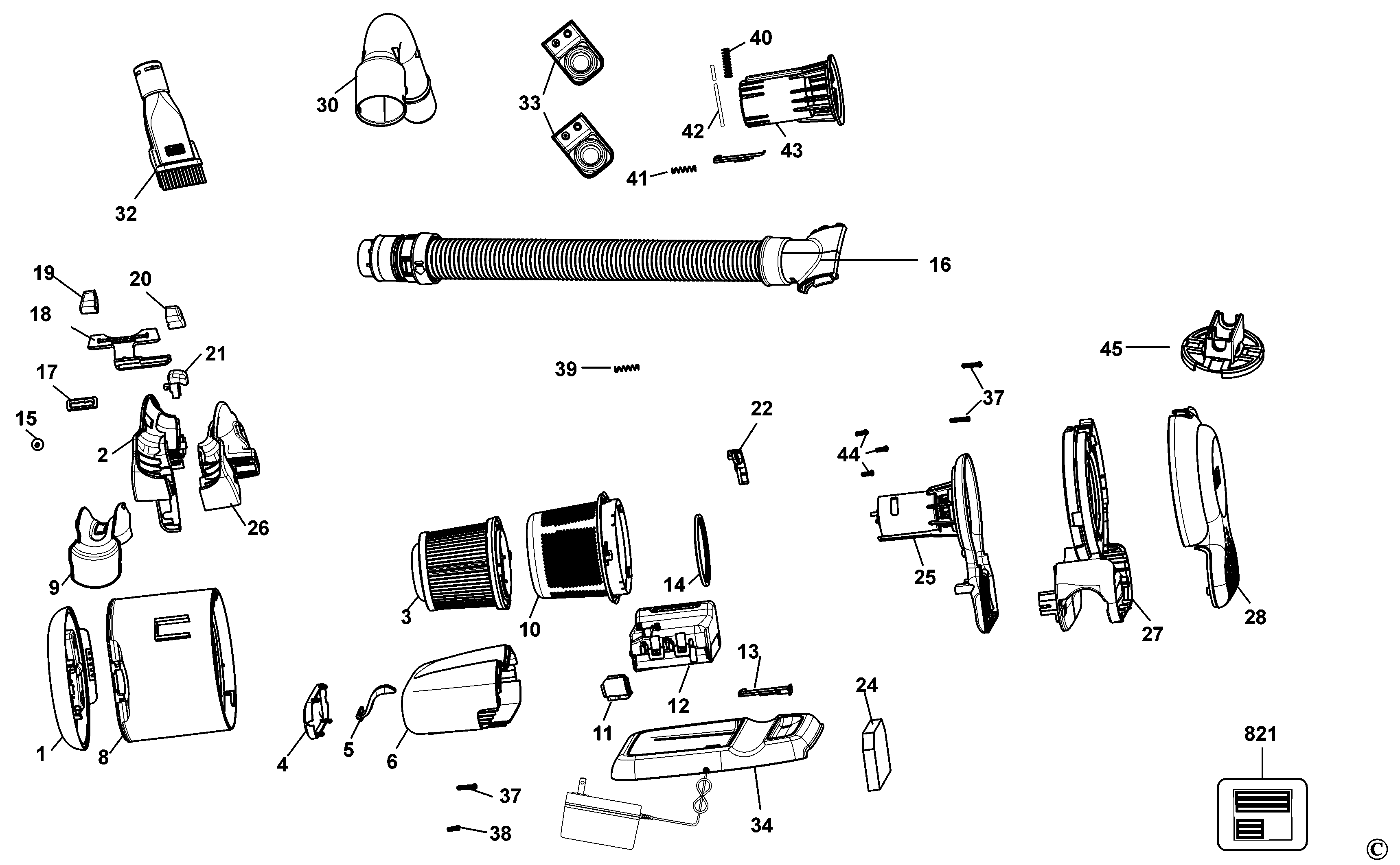

PD1420L DUSTBUSTER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N925212 | 1 | DOOR | A9 | |||
| 2 | 90592437 | 1 | HANDLE | A9 | |||
| 3 | N566707 | 1 | FILTER | A9 | |||
| 4 | 90600907-01 | 1 | INSERT | A9 | |||
| 5 | 90633036 | 1 | LENS | A9 | |||
| 6 | N514260 | 1 | HOUSING | A9 | |||
| 8 | 90600906 | 1 | BOWL | A9 | |||
| 9 | 90595544 | 1 | INSERT | A9 | |||
| 10 | 90552388 | 1 | PRE-FILTER | A9 | |||
| 11 | 90595847 | 1 | CONTACT | A9 | |||
| 12 | N546556 | 1 | BATTERY PACK | A9 | |||
| 13 | 90599180 | 1 | CLIP | A9 | |||
| 14 | 90552441 | 1 | SEAL | A9 | |||
| 15 | 90599358 | 1 | SCREW | A9 | |||
| 16 | N925372 | 1 | HOSE SA | A9 | |||
| 17 | 90598767 | 1 | SLIDER | A9 | |||
| 18 | 90595607 | 1 | SLIDER | A9 | |||
| 19 | 90596938 | 1 | SLIDER | A9 | |||
| 20 | 90596939 | 1 | SLIDER | A9 | |||
| 21 | 90591931 | 1 | SLIDER | A9 | |||
| 22 | 90591931 | 1 | SLIDER | A9 | |||
| 24 | 90598990 | 1 | FOAM | A9 | |||
| 25 | N924734 | 1 | MOTOR & FAN | A9 | |||
| 26 | 90591553 | 1 | HANDLE | A9 | |||
| 27 | N514259 | 1 | HOUSING | A9 | |||
| 28 | 90597077 | 1 | HOUSING & COVER | A9 | |||
| 30 | 90543785 | 1 | HANDLE SA | A9 | |||
| 32 | 90600901 | 1 | BRUSH SA | A9 | |||
| 33 | 90599332 | 2 | HOLDER TOOL | A9 | |||
| 34 | N925351 | 1 | CHARGER SA | A9 | |||
| 37 | 499903-00 | 4 | SCREW | A9 | |||
| 38 | 143062-02 | 1 | SCREW | A9 | |||
| 39 | 90586028 | 1 | SPRING | A9 | |||
| 40 | 90600872 | 1 | SPRING | A9 | |||
| 41 | 90600873 | 1 | SPRING | A9 | |||
| 42 | 90529378 | 1 | SEAL | A9 | |||
| 43 | 90595855 | 1 | COVER | A9 | |||
| 44 | 5119564-00 | 3 | SCREW | A9 | |||
| 821 | NA022529 | 1 | RATING LABEL | A9 |
