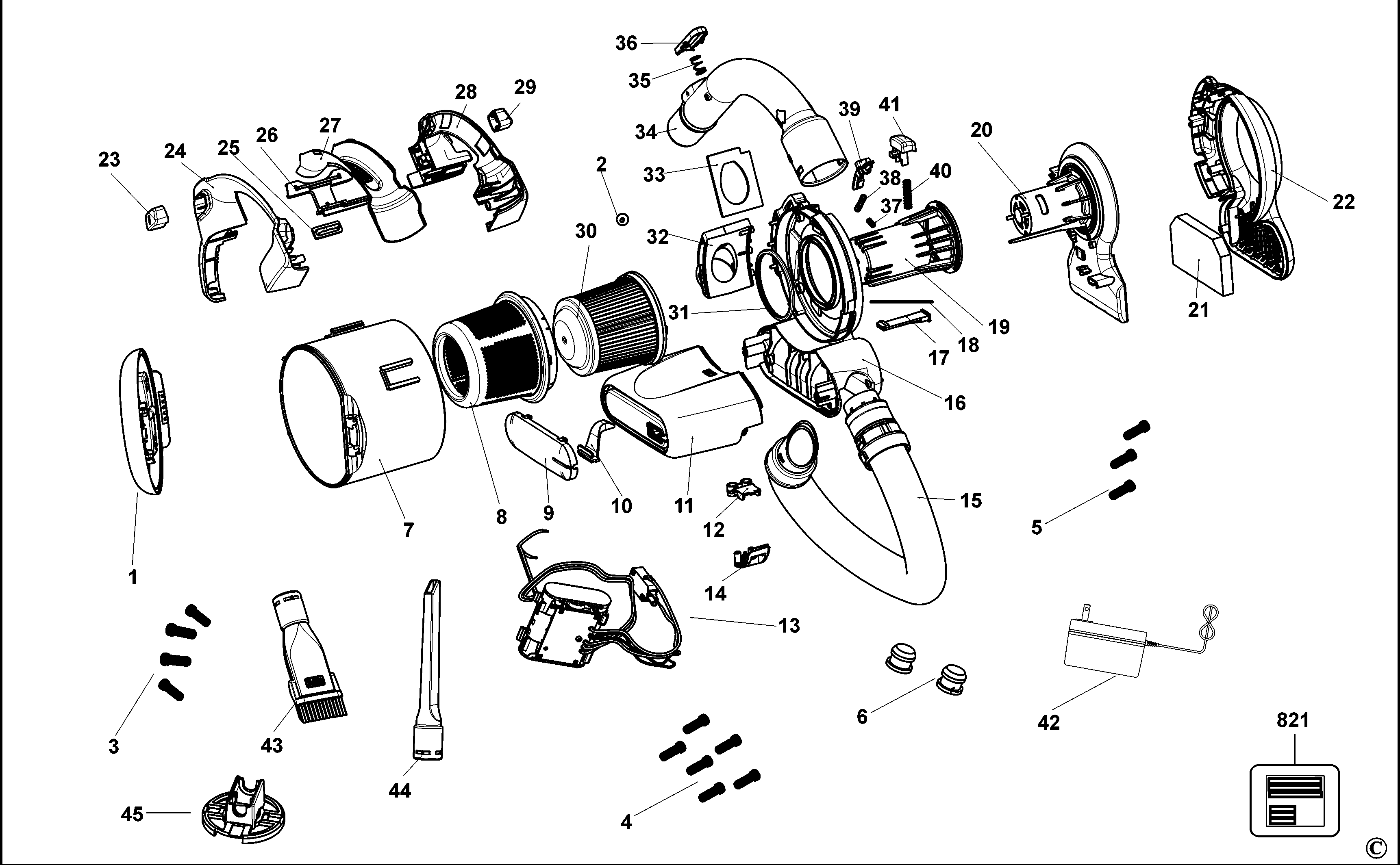

PDB315JP VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90600821 | 1 | DOOR | KR | |||
| 2 | 90599358 | 1 | SCREW | KR | |||
| 3 | 499903-00 | 4 | SCREW | KR | |||
| 4 | 143062-02 | 6 | SCREW | KR | |||
| 5 | 5119564-00 | 3 | SCREW | KR | |||
| 6 | 90637990 | 1 | BUNG | KR | |||
| 7 | 90600906 | 1 | BOWL | KR | |||
| 8 | 90598100 | 1 | PRE-FILTER | KR | |||
| 9 | N512021 | 1 | INSERT | KR | |||
| 10 | 90633036 | 1 | LENS | KR | |||
| 11 | 90632748-01 | 1 | COVER HOUSING | KR | |||
| 12 | 90598532-02 | 1 | HOLDER | KR | |||
| 14 | 90595852-01 | 1 | SOCKET | KR | |||
| 15 | N577020 | 1 | HOSE SA | KR | |||
| 16 | 90637048 | 1 | HOUSING | KR | |||
| 17 | 90599180 | 1 | CLIP | KR | |||
| 18 | 90529378 | 1 | SEAL | KR | |||
| 19 | 90595855-03 | 1 | MOTOR COVER | KR | |||
| 20 | 90591418-05 | 1 | MOTOR & FAN | KR | |||
| 21 | 90598990 | 1 | FOAM | KR | |||
| 22 | 90597077-03 | 1 | COVER HOUSING | KR | |||
| 23 | 90596939-03 | 1 | END CAP | KR | |||
| 24 | 90592437 | 1 | HANDLE | KR | |||
| 25 | 90598767 | 1 | SLIDER | KR | |||
| 26 | 90595607-03 | 1 | SLIDER | KR | |||
| 27 | 90595544 | 1 | INSERT | KR | |||
| 28 | 90591553 | 1 | HANDLE | KR | |||
| 29 | 90596938-03 | 1 | END CAP | KR | |||
| 30 | N566707 | 1 | FILTER | KR | |||
| 31 | 90552441 | 1 | SEAL | KR | |||
| 32 | N577020 | 1 | HOSE SA | KR | |||
| 33 | N577020 | 1 | HOSE SA | KR | |||
| 34 | N496247 | 1 | HOSE SA | KR | |||
| 35 | 90529369 | 1 | SPRING | KR | |||
| 36 | 90542154 | 1 | CLIP | KR | |||
| 37 | 90586028 | 1 | SPRING | KR | |||
| 38 | 90600873 | 1 | SPRING | KR | |||
| 39 | 90591931 | 1 | SLIDER | KR | |||
| 40 | 90600872 | 1 | SPRING | KR | |||
| 41 | 90592208-03 | 1 | LOCK | KR | |||
| 42 | N493875 | 1 | CHARGER | KR | |||
| 43 | N496249 | 1 | NOZZLE | KR | |||
| 44 | N496248 | 1 | TOOL CREVICE | KR | |||
| 45 | 90594117 | 1 | CAP | KR | |||
| 821 | N512663 | 1 | RATING LABEL | KR |
