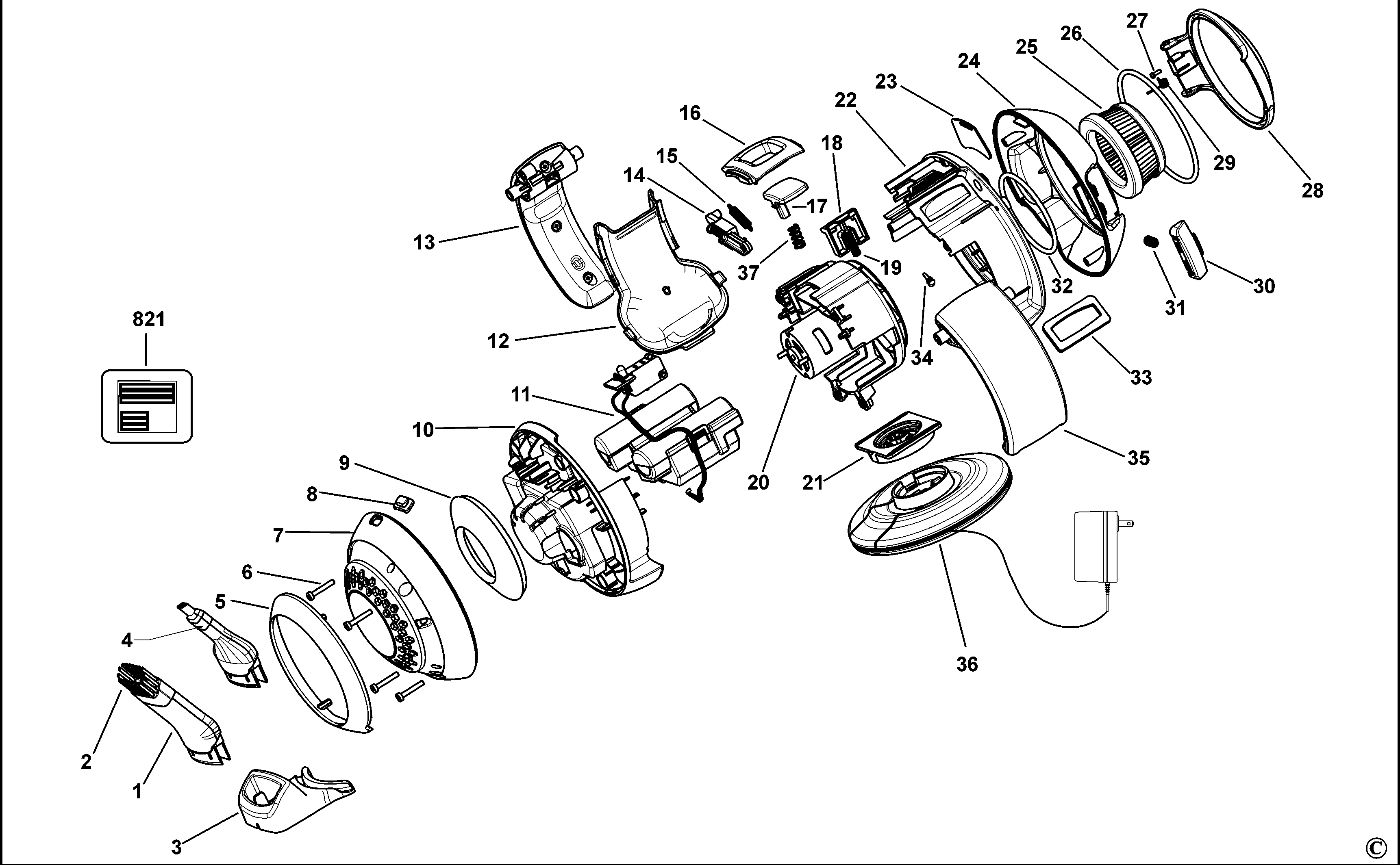

ORB36LBK VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 90566315 | 1 | TOOL CREVICE | A9 | |||
| 2 | 90566316 | 1 | BRUSH | A9 | |||
| 3 | 90566314 | 1 | STAND | A9 | |||
| 4 | 90641431 | 1 | NOZZLE | A9 | |||
| 5 | 90566273 | 1 | INSERT | A9 | |||
| 6 | 499903-00 | 4 | SCREW | A9 | |||
| 7 | 90573682-02 | 1 | COVER | A9 | |||
| 8 | 90566300 | 1 | LENS | A9 | |||
| 9 | 90569457 | 1 | FOAM | A9 | |||
| 10 | 90566322 | 1 | FLANGE | A9 | |||
| 11 | 90638060 | 1 | BATTERY PACK | REPLACE BY SERVICE | A9 | ||
| 12 | 90571490 | 1 | BEZEL | A9 | |||
| 13 | 90569342 | 1 | HANDLE SA | A9 | |||
| 14 | 90569458 | 1 | LINK | A9 | |||
| 15 | 90569353 | 1 | SPRING | A9 | |||
| 16 | 90566286 | 1 | COVER | A9 | |||
| 17 | 90571485 | 1 | BUTTON | A9 | |||
| 18 | 90566301 | 1 | LATCH | A9 | |||
| 19 | 90569659 | 1 | SPRING | A9 | |||
| 20 | 90638056 | 1 | MOTOR SA | A9 | |||
| 21 | 90639411 | 1 | CONTACT SA | A9 | |||
| 22 | 90566283 | 1 | HOUSING | A9 | |||
| 23 | 90571478 | 1 | FLAP | A9 | |||
| 24 | 90573683-02 | 1 | COVER | A9 | |||
| 25 | 90569443 | 1 | FILTER SA | A9 | |||
| 26 | 90566275 | 1 | O RING | A9 | |||
| 27 | 90567513 | 1 | SCREW | A9 | |||
| 28 | 90639831 | 1 | DOOR | A9 | |||
| 29 | 90569350 | 1 | SPRING | A9 | |||
| 30 | 90566276 | 1 | LATCH | A9 | |||
| 31 | 90569349 | 1 | SPRING | A9 | |||
| 32 | 90569447 | 1 | O RING | A9 | |||
| 33 | 90569442 | 1 | SEAL | A9 | |||
| 34 | 90566303 | 1 | STOP | A9 | |||
| 35 | 90589758 | 1 | NOZZLE | A9 | |||
| 36 | 90638045 | 1 | CHARGER & BASE | A9 | |||
| 36 | N503082 | 1 | CHARGER | A9 | |||
| 37 | 90569354 | 1 | SPRING | A9 | |||
| 821 | N503092 | 1 | RATING LABEL | A9 |
