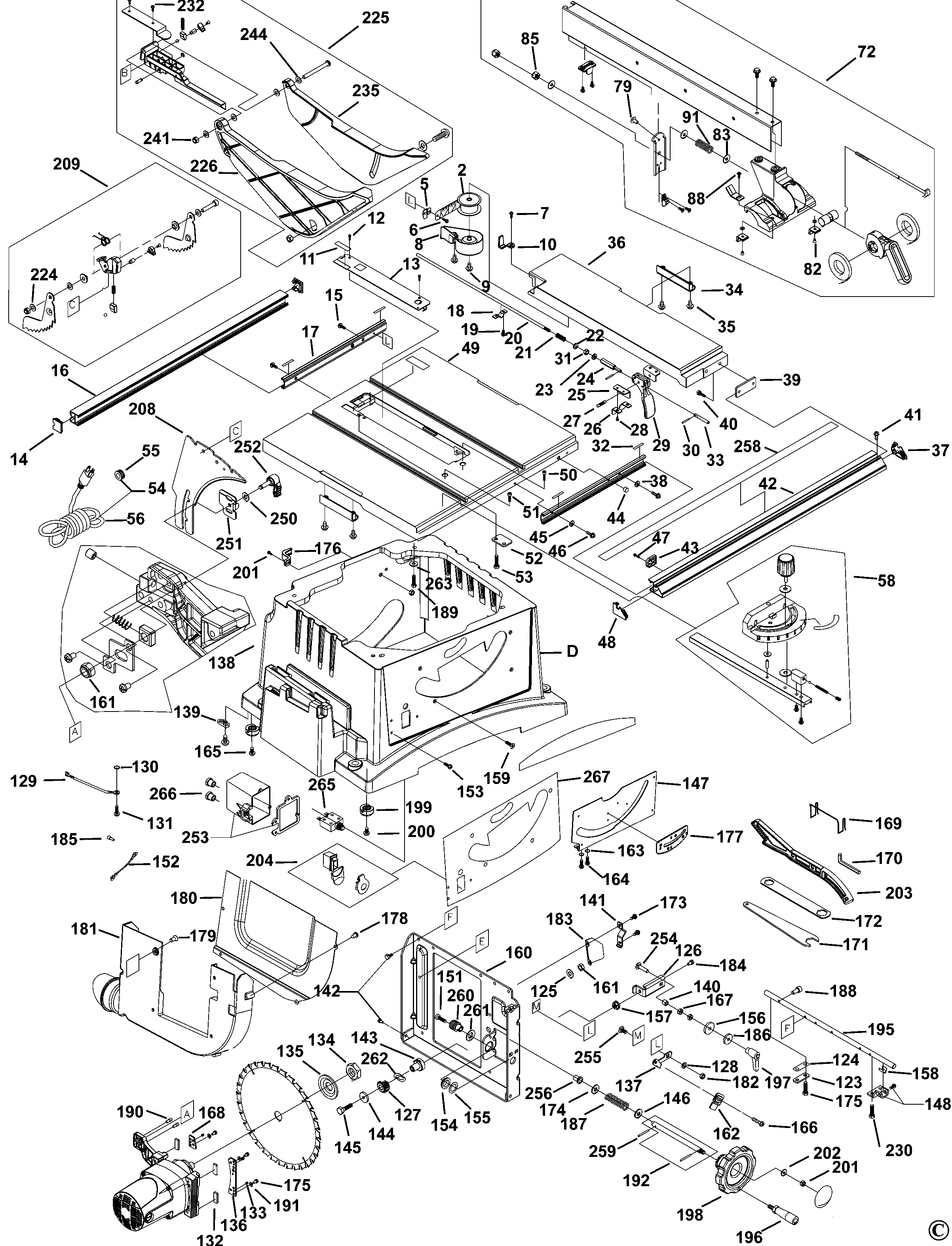

DWE7470 TABLE SAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 2 | 5140131-59 | 1 | SCALE | B1 |  |
||
| 5 | 5140082-83 | 1 | PAD | 29R9 | B1 | |
|
| 6 | 5140078-67 | 1 | SCREW | 0K6U | B1 | |
|
| 7 | 5140078-70 | 1 | SCREW | 0K71 | B1 | |
|
| 8 | 5140082-77 | 1 | COVER | 28BN | B1 | |
|
| 9 | 5140082-44 | 2 | WASHER | 0KCZ | B1 | |
|
| 10 | 5140082-79 | 1 | POINTER | 28EX | B1 | |
|
| 11 | 5140131-60 | 2 | SPACER | B1 | |
||
| 12 | 5140131-61 | 2 | BOLT | B1 | |
||
| 13 | 5140131-62 | 1 | INSERT | B1 | |
||
| 14 | 5140083-04 | 2 | COVER | 2WVT | B1 | |
|
| 15 | 5140082-71 | 2 | GRUB SCREW | 239T | B1 | |
|
| 16 | 5140131-63 | 1 | RAIL | B1 | |
||
| 17 | 5140131-64 | 1 | RACK | B1 | |
||
| 18 | 5140082-02 | 1 | STRAP | 0B9M | B1 | |
|
| 19 | 5140082-42 | 2 | LOCK SCREW | 0KCX | B1 | |
|
| 20 | 5140082-85 | 1 | BAR | 2CFL | B1 | |
|
| 21 | 5140082-01 | 1 | SPRING | 09XJ | B1 | |
|
| 22 | 5140078-51 | 1 | WASHER | 0J4E | B1 | |
|
| 23 | 5140082-23 | 1 | WASHER | 0J95 | B1 | |
|
| 24 | 5140082-63 | 1 | BAR | 1OJV | B1 | |
|
| 25 | 5140082-62 | 2 | PLATE | 1OJU | B1 | |
|
| 26 | 5140082-70 | 1 | PLATE | 21CX | B1 | |
|
| 27 | 5140082-61 | 1 | ROLL PIN | 1OJS | B1 | |
|
| 28 | 5140082-43 | 4 | SCREW | 0KCY | B1 | |
|
| 29 | 5140131-65 | 1 | HANDLE | B1 | |
||
| 30 | 5140082-65 | 2 | PIN | 1OK4 | B1 | |
|
| 31 | 5140082-48 | 1 | NUT | 0KMS | B1 | |
|
| 32 | 5140082-68 | 4 | SPACER | 213B | B1 | |
|
| 33 | 5140082-60 | 1 | BAR | 1OJR | B1 | |
|
| 34 | 5140131-66 | 2 | HANDLE | B1 | |
||
| 35 | 5140082-38 | 4 | SCREW | 0KBA | B1 | |
|
| 36 | 5140131-67 | 1 | TABLE | B1 | |
||
| 37 | 5140131-68 | 1 | COVER | B1 | |
||
| 38 | 5140131-69 | 1 | RACK | B1 | |
||
| 39 | 5140131-70 | 1 | PLATE | B1 | |
||
| 40 | 5140078-93 | 4 | SCREW | 20XY | B1 | |
|
| 41 | 5140082-37 | 2 | SCREW | 0KB3 | B1 | |
|
| 42 | 5140131-71 | 1 | RAIL | B1 | |
||
| 43 | 5140082-67 | 1 | BRACKET | 2OGJ | B1 | |
|
| 44 | 5140082-64 | 2 | BUSH | 1OK2 | B1 | |
|
| 45 | 5140082-12 | 4 | WASHER | 0J4D | B1 | |
|
| 46 | 5140082-71 | 2 | GRUB SCREW | 239T | B1 | |
|
| 47 | 5140082-28 | 1 | SCREW | 0K3E | B1 | |
|
| 48 | 5140083-05 | 1 | COVER | 2WVU | B1 | |
|
| 49 | 5140131-72 | 1 | TABLE | B1 | |
||
| 50 | 5140131-73 | 1 | BOLT | B1 | |
||
| 51 | 5140131-74 | 1 | BOLT | B1 | |
||
| 52 | 5140131-75 | 1 | PLATE | B1 | |
||
| 53 | 5140131-76 | 2 | SCREW | B1 | |
||
| 54 | 5170017-94 | 1 | CABLE SA | B1 | |
||
| 55 | 5140082-51 | 1 | CORD PROTECTOR | 0KSM | B1 | |
|
| 56 | 5170017-95 | 1 | CABLE | B1 | |
||
| 58 | 5140131-83 | 1 | GAUGE | B1 | |
||
| 72 | 5140131-97 | 1 | BRACKET | B1 | |
||
| 79 | 5140078-67 | 1 | SCREW | 0K6U | B1 | |
|
| 82 | 5140082-33 | 2 | SCREW | 0K8C | B1 | |
|
| 83 | 5140078-52 | 3 | WASHER | 0J4U | B1 | |
|
| 85 | 284867-00 | 1 | NUT | B1 | |
||
| 88 | 5140132-13 | 1 | SCREW | B1 | |
||
| 91 | 5140082-01 | 1 | SPRING | 09XJ | B1 | |
|
| 95 | 5140084-12 | 1 | GUIDE | 2RPP | B1 | |
|
| 96 | 5140084-20 | 2 | SCREW | 2RWS | B1 | |
|
| 97 | 5140084-01 | 1 | BEARING,NEEDLE | 0HX9 | B1 | |
|
| 98 | 5140133-72 | 1 | MOTOR COVER | B1 | |
||
| 99 | 5140084-06 | 2 | BRUSH HOLDER SA | 0QM2 | B1 | |
|
| 100 | 5140084-08 | 2 | BRUSH COVER | 0QR0 | B1 | |
|
| 101 | 5170040-56 | 1 | BRUSH PAIR | B1 | |
||
| 102 | 5140084-04 | 2 | SCREW | 0JX3 | B1 | |
|
| 103 | 5140084-11 | 1 | WASHER | 2DW9 | B1 | |
|
| 104 | 5140133-74 | 1 | PAD | B1 | |
||
| 105 | 5140132-21 | 1 | BRACKET | B1 | |
||
| 106 | 5140084-09 | 2 | SCREW | 0KCP | B1 | |
|
| 107 | 5140133-76 | 1 | FIELD SA | B1 | |
||
| 108 | 5140133-77 | 1 | ARMATURE SA | B1 | |
||
| 109 | N045739 | 1 | COVER BEARING | B1 | |
||
| 111 | 5140106-06 | 1 | BEARING | 2SDK | B1 | |
|
| 113 | 5140132-25 | 1 | SHAFT SA | B1 | |
||
| 114 | 5140084-16 | 1 | SHAFT | 2RQ0 | B1 | |
|
| 115 | 5140084-15 | 1 | GEAR | 2RPZ | B1 | |
|
| 116 | 5140084-14 | 1 | SPACER | 2RPY | B1 | |
|
| 117 | 5140084-17 | 1 | COVER BEARING | 2RQ3 | B1 | |
|
| 118 | 5140084-00 | 1 | BEARING,BALL | 0HV3 | B1 | |
|
| 119 | 5140084-03 | 1 | PIN | 0JG7 | B1 | |
|
| 120 | 5140084-02 | 1 | RING | 0JEB | B1 | |
|
| 121 | 5140084-18 | 1 | BEARING PLATE | 2RRA | B1 | |
|
| 122 | 5140132-26 | 4 | SCREW | B1 | |
||
| 123 | 5140132-27 | 1 | CLAMP | B1 | |
||
| 124 | 5140132-28 | 1 | SPACER | B1 | |
||
| 125 | 5140132-29 | 1 | WASHER | B1 | |
||
| 126 | 5140132-30 | 1 | BRACKET | B1 | |
||
| 127 | 5140132-31 | 1 | GEAR | B1 | |
||
| 128 | 5140084-32 | 1 | WASHER | 0J78 | B1 | |
|
| 129 | 5140133-27 | 1 | LEADWIRE | B1 | |
||
| 130 | 283716-00 | 1 | WASHER | B1 | |
||
| 131 | 5140082-39 | 1 | SCREW | 0KBQ | B1 | |
|
| 132 | 5140132-32 | 4 | CLAMP | B1 | |
||
| 133 | 5140132-33 | 1 | SCREW | B1 | |
||
| 134 | 5140132-34 | 1 | NUT | B1 | |
||
| 135 | 5140132-35 | 1 | COLLAR | B1 | |
||
| 136 | 5140132-36 | 1 | CLIP | B1 | |
||
| 137 | 5140082-98 | 1 | BRACKET | 2TLZ | B1 | |
|
| 138 | 5140132-37 | 1 | CLAMSHELL | B1 | |
||
| 139 | 5140082-00 | 1 | CORD CLAMP | 08VH | B1 | |
|
| 140 | 5140132-38 | 1 | SPACER | B1 | |
||
| 141 | 5140132-39 | 1 | PLATE | B1 | |
||
| 142 | 5140132-40 | 7 | SCREW | B1 | |
||
| 143 | 5140132-41 | 1 | SPACER | B1 | |
||
| 144 | 5140104-84 | 1 | WASHER | 0J74 | B1 | |
|
| 145 | 5140132-42 | 1 | SCREW | B1 | |
||
| 146 | 5140132-44 | 1 | WASHER | B1 | |
||
| 147 | 5140132-46 | 1 | CLIP | B1 | |
||
| 148 | 5140132-47 | 1 | CLAMP SA | B1 | |
||
| 151 | 5140132-50 | 1 | SCREW | B1 | |
||
| 152 | 5140082-54 | 1 | LEADWIRE | 0KWU | B1 | |
|
| 153 | 5140082-40 | 3 | SCREW | 0KC8 | B1 | |
|
| 154 | 5140132-54 | 1 | COLLAR | B1 | |
||
| 155 | 5140132-55 | 1 | WASHER | B1 | |
||
| 156 | 5140082-16 | 1 | WASHER | 0J6K | B1 | |
|
| 157 | 5140132-56 | 1 | NUT | B1 | |
||
| 158 | 5140132-57 | 1 | SHIM | B1 | |
||
| 159 | 5140082-33 | 2 | SCREW | 0K8C | B1 | |
|
| 160 | 5140132-58 | 1 | BODY | B1 | |
||
| 161 | 284867-00 | 1 | NUT | B1 | |
||
| 162 | 5140132-60 | 1 | POINTER | B1 | |
||
| 163 | 5140078-54 | 2 | WASHER | 0JAE | B1 | |
|
| 164 | 5140132-61 | 2 | SCREW | B1 | |
||
| 165 | 5140082-36 | 2 | SCREW | 0KA4 | B1 | |
|
| 166 | 5140132-13 | 1 | SCREW | B1 | |
||
| 167 | 5140085-85 | 2 | NUT | 10LF | B1 | |
|
| 168 | 5140132-63 | 1 | CLIP | B1 | |
||
| 169 | 5140083-50 | 1 | Seat | 090Q | B1 | |
|
| 170 | 5140082-11 | 1 | WRENCH PIN | 0J3P | B1 | |
|
| 171 | 5140132-64 | 1 | WRENCH FLAT-PINS | B1 | |
||
| 172 | 5140084-28 | 1 | WRENCH ROUND-PINS | 09JK | B1 | |
|
| 173 | 5140082-29 | 2 | LOCKING SCREW | 0K3H | B1 | |
|
| 174 | 5140082-21 | 1 | WASHER SMALL | 0J8D | B1 | |
|
| 175 | 5140131-76 | 2 | SCREW | B1 | |
||
| 176 | 5140082-73 | 2 | CABLE CLAMP | 262S | B1 | |
|
| 177 | 5140132-66 | 1 | GEAR | B1 | |
||
| 178 | 5140132-67 | 4 | SCREW | B1 | |
||
| 179 | 5140084-46 | 4 | SCREW | 0K5B | B1 | |
|
| 180 | 5140132-69 | 1 | COVERPLATE | B1 | |
||
| 181 | 5140132-70 | 1 | DUST COLLECTOR | B1 | |
||
| 182 | 5140082-48 | 1 | NUT | 0KMS | B1 | |
|
| 183 | 5140133-28 | 1 | PLATE | B1 | |
||
| 184 | 5140104-99 | 1 | SCREW | 0K0X | B1 | |
|
| 185 | 5140105-15 | 1 | TERMINAL | 0KUW | B1 | |
|
| 186 | 5140132-71 | 1 | WASHER | B1 | |
||
| 187 | 5140132-72 | 1 | SPRING | B1 | |
||
| 188 | 5140082-66 | 1 | BOLT | 1OK5 | B1 | |
|
| 189 | 5140082-35 | 4 | SCREW | 0K9U | B1 | |
|
| 190 | 5140132-73 | 3 | BOLT | B1 | |
||
| 191 | 5140132-74 | 4 | WASHER | B1 | |
||
| 192 | 5140132-75 | 1 | BOLT | B1 | |
||
| 195 | 5140132-78 | 1 | ROD | B1 | |
||
| 196 | 5140132-79 | 1 | HANDLE | B1 | |
||
| 197 | 5140132-80 | 1 | LOCK HANDLE | B1 | |
||
| 198 | 5140132-81 | 1 | WHEEL | B1 | |
||
| 199 | 5140132-82 | 4 | PAD | B1 | |
||
| 200 | 5140132-83 | 4 | SCREW | B1 | |
||
| 201 | 5140078-79 | 1 | LOCK NUT | 0KQY | B1 | |
|
| 202 | 5140132-85 | 1 | WASHER | B1 | |
||
| 203 | 5140082-82 | 1 | PUSHROD | 293H | B1 | |
|
| 204 | 5140132-86 | 1 | SWITCH | B1 | |
||
| 208 | 5140132-91 | 1 | STOP PLATE | B1 | |
||
| 209 | 5140132-92 | 1 | PAWL | B1 | |
||
| 224 | 5140078-51 | 1 | WASHER | 0J4E | B1 | |
|
| 225 | 5140133-06 | 1 | BLADE SUPPORT SA | B1 | |
||
| 226 | 5140083-02 | 1 | BLADE FIXED | 2V3F | B1 | |
|
| 230 | 5170017-96 | 1 | SCREW | CR.-RE. TRUSS HD. | B1 | |
|
| 232 | 5140082-37 | 2 | SCREW | 0KB3 | B1 | |
|
| 235 | 5140083-01 | 1 | BLADE FIXED | 2V3E | B1 | |
|
| 241 | 284867-00 | 1 | NUT | B1 | |
||
| 244 | 5140078-51 | 1 | WASHER | 0J4E | B1 | |
|
| 250 | 5140133-23 | 1 | WASHER | B1 | |
||
| 251 | 5140133-24 | 1 | CLAMP | B1 | |
||
| 252 | 5140133-25 | 1 | LOCK HANDLE | B1 | |
||
| 253 | 5140132-89 | 1 | SWITCHBOX SA | B1 | |
||
| 254 | 5140132-51 | 1 | BOLT | B1 | |
||
| 255 | 5140132-84 | 1 | BOLT | B1 | |
||
| 256 | 5140132-53 | 1 | BUSH | B1 | |
||
| 258 | 5140131-81 | 1 | SCALE | B1 | |
||
| 259 | 5140132-45 | 1 | PIN | B1 | |
||
| 260 | 5140132-52 | 1 | SLEEVE | B1 | |
||
| 261 | 5140132-59 | 1 | WASHER | B1 | |
||
| 262 | 5140084-37 | 1 | WASHER | 0JB2 | B1 | |
|
| 263 | 5140082-18 | 4 | WASHER | 0J6T | B1 | |
|
| 265 | 5140132-43 | 1 | SWITCH & BREAKER | B1 | |
||
| 266 | 5140078-80 | 2 | BOLT | 0KTH | B1 | |
|
| 267 | 5170017-97 | 1 | RATING LABEL | B1 | |
