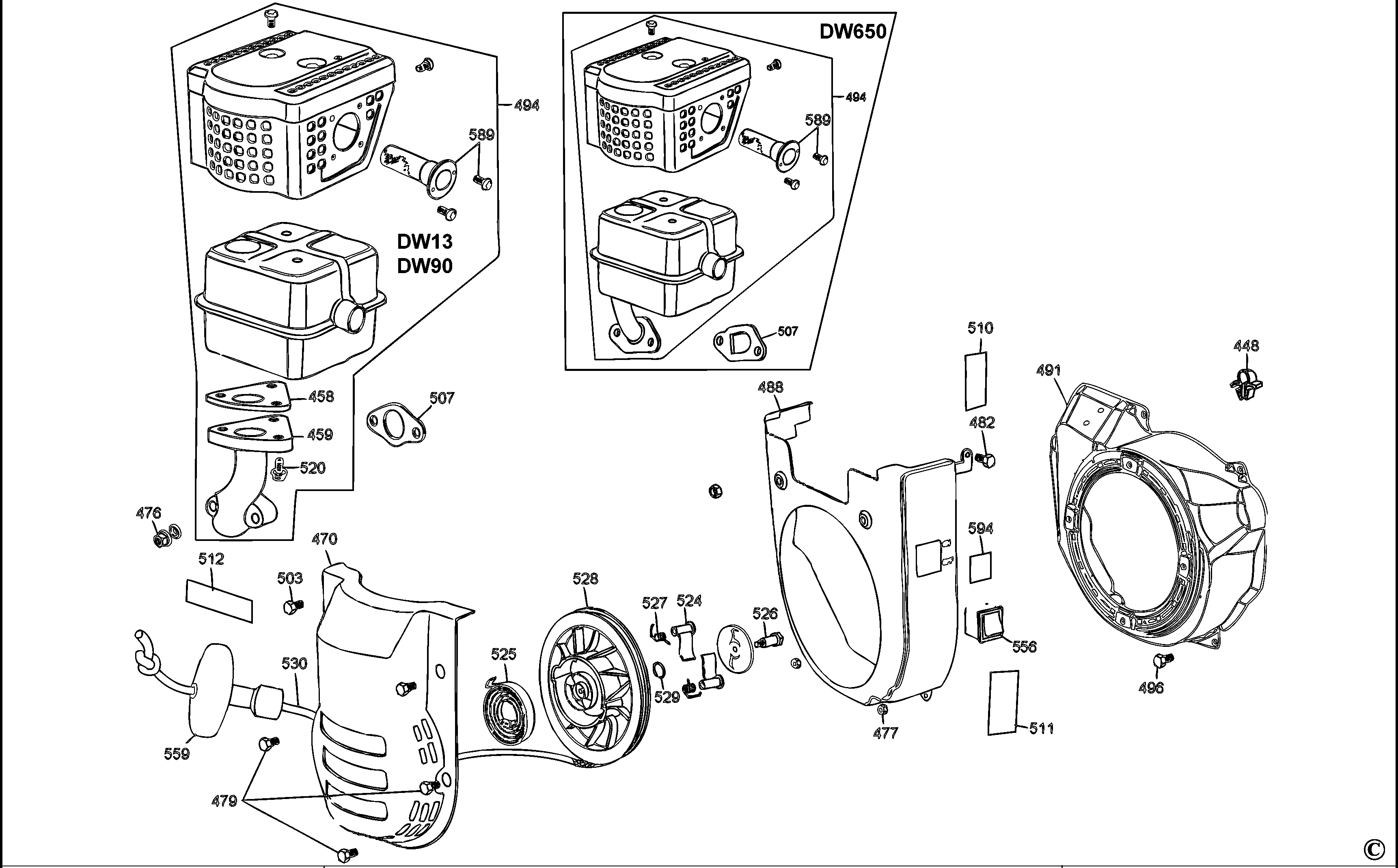

DW90LAG MARINE ENGINES Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 400 | 285814-01 | 4 | BOLT | FLANGE, M10x80 | B1 | ||
| 401 | 285815-94 | 2 | PLUG | M12x1.5x15 | B1 | ||
| 402 | 285814-03 | 1 | BOLT | B1 | |||
| 404 | 285817-94 | 2 | STUD | EXHAUSTM 8x58 | B1 | ||
| 406 | 285814-08 | 1 | WASHER | M8x16x1.2 | B1 | ||
| 407 | 285814-10 | 2 | WASHER | M12x20x2 | B1 | ||
| 408 | 285814-12 | 1 | NUT | M16x1.5 | B1 | ||
| 409 | 285814-13 | 2 | SEAL | 30x46x8 | B1 | ||
| 410 | 285814-16 | 2 | PIN | 12x20 | B1 | ||
| 411 | 285814-18 | 2 | PIN | 8x12 | B1 | ||
| 412 | 285816-28 | 2 | BEARING,BALL | 6206 | B1 | ||
| 413 | 285814-23 | 1 | SPARK PLUG | B1 | |||
| 414 | 285814-25 | 1 | GASKET | HEAD COVER | B1 | ||
| 415 | 285814-28 | 1 | GASKET | CYLINDER | B1 | ||
| 416 | 285814-30 | 1 | CYLINDER HEAD | B1 | |||
| 417 | 285814-33 | 1 | COVER | VALVE | B1 | ||
| 418 | 285814-34 | 1 | BOLT | M6x60 | B1 | ||
| 419 | 285818-10 | 1 | CRANKCASE | B1 | |||
| 420 | 285816-15 | 1 | SWITCH | OIL LEVEL | B1 | ||
| 421 | 285814-40 | 1 | OIL ALERT UNIT | B1 | |||
| 422 | 285814-42 | 1 | COVER | B1 | |||
| 423 | 285814-45 | 1 | GASKET | CASE COVER | B1 | ||
| 424 | 285814-48 | 1 | CAP SA | DIPSTICK | B1 | ||
| 427 | 285818-11 | 1 | CRANKSHAFT | B1 | |||
| 428 | 285817-20 | 1 | WOODRUFF KEY | B1 | |||
| 429 | 285814-58 | 1 | PIN | PISTON | B1 | ||
| 430 | 285814-60 | 2 | CLIP | B1 | |||
| 431 | 285814-63 | 1 | RING | B1 | |||
| 432 | 285814-66 | 1 | CONNECTING ROD | INCL CAP & BOLTS | B1 | ||
| 433 | 285814-69 | 2 | LIFTER | VALVE | B1 | ||
| 434 | 285814-71 | 2 | PUSHROD | B1 | |||
| 435 | 285814-74 | 1 | VALVE | INTAKE | B1 | ||
| 436 | 285814-77 | 1 | VALVE | EXHAUST | B1 | ||
| 437 | 285814-80 | 2 | VALVE SPRING | B1 | |||
| 438 | 285814-83 | 4 | RETAINER | VALVE SPRING | B1 | ||
| 439 | 285814-85 | 1 | SEAL | GUIDE | B1 | ||
| 440 | 285814-87 | 1 | ROTATOR VALVE | B1 | |||
| 441 | 285814-90 | 1 | SHAFT SA | B1 | |||
| 442 | 285814-93 | 1 | PLATE SA | B1 | |||
| 443 | 285814-95 | 2 | ARM PAIR | B1 | |||
| 444 | 285815-00 | 1 | SHROUD | B1 | |||
| 445 | 285815-03 | 1 | GASKET | INSULATOR | B1 | ||
| 446 | 285815-07 | 1 | GASKET | CARBURETOR | B1 | ||
| 447 | 285815-09 | 4 | CLIP | B1 | |||
| 448 | 285818-12 | 1 | CLIP | SWALLOW TAILED | B1 | ||
| 450 | 285815-15 | 1 | FAN | B1 | |||
| 451 | 285815-18 | 1 | PULLEY | B1 | |||
| 452 | 285818-06 | 1 | FLYWHEEL | B1 | |||
| 453 | 285815-23 | 1 | GROMMET | B1 | |||
| 455 | 285815-27 | 1 | COIL SA | B1 | |||
| 455 | 285815-26 | 1 | COIL SA | B1 | |||
| 457 | 285815-30 | 1 | GASKET | AIR CLEANER | B1 | ||
| 458 | 285818-01 | 1 | GASKET | MUFFLER | B1 | ||
| 459 | 285818-02 | 1 | MANIFOLD ASSEMBLY | EXHAUST | B1 | ||
| 460 | 285814-55 | 1 | PISTON | B1 | |||
| 461 | 285815-39 | 1 | SPRING | THROTTLE RETURN | B1 | ||
| 462 | 285818-03 | 1 | SPRING | GOVERNOR | B1 | ||
| 463 | 285818-04 | 1 | BRACKET | GOVERNOR | B1 | ||
| 464 | 285815-47 | 1 | SHAFT | GOV. ARM | B1 | ||
| 465 | 285815-49 | 1 | LOCK PIN | B1 | |||
| 466 | 285815-52 | 1 | GOVERNOR SA | B1 | |||
| 470 | 285817-96 | 1 | STARTER SA | RECOIL | B1 | ||
| 471 | 285815-62 | 1 | INSULATOR | CARBURETOR | B1 | ||
| 472 | 285817-97 | 1 | CARBURETTOR SA | B1 | |||
| 473 | 285817-98 | 1 | FILTER | ASSEMBLY | B1 | ||
| 474 | 285818-87 | 1 | CONTROL SA | THROTTLE | B1 | ||
| 475 | 285818-08 | 1 | HOSE SA | FUEL, 4x8x215 | B1 | ||
| 476 | 285815-73 | 5 | NUT | B1 | |||
| 477 | 285815-74 | 7 | NUT | B1 | |||
| 479 | 285815-84 | 3 | BOLT | B1 | |||
| 482 | 285815-86 | 9 | BOLT | B1 | |||
| 483 | 285815-88 | 3 | BOLT | B1 | |||
| 484 | 285815-90 | 2 | BOLT | B1 | |||
| 488 | 285817-90 | 1 | BLOWER HOUSING | B1 | |||
| 489 | 285817-95 | 2 | STUD | INTAKE | B1 | ||
| 491 | 285818-86 | 1 | BLOWER HOUSING | B1 | |||
| 494 | 285818-00 | 1 | MUFFLER | B1 | |||
| 495 | 285816-13 | 1 | ROD | GOVERNOR | B1 | ||
| 496 | 285816-24 | 3 | STUD | B1 | |||
| 497 | 285816-25 | 1 | CABLE TIE | B1 | |||
| 503 | 285816-36 | 2 | BOLT | B1 | |||
| 505 | 285814-88 | 2 | SEAT | VALVE SPRING | B1 | ||
| 506 | 285816-45 | 2 | RETAINER | KEEPER, VALVE SPRING | B1 | ||
| 507 | 285816-46 | 1 | GASKET | MANIFOLD | B1 | ||
| 508 | 285816-40 | 1 | CONNECTING WIRE | Y | B1 | ||
| 509 | 285815-93 | 7 | BOLT | FLANGE, M8x35 | B1 | ||
| 510 | 285816-49 | 1 | LABEL | EMISSIONS | B1 | ||
| 511 | 285816-50 | 1 | LABEL | 9.0HP | B1 | ||
| 512 | 285816-53 | 1 | IDENTITY LABEL | B1 | |||
| 515 | 285817-85 | 1 | LABEL | B1 | |||
| 520 | 285816-55 | 2 | BOLT | FLANGE, M8X25 | B1 | ||
| 524 | 285816-76 | 2 | RATCHET | B1 | |||
| 525 | 285816-96 | 1 | SPRING | RECOIL | B1 | ||
| 526 | 285816-78 | 1 | BOLT | B1 | |||
| 527 | 285816-79 | 2 | SPRING | B1 | |||
| 528 | 285816-80 | 1 | PULLEY | B1 | |||
| 529 | 285816-81 | 1 | SPRING | B1 | |||
| 530 | 285816-82 | 1 | STARTER ROPE | B1 | |||
| 531 | 285816-83 | 1 | CAP SA | B1 | |||
| 535 | 285816-87 | 1 | FLOAT | B1 | |||
| 536 | 285816-88 | 1 | VALVE | NEEDLE | B1 | ||
| 537 | 285816-89 | 1 | BOWL | FLOAT | B1 | ||
| 538 | 285816-90 | 1 | PIN | FLOAT | B1 | ||
| 539 | 285816-91 | 1 | O RING | FLOAT BOWL | B1 | ||
| 540 | 285816-92 | 1 | NOZZLE | MAIN | B1 | ||
| 541 | 285818-67 | 1 | BOLT | FLOAT BOWL | B1 | ||
| 542 | 285818-68 | 1 | GASKET | FLOAT BOWL BOLT | B1 | ||
| 543 | 285818-74 | 1 | MAIN JET | ABOVE 5000FT | B1 | ||
| 543 | 285816-95 | 1 | MAIN JET | STD. | B1 | ||
| 545 | 285818-89 | 1 | LEVER | CHOKE | B1 | ||
| 546 | 285816-93 | 1 | SCREW | DRAIN | B1 | ||
| 547 | 285816-97 | 1 | SCREW | IDLE SPEED ADJ. | B1 | ||
| 548 | 285817-08 | 1 | GASKET | B1 | |||
| 552 | 1349856 | 1 | SCREW | M5 x 40 | B1 | ||
| 553 | 285818-70 | 1 | SPRING | B1 | |||
| 554 | 285817-99 | 1 | TUBE | BREATHER | B1 | ||
| 556 | 285818-84 | 1 | SWITCH | ON/OFF | B1 | ||
| 559 | 285818-39 | 1 | HANDLE | B1 | |||
| 560 | 285817-74 | 1 | CONNECTING WIRE | B1 | |||
| 561 | 285817-81 | 1 | BOLT | B1 | |||
| 562 | 285817-80 | 1 | FILTER | B1 | |||
| 564 | N068067 | 1 | WARNING LABEL | B1 | |||
| 566 | 285818-30 | 1 | FILTER | B1 | |||
| 567 | 285818-31 | 2 | WING NUT | B1 | |||
| 569 | 285818-69 | 1 | SPRING | RETURN | B1 | ||
| 589 | 285816-68 | 1 | SPARK ARRESTOR | B1 | |||
| 590 | 285817-76 | 1 | JOINT | B1 | |||
| 591 | 285818-07 | 1 | FUEL TANK | B1 | |||
| 593 | 285817-92 | 1 | RUBBER STRIP | B1 | |||
| 594 | 285817-86 | 1 | LABEL | B1 | |||
| 596 | 285817-84 | 1 | LABEL | B1 | |||
| 598 | 285818-94 | 1 | SEAL | AIR CLEANER | B1 | ||
| 599 | 285818-13 | 1 | BOLT | FLANGE, M6x22 | B1 | ||
| 600 | 285820-67 | 1 | FUEL CAP | B1 | |||
| 846 | 285817-78 | 1 | WRENCH SPECIAL | B1 |
