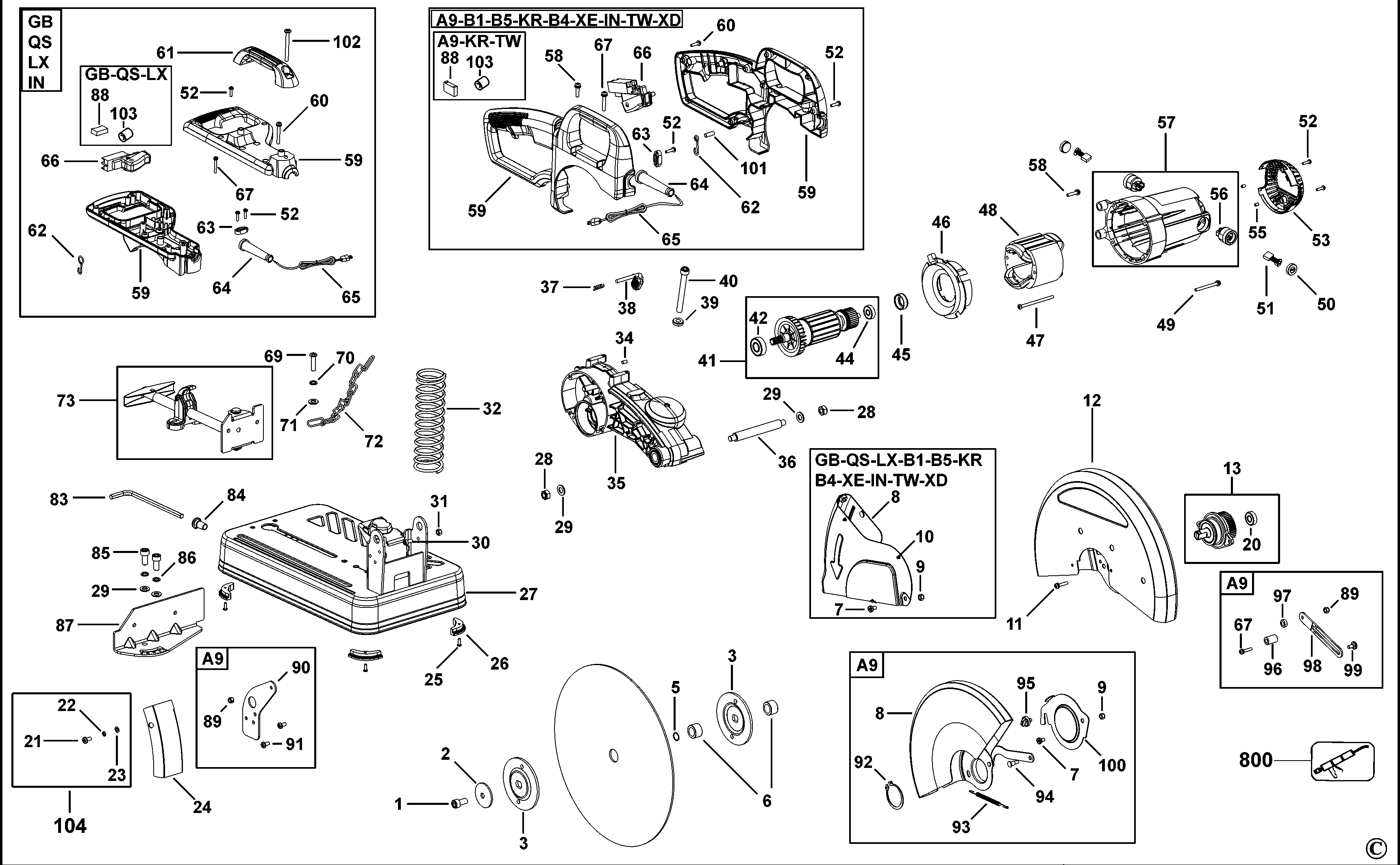

D28710 CHOP SAW Type 1 | Drawings
Documents

Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
---|---|---|---|---|---|---|---|
1 | N085909 | 1 | SCREW | B5 | ![]() |
||
2 | N085898 | 1 | WASHER | B5 | ![]() |
||
3 | N085893 | 2 | FLANGE | B5 | ![]() |
||
5 | N085972 | 1 | O RING | B5 | ![]() |
||
6 | N085971 | 2 | ADAPTOR | B5 | |||
7 | N085903 | 1 | SCREW | B5 | ![]() |
||
8 | N085884 | 1 | GUARD LOWER | B5 | ![]() |
||
9 | N085883 | 1 | NUT | B5 | ![]() |
||
10 | N085888 | 3 | RUBBER | B5 | ![]() |
||
11 | N085889 | 4 | SCREW | B5 | ![]() |
||
12 | N085878 | 1 | GUARD UPPER | B5 | |||
13 | N085924 | 1 | GEAR & SPINDLE SA | B5 | |||
20 | N085923 | 1 | BEARING | B5 | |||
21 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | No. 104 | B5 | ![]() |
22 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | No. 104 | B5 | ![]() |
23 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | B5 | ![]() |
|
24 | N085906 | 1 | GUARD REAR | B5 | |||
25 | N085948 | 4 | SCREW | B5 | ![]() |
||
26 | N085949 | 4 | FOOT | B5 | ![]() |
||
27 | N085953 | 1 | BASE SA | B5 | |||
28 | N085952 | 2 | NUT | B5 | ![]() |
||
29 | N085955 | 4 | WASHER | B5 | |||
30 | N085947 | 1 | SCREW | B5 | ![]() |
||
31 | N085954 | 1 | NUT | B5 | ![]() |
||
32 | N085890 | 1 | SPRING COMPRESSION | B5 | |||
34 | N085880 | 1 | PLUG | B5 | ![]() |
||
35 | N085891 | 1 | ARM | B5 | ![]() |
||
36 | N085950 | 1 | PIN | B5 | ![]() |
||
37 | N085881 | 1 | SPRING | B5 | ![]() |
||
38 | N085879 | 1 | LOCKING PIN | B5 | ![]() |
||
39 | N085897 | 1 | NUT | B5 | |||
40 | N085896 | 1 | SCREW | B5 | |||
41 | N085931 | 1 | ARMATURE SA | B5 | ![]() |
||
42 | N085930 | 1 | BEARING | B5 | ![]() |
||
44 | N085929 | 1 | BEARING | B5 | ![]() |
||
45 | N085933 | 1 | RUBBER BOOT | B5 | ![]() |
||
46 | N085941 | 1 | BAFFLE FAN | B5 | ![]() |
||
47 | N085939 | 2 | SCREW | B5 | ![]() |
||
48 | N085944 | 1 | FIELD SA 230V | B5 | |||
49 | N085936 | 4 | SCREW | B5 | ![]() |
||
50 | N085940 | 2 | BRUSH CAP | B5 | ![]() |
||
51 | N097998 | 1 | BRUSH PAIR 230V | B5 | ![]() |
||
52 | N085934 | 13 | SCREW | B5 | ![]() |
||
53 | N085937 | 1 | END CAP | B5 | |||
55 | N085946 | 2 | SCREW | B5 | ![]() |
||
56 | N085935 | 2 | BRUSH HOLDER | B5 | |||
57 | N097999 | 1 | FIELDCASE SA | B5 | |||
58 | N085945 | 4 | SCREW | B5 | ![]() |
||
59 | N112084 | 1 | HANDLE COVER | B5 | |||
60 | N086235 | 1 | SCREW | B5 | |||
62 | N095116 | 1 | LOCK HOOK | B5 | |||
63 | N085964 | 1 | CORD CLAMP | B5 | |||
64 | N085957 | 1 | CORD PROTECTOR | B5 | ![]() |
||
65 | N098003 | 1 | CORDSET | B5 | |||
66 | N110958 | 1 | SWITCH SA | B5 | |||
66 | N110958 | 1 | SWITCH SA | B5 | |||
67 | N085966 | 2 | SCREW | B5 | |||
69 | 5140120-52 | 2 | SCREW.SPECIAL | M8x30 THD FMG | B5 | ![]() |
|
70 | 5140120-52 | 2 | SCREW.SPECIAL | M8x30 THD FMG | B5 | ![]() |
|
71 | 5140120-52 | 2 | SCREW.SPECIAL | M8x30 THD FMG | B5 | ![]() |
|
72 | N085907 | 1 | CHAIN | B5 | |||
73 | N085916 | 1 | VICE JAW MOVEABLE | B5 | ![]() |
||
83 | N085914 | 1 | HEX KEY | B5 | |||
84 | N085919 | 1 | HOLDER TOOL | B5 | |||
85 | 5140120-53 | 1 | SCREW.SPECIAL | M10x20 MTL THD FMG | Inc 85 + 86 | B5 | ![]() |
85 | N085918 | 2 | SCREW | B5 | ![]() |
||
86 | N085917 | 2 | WASHER LOCK | B5 | ![]() |
||
87 | N085886 | 1 | FENCE | B5 | |||
101 | N086237 | 1 | PIN | B5 | ![]() |
||
104 | 5140120-54 | 1 | SCREW.SPECIAL | M6x12 MTL THD FMG | B5 | ![]() |
|
800 | 5140061-28 | 1 | GREASE | B5 | ![]() |
