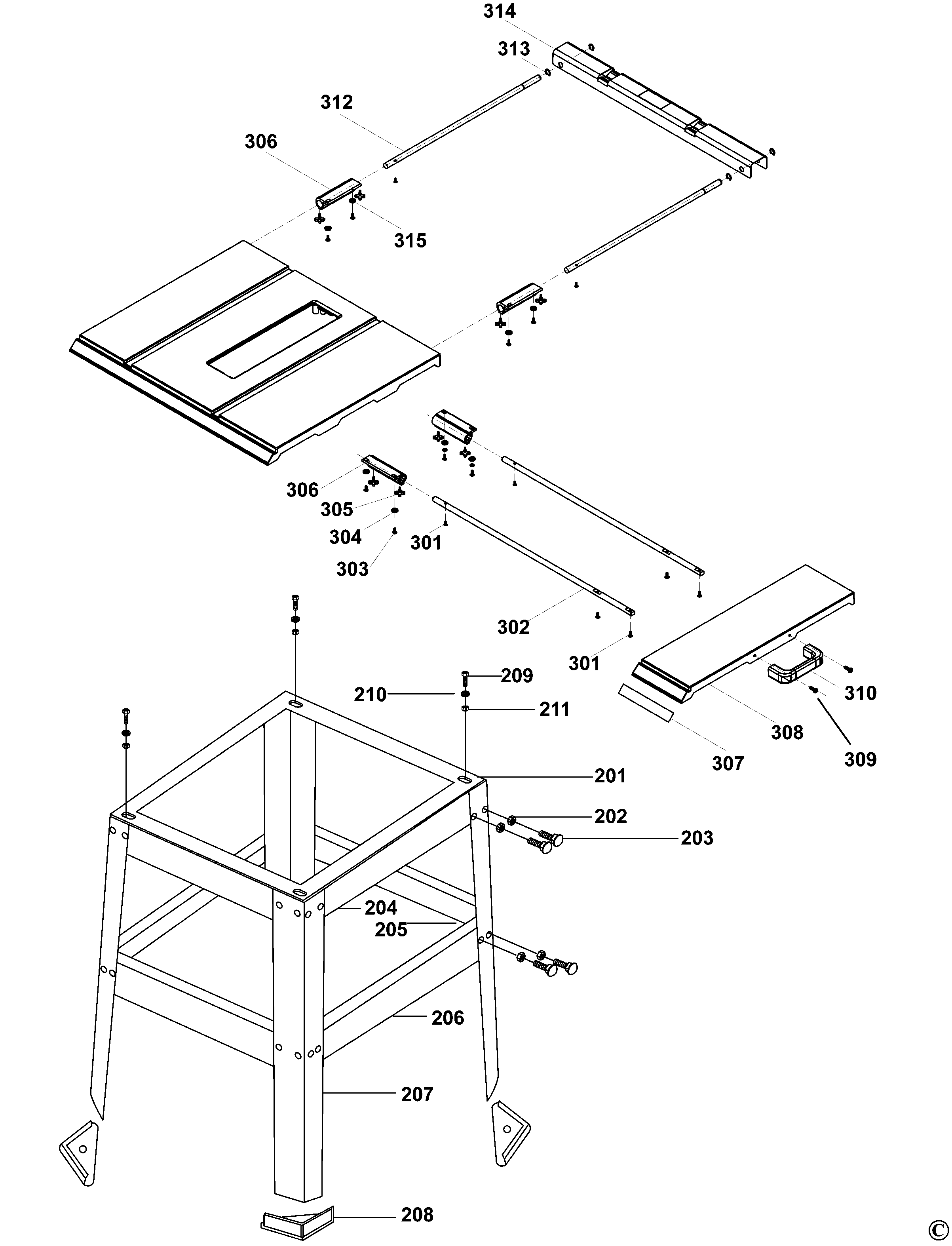

STST1825 SAW TABLE Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140147-55 | 4 | SCREW | B1 |  |
||
| 2 | 5140147-56 | 1 | BOARD | B1 |  |
||
| 3 | 5140147-57 | 1 | SWITCHBOX | B1 | |
||
| 4 | 5140147-58 | 8 | SCREW | B1 | |
||
| 5 | 5140147-59 | 1 | SWITCH | B1 | |
||
| 6 | 5140147-60 | 1 | SWITCH | B1 | |
||
| 7 | 5140147-61 | 2 | SCREW | B1 | |
||
| 8 | 5170014-29 | 1 | RATING LABEL | B1 | |
||
| 9 | 5140147-63 | 2 | LOCK NUT | B1 | |
||
| 10 | 5140147-64 | 1 | WHEEL | B1 | |
||
| 11 | 5140146-75 | 13 | WASHER | B1 | |
||
| 12 | 5140147-65 | 1 | HANDLE | B1 | |
||
| 13 | 5140147-66 | 2 | WASHER | B1 | |
||
| 14 | 5140147-67 | 1 | SCREW | B1 | |
||
| 15 | 5140147-68 | 2 | HOOK | B1 | |
||
| 16 | 5140147-69 | 2 | ANGLE | B1 | |
||
| 17 | 5140146-50 | 2 | SCREW | B1 | |
||
| 19 | 5140147-71 | 4 | SCREW | B1 | |
||
| 20 | 5140147-72 | 1 | RACK | B1 | |
||
| 21 | 5140147-73 | 3 | SCREW | B1 | |
||
| 22 | 5140147-36 | 9 | SCREW | B1 | |
||
| 23 | 5140147-74 | 1 | POINTER | B1 | |
||
| 24 | 5140146-14 | 5 | WASHER SPRING | B1 | |
||
| 25 | 5140147-75 | 7 | NUT M4 | B1 | |
||
| 26 | 5140147-76 | 4 | WASHER | B1 | |
||
| 27 | 5140160-23 | 1 | BODY | B1 | |
||
| 28 | 5140147-78 | 1 | SCREW | B1 | |
||
| 29 | 5140147-79 | 8 | SCREW | B1 | |
||
| 30 | 5140147-80 | 3 | WASHER | B1 | |
||
| 31 | 5140147-81 | 1 | BLOCK | B1 | |
||
| 32 | 5140147-82 | 2 | WASHER | B1 | |
||
| 33 | 5140147-83 | 1 | NUT M6 | B1 | |
||
| 34 | 5140147-84 | 1 | SPRING TORSION | B1 | |
||
| 35 | 5140147-85 | 1 | PIN | B1 | |
||
| 36 | 5140151-45 | 1 | AXIS | B1 | |
||
| 37 | 5140147-87 | 1 | SCREW | B1 | |
||
| 38 | 5140151-46 | 1 | HANDLE | B1 | |
||
| 39 | 5140147-89 | 1 | RING | B1 | |
||
| 40 | 5140147-90 | 1 | WASHER | B1 | |
||
| 41 | 5140147-91 | 1 | SCREW | B1 | |
||
| 42 | 5140147-92 | 1 | SLEEVE | B1 | |
||
| 43 | 5140147-93 | 1 | BLOCK | B1 | |
||
| 44 | 5140147-94 | 1 | SLEEVE | B1 | |
||
| 45 | 5140147-95 | 1 | BAR | B1 | |
||
| 46 | 5140147-96 | 10 | SCREW | B1 | |
||
| 47 | 5140147-97 | 2 | GEAR | B1 | |
||
| 48 | 5140147-98 | 2 | SCREW | B1 | |
||
| 49 | 5140147-99 | 1 | Seat | B1 | |
||
| 50 | 5140148-00 | 1 | SUPPORT | B1 | |
||
| 51 | 5140151-47 | 3 | SCREW | B1 | |
||
| 52 | 5140148-01 | 1 | BAR | B1 | |
||
| 53 | 5140148-02 | 1 | BLOCK | B1 | |
||
| 54 | 5140148-03 | 8 | WASHER | B1 | |
||
| 55 | 5140148-04 | 4 | SCREW | M6x16 | B1 | |
|
| 56 | 5140148-05 | 1 | BAR | B1 | |
||
| 58 | 5140148-07 | 1 | GUARD | B1 | |
||
| 59 | 5140148-08 | 2 | BOARD | B1 | |
||
| 60 | 5140148-09 | 4 | WASHER | B1 | |
||
| 61 | 5140148-10 | 1 | SUPPORT | B1 | |
||
| 62 | 5140151-48 | 1 | BAR | B1 | |
||
| 63 | 5140148-12 | 1 | BLOCK | B1 | |
||
| 64 | 5140148-13 | 4 | WASHER SPRING | B1 | |
||
| 65 | 5140148-14 | 2 | SCREW | B1 | |
||
| 66 | 5140146-24 | 2 | LOCK NUT | B1 | |
||
| 67 | 5140148-15 | 3 | WASHER | B1 | |
||
| 68 | 5140148-16 | 1 | BLOCK | B1 | |
||
| 69 | 5140148-17 | 1 | COVER | B1 | |
||
| 70 | 5140151-49 | 1 | NUT | B1 | |
||
| 71 | 5140148-19 | 1 | OUTER FLANGE | B1 | |
||
| 72 | 5170014-30 | 1 | BLADE | B1 | |
||
| 73 | 5140151-51 | 1 | INNER FLANGE | B1 | |
||
| 74 | 5140148-21 | 1 | BEARING HOLDER | B1 | |
||
| 75 | 5140148-22 | 1 | BEARING | B1 | |
||
| 76 | 5140148-23 | 1 | SPRING | B1 | |
||
| 77 | 5140148-24 | 1 | OUTPUT SHAFT | B1 | |
||
| 78 | 5140148-25 | 1 | KEY | B1 | |
||
| 79 | 5140148-26 | 1 | GEAR | B1 | |
||
| 80 | 5140148-27 | 1 | CIRCLIP | B1 | |
||
| 81 | 5140148-28 | 1 | BEARING,NEEDLE | B1 | |
||
| 82 | 5140148-29 | 1 | COVER | B1 | |
||
| 83 | 5140146-31 | 1 | LOCK NUT | B1 | |
||
| 84 | 5140148-30 | 3 | WASHER | B1 | |
||
| 85 | 5140148-31 | 1 | BEARING 6202 | ID: 15MM OD: 35MM | B1 | |
|
| 86 | 5140148-32 | 1 | BAR | B1 | |
||
| 87 | 5140150-96 | 1 | ARMATURE | 220V | B1 | |
|
| 88 | 5140148-34 | 1 | BEARING | B1 | |
||
| 89 | 5140148-35 | 2 | SCREW | B1 | |
||
| 90 | 5140150-97 | 1 | FIELD | 220V | B1 | |
|
| 91 | 5140148-37 | 1 | SHROUD | B1 | |
||
| 92 | 5140148-38 | 1 | HOUSING MOTOR | B1 | |
||
| 93 | 5140148-39 | 2 | BRUSH HOLDER 230V | B1 | |
||
| 94 | 5140147-54 | 2 | BRUSH 230V | 220V | B1 | |
|
| 95 | 5140148-41 | 1 | BRUSH CAP | B1 | |
||
| 96 | 5140148-42 | 3 | SCREW | B1 | |
||
| 97 | 5140145-99 | 3 | WASHER SPRING | B1 | |
||
| 98 | 5140148-43 | 3 | WASHER | B1 | |
||
| 99 | 5140148-44 | 1 | KNOB | B1 | |
||
| 100 | 5140148-45 | 2 | WASHER | B1 | |
||
| 101 | 5140148-46 | 1 | BOARD | B1 | |
||
| 102 | 5140148-47 | 1 | PIN | B1 | |
||
| 103 | 5140148-48 | 1 | NUT | B1 | |
||
| 104 | 5140148-49 | 1 | COVER | B1 | |
||
| 105 | 5140148-50 | 1 | HANDLE | B1 | |
||
| 106 | 5140148-51 | 1 | PLATE | B1 | |
||
| 107 | 5140148-52 | 1 | COVER | B1 | |
||
| 108 | 5140148-53 | 1 | FENCE | B1 | |
||
| 109 | 5140148-54 | 1 | PIN | B1 | |
||
| 110 | 5140148-55 | 1 | SPRING | B1 | |
||
| 111 | 5140148-56 | 2 | CIRCLIP | B1 | |
||
| 112 | 5140148-57 | 3 | SCREW | B1 | |
||
| 113 | 5140148-58 | 2 | SCREW | B1 | |
||
| 114 | 5140148-59 | 1 | BOARD | B1 | |
||
| 115 | 5140148-60 | 1 | Seat | B1 | |
||
| 116 | 5140148-61 | 2 | COLUMN | B1 | |
||
| 117 | 5140148-62 | 1 | SPRING TORSION | B1 | |
||
| 118 | 5140148-63 | 1 | BOARD | B1 | |
||
| 119 | 5140148-64 | 1 | GUARD | B1 | |
||
| 120 | 5140148-65 | 1 | COVER | B1 | |
||
| 121 | 5140148-66 | 1 | WASHER | B1 | |
||
| 122 | 5140148-67 | 1 | GUARD | B1 | |
||
| 123 | 5140148-68 | 1 | BOARD | B1 | |
||
| 124 | 5140148-69 | 1 | PIN | B1 | |
||
| 125 | 5140148-70 | 1 | GUARD | B1 | |
||
| 126 | 5140148-71 | 1 | SPRING | B1 | |
||
| 127 | 5140148-72 | 1 | PIN | B1 | |
||
| 128 | 5140148-73 | 1 | RIVING KNIFE | B1 | |
||
| 129 | 5140148-74 | 4 | SCREW | B1 | |
||
| 130 | 5140148-75 | 1 | PUSH BLOCK | B1 | |
||
| 131 | 5140148-76 | 1 | BOARD | B1 | |
||
| 132 | 5140148-77 | 1 | BOARD | B1 | |
||
| 133 | 5140148-78 | 1 | SCREW | B1 | |
||
| 134 | 5140146-38 | 1 | PIN | B1 | |
||
| 135 | 5140148-79 | 1 | KNOB SA | B1 | |
||
| 137 | 5140148-80 | 1 | LOCK HANDLE | B1 | |
||
| 138 | 5140148-81 | 1 | NUT | B1 | |
||
| 139 | 5140148-82 | 1 | PIN | B1 | |
||
| 140 | 5140148-83 | 1 | WHEEL | B1 | |
||
| 141 | 5140148-84 | 1 | BOARD | B1 | |
||
| 142 | 5140148-85 | 1 | TABLE WORK | B1 | |
||
| 143 | 5140148-86 | 1 | SCALE | B1 | |
||
| 144 | 5140148-87 | 1 | PLATE LOCK | B1 | |
||
| 145 | 5140148-88 | 1 | PIN | B1 | |
||
| 146 | 5140148-89 | 1 | BAR | B1 | |
||
| 147 | 5140148-90 | 1 | PIN | B1 | |
||
| 148 | 5140148-91 | 1 | NUT M6 | B1 | |
||
| 149 | 5140148-92 | 1 | MIRROR | B1 | |
||
| 150 | 5140148-93 | 1 | FENCE | B1 | |
||
| 151 | 5140148-94 | 1 | BOARD | B1 | |
||
| 152 | 5140148-95 | 1 | WASHER 6 | B1 | |
||
| 153 | 5140148-96 | 1 | SCREW | B1 | |
||
| 154 | 5140148-97 | 1 | FENCE | B1 | |
||
| 155 | 5140148-98 | 1 | BOARD | B1 | |
||
| 156 | 5140148-99 | 1 | SPRING | B1 | |
||
| 157 | 5140149-00 | 1 | BOARD | B1 | |
||
| 158 | 5140149-01 | 1 | WASHER | B1 | |
||
| 159 | 5140149-02 | 1 | BOARD | B1 | |
||
| 160 | 5140149-03 | 1 | CLAMP | B1 | |
||
| 161 | 5140149-04 | 1 | CLAMP | B1 | |
||
| 162 | 5140147-33 | 4 | SCREW | B1 | |
||
| 163 | 5140149-05 | 4 | SCREW | B1 | |
||
| 164 | 5140149-06 | 1 | PIECE | B1 | |
||
| 165 | 5140149-07 | 1 | BOARD | B1 | |
||
| 166 | 5140149-08 | 1 | CORD PROTECTOR | B1 | |
||
| 167 | 5170014-31 | 1 | CORDSET | B1 | |
||
| 168 | 5140149-09 | 2 | NUT M5 | B1 | |
||
| 169 | 5140149-10 | 4 | CIRCLIP | B1 | |
||
| 170 | 5140149-11 | 4 | SCREW | B1 | |
||
| 171 | 5140149-12 | 4 | BOARD | B1 | |
||
| 172 | 5140149-13 | 2 | SHAFT | B1 | |
||
| 173 | 5140149-14 | 2 | WHEEL | B1 | |
||
| 174 | 5140149-15 | 1 | CONNECTING WIRE | B1 | |
||
| 175 | 5170014-32 | 4 | SCREW | M5X10 screw | B1 | |
|
| 176 | 5170014-33 | 2 | SCREW | M5×12; M5X12 screw | B1 | |
|
| 177 | 5170014-34 | 1 | BOLT | M5x12; M5X12 BOLT | B1 | |
|
| 178 | 5170014-35 | 4 | SCREW | M4X10 SCREW | B1 | |
|
| 179 | 5170014-36 | 2 | SCREW | M4X 6 SCREW | B1 | |
|
| 180 | 5140153-01 | 1 | RING | B1 | |
||
| 181 | 5140153-02 | 2 | WRENCH SPECIAL | B1 | |
||
| 182 | 5140153-03 | 1 | WRENCH SPECIAL | B1 | |
||
| 183 | 5140153-04 | 1 | WRENCH SPECIAL | B1 | |
||
| 184 | 5140160-24 | 1 | BRAND LABEL | B1 | |
||
| 196 | 5170019-05 | 1 | HANDLE SA | B1 | |
||
| 197 | 5170019-06 | 1 | BLOCK SA | B1 | |
||
| 198 | 5170019-07 | 1 | COVER SA | B1 | |
||
| 199 | 5170019-08 | 1 | BOARD | B1 | |
||
| 200 | 5170019-09 | 1 | FENCE | B1 | |
||
| 201 | 5140151-52 | 2 | PIECE | B1 | |
||
| 202 | 5140149-17 | 28 | NUT M6 | B1 | |
||
| 203 | 5140149-18 | 24 | BOLT | B1 | |
||
| 204 | 5140151-53 | 2 | PIECE | B1 | |
||
| 205 | 5140151-54 | 2 | PIECE | B1 | |
||
| 206 | 5140151-55 | 2 | PIECE | B1 | |
||
| 207 | 5140151-56 | 4 | BAR | B1 | |
||
| 208 | 5140149-23 | 4 | FOOT | B1 | |
||
| 209 | 5140149-24 | 4 | BOLT | B1 | |
||
| 210 | 5140149-25 | 4 | WASHER | B1 | |
||
| 211 | 5140148-81 | 4 | NUT | B1 | |
||
| 301 | 5140149-26 | 8 | SCREW | B1 | |
||
| 302 | 5140167-87 | 2 | BAR | B1 | |
||
| 303 | 5140146-84 | 8 | SCREW | B1 | |
||
| 304 | 5140148-13 | 8 | WASHER SPRING | B1 | |
||
| 305 | 5140146-06 | 8 | SCREW | B1 | |
||
| 306 | 5140149-30 | 4 | Seat | B1 | |
||
| 307 | 5140149-31 | 1 | SCALE | B1 | |
||
| 308 | 5140149-32 | 1 | TABLE WORK | B1 | |
||
| 309 | 5140149-33 | 2 | SCREW | B1 | |
||
| 310 | 5140149-34 | 1 | HANDLE | B1 | |
||
| 312 | 5140153-06 | 2 | BAR | B1 | |
||
| 313 | 5140148-27 | 4 | CIRCLIP | B1 | |
||
| 314 | 5140149-27 | 1 | PLATE | B1 | |
||
| 315 | 5140147-80 | 8 | WASHER | B1 | |
