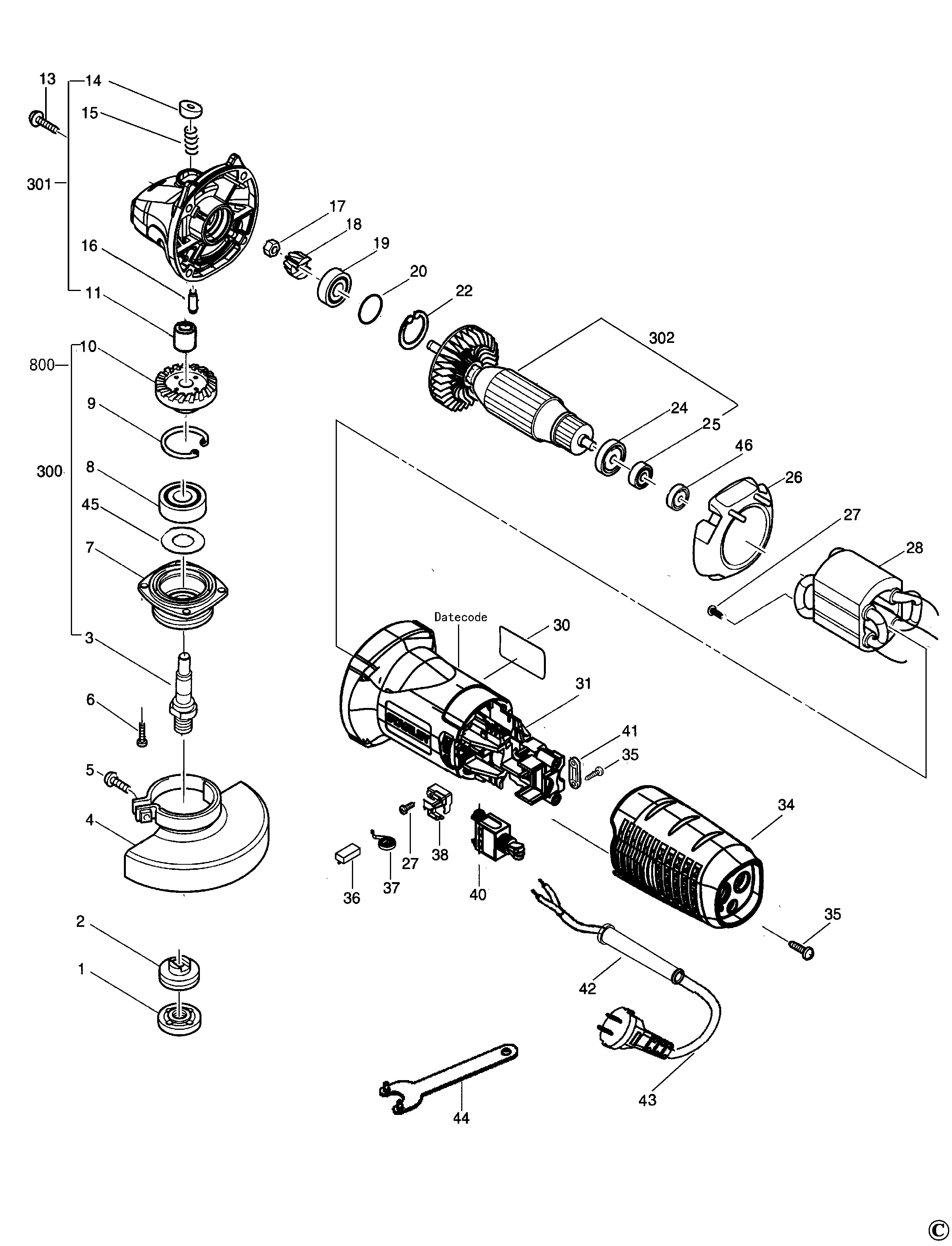

STGT6100 SMALL ANGLE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 4140304011 | 1 | OUTER FLANGE | B9 |  |
||
| 2 | 4140304006 | 1 | INNER FLANGE | B9 | |
||
| 3 | 4149204002 | 1 | SPINDLE | B9 |  |
||
| 4 | 4140304008 | 1 | GUARD SA | B9 | |
||
| 5 | 49203052 | 1 | SCREW | B9 | |
||
| 6 | 49209042 | 4 | SCREW | B9 | |
||
| 7 | 4149202001 | 1 | GEARCASE COVER | B9 | |
||
| 8 | 49111017 | 1 | BEARING | B9 | |
||
| 9 | 49207020 | 1 | CIRCLIP | B9 | |
||
| 10 | 4149210001 | 1 | GEAR | B9 | |
||
| 11 | 49101022 | 1 | BEARING NEEDLE | B9 | |
||
| 13 | 49206033 | 4 | SCREW | B9 | |
||
| 14 | 4149201001 | 1 | LOCK BUTTON | B9 | |
||
| 15 | 4140308003 | 1 | SPRING | B9 | |
||
| 16 | 4140304010 | 1 | LOCK PIN | B9 | |
||
| 17 | 49205005 | 1 | NUT | M6 | B9 | |
|
| 18 | 4149210002 | 1 | PINION | B9 | |
||
| 19 | 49111033 | 1 | BEARING | B9 | |
||
| 20 | 4149203001 | 1 | RUBBER SEAL | B9 | |
||
| 22 | 49207016 | 1 | CIRCLIP | B9 | |
||
| 24 | 4149201009 | 1 | WASHER INSULATING | B9 | |
||
| 25 | 49111035 | 1 | BEARING | B9 | |
||
| 26 | 4149201002 | 1 | BAFFLE | B9 | |
||
| 27 | 49206609 | 4 | SCREW | B9 | |
||
| 28 | 60314069 | 1 | FIELD SA | B9 | |
||
| 30 | 4149221026 | 1 | RATING LABEL | B9 | |
||
| 31 | 4149201007 | 1 | FIELDCASE | B9 | |
||
| 34 | 4149201008 | 1 | END CAP | B9 | |
||
| 35 | 49206018 | 4 | SCREW | SELF-TAPPING 4*15 | B9 | |
|
| 36 | 4140306001 | 1 | BRUSH PAIR | B9 | |
||
| 37 | 4149208001 | 1 | BRUSH SPRING | pair | B9 | |
|
| 38 | 4141707001 | 1 | BRUSH HOLDER | PAIR | B9 | |
|
| 40 | 4141705001 | 1 | SWITCH SA | B9 | |
||
| 41 | 4100301008 | 1 | CORD CLAMP | B9 | |
||
| 42 | 49303007 | 1 | CORD PROTECTOR | B9 | |
||
| 43 | Z49306054 | 1 | CORDSET | B9 | |
||
| 44 | 4140304007 | 1 | WRENCH SET | B9 | |
||
| 45 | 4140704002 | 1 | WASHER | 12 x 26.5 x 0.2 mm; 12*26.5*0.2 | B9 | |
|
| 46 | 4149203002 | 1 | SLEEVE BEARING | B9 | |
||
| 300 | 4149250001 | 1 | SPINDLE & GEAR SA | B9 | |
||
| 301 | 4149250007 | 1 | GEARCASE SA | B9 | |
||
| 302 | 4149250003 | 1 | ARMATURE SA | B9 | |
||
| 800 | 901186 | 1 | GREASE | Liyuan NO.2 - 1kg; liyuan NO.2 1kg | 0.015kg | B9 |
