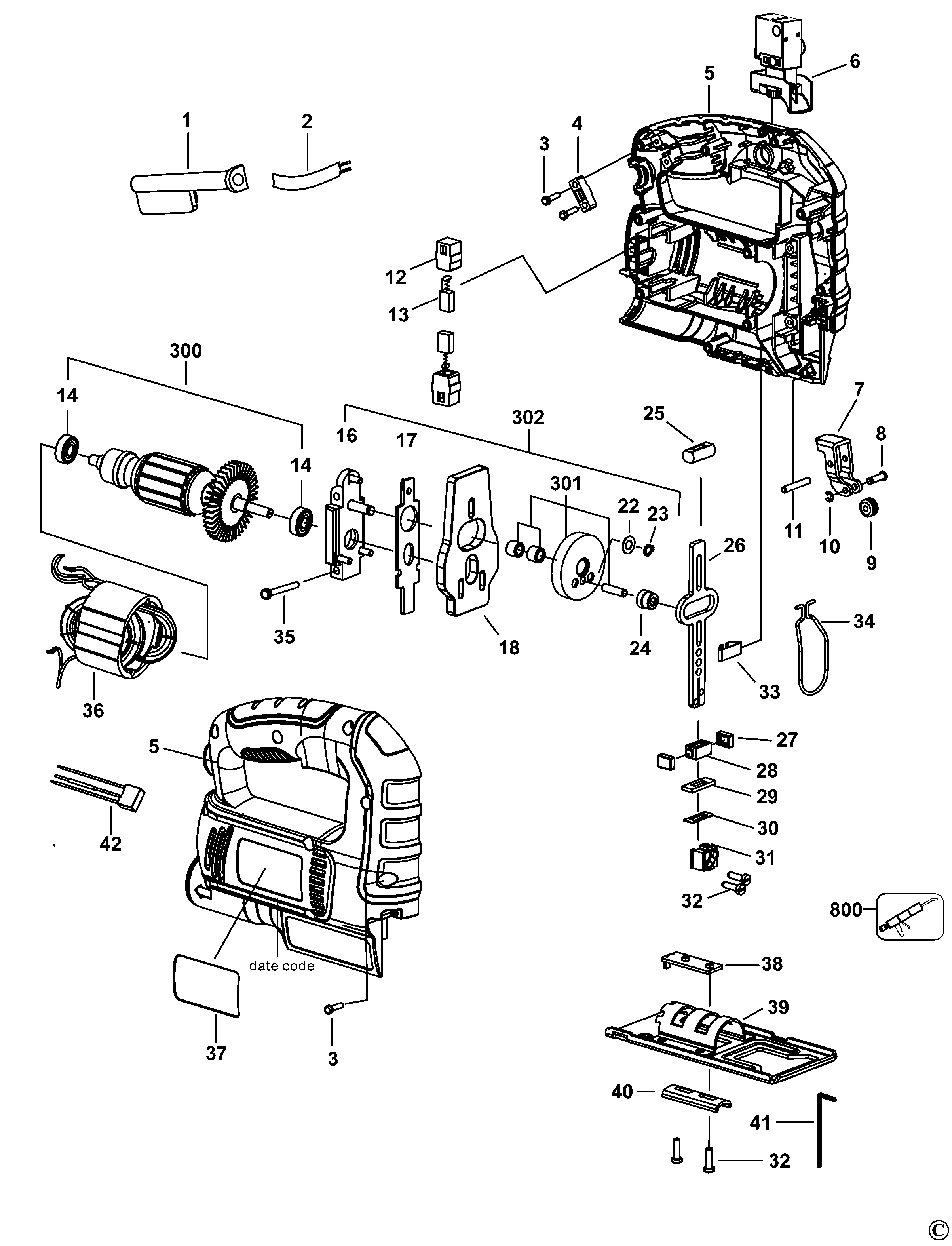

SJ45 JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N547083 | 1 | CORD PROTECTOR | B5 |  |
||
| 2 | N579614 | 1 | CORDSET | B5 |  |
||
| 3 | N468889 | 13 | SCREW | B5 | |
||
| 4 | 4100301008 | 1 | CORD CLAMP | B5 | |
||
| 5 | N543554 | 1 | HOUSING SA | B5 | |
||
| 6 | N544375 | 1 | SWITCH | B5 | |
||
| 7 | N544918 | 1 | SUPPORT | B5 | |
||
| 8 | N547070 | 1 | PIN | B5 | |
||
| 9 | N547069 | 1 | ROLLER | B5 | |
||
| 10 | N547073 | 1 | RING | B5 | |
||
| 11 | N543596 | 1 | PIN | B5 | |
||
| 12 | N547067 | 1 | BRUSH HOLDER | B5 | |
||
| 13 | N568940 | 1 | BRUSH | B5 | |
||
| 14 | 49111013 | 2 | BEARING | B5 | |
||
| 16 | N543557 | 1 | PLATE | B5 | |
||
| 17 | N543562 | 1 | SHAFT | B5 | |
||
| 18 | N543564 | 1 | COUNTER BALANCE | B5 | |
||
| 22 | N543575 | 1 | WASHER | B5 | |
||
| 23 | N547068 | 1 | RING | B5 | |
||
| 24 | N543584 | 1 | DRIVE ROLLER | B5 | |
||
| 25 | 810893 | 1 | BEARING | B5 | |
||
| 26 | N543591 | 1 | SHAFT | B5 | |
||
| 27 | N543592 | 2 | CARRIER | B5 | |
||
| 28 | N544379 | 1 | BEARING | B5 | |
||
| 29 | 90532150 | 1 | FELT SEAL | B5 | |
||
| 30 | 582948-00 | 1 | PLATE | B5 | |
||
| 31 | 90515265 | 1 | BLADE CLAMP | B5 | |
||
| 32 | N547074 | 4 | SCREW | B5 | |
||
| 33 | N544380 | 1 | WASHER | B5 | |
||
| 34 | N596771 | 1 | COVER | B5 | |
||
| 35 | N547082 | 2 | SCREW | B5 | |
||
| 36 | N579964 | 1 | FIELD SA | B5 | |
||
| 37 | N547649 | 1 | RATING PLATE | B5 | |
||
| 38 | N546817 | 1 | PLATE LOCK | B5 | |
||
| 39 | N546815 | 1 | BASE PLATE | B5 | |
||
| 40 | N546816 | 1 | REST PLATE | B5 | |
||
| 41 | N548193 | 1 | WRENCH PIN | B5 | |
||
| 42 | N588375 | 1 | CAPACITOR | B5 | |
||
| 300 | N579298 | 1 | ARMATURE SA | B5 | |
||
| 301 | N579299 | 1 | GEAR SA | B5 | |
||
| 302 | N619486 | 1 | GEAR SA | B5 | |
||
| 800 | 901186 | 1 | GREASE | Liyuan NO.2 - 1kg; liyuan NO.2 1kg | B5 |
