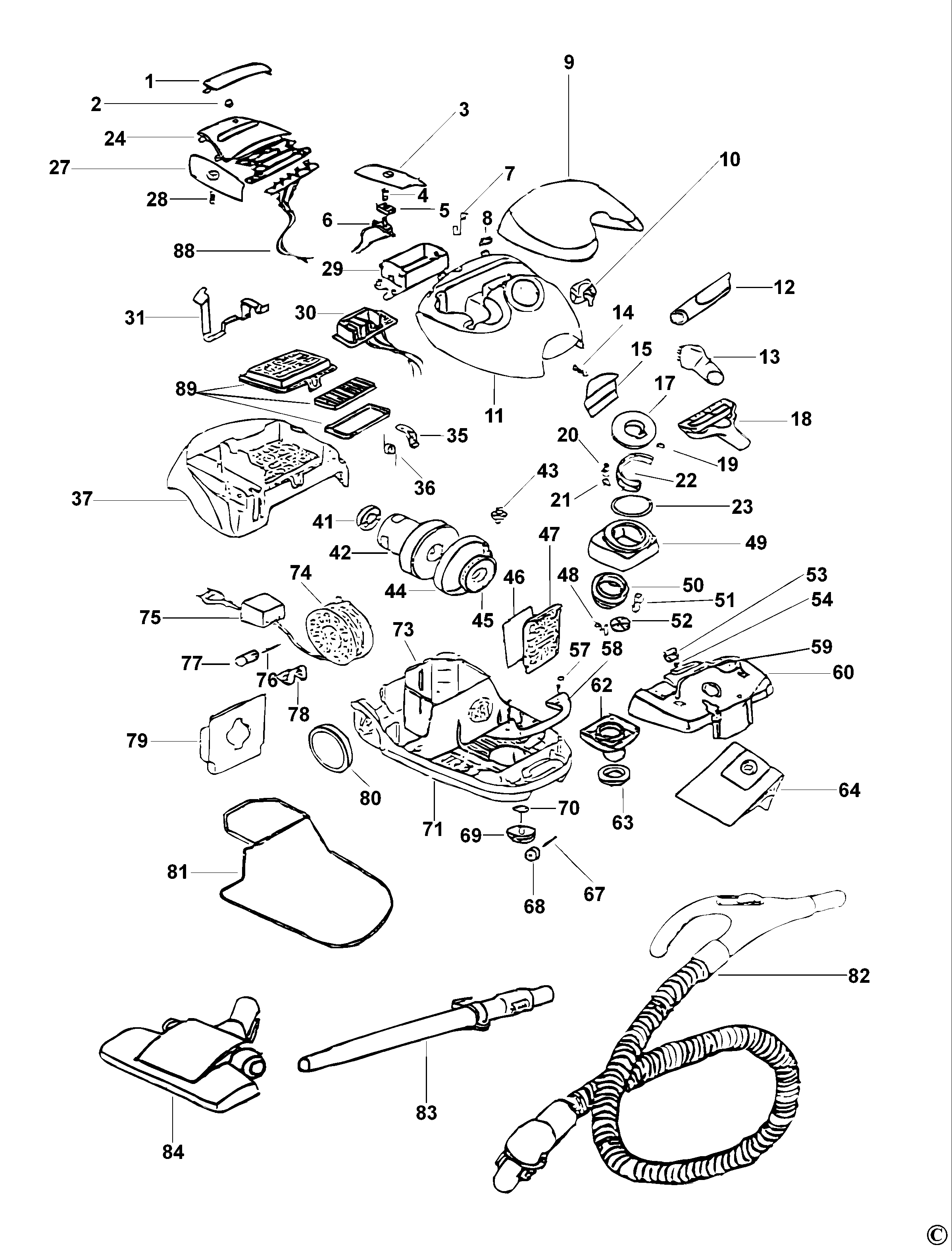

VM700 VACUUM CLEANER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 6010098-01 | 1 | COVER | B1 |  |
||
| 2 | 6010094-02 | 1 | COVER | LIGHT COVER | B1 | |
|
| 3 | 6010098-03 | 1 | SWITCH COVER | B1 | |
||
| 4 | 6010094-04 | 1 | SPRING | SWITCH COVER SPRING | B1 | |
|
| 5 | 6010094-05 | 1 | SWITCHBOX | B1 | |
||
| 6 | 6010000-12 | 1 | SWITCH | B1 | |
||
| 7 | 6010094-07 | 1 | SPRING | ACCESSORY COVER SPRI | B1 | |
|
| 8 | 6010094-08 | 1 | SHAFT | SHAFT-1 | B1 | |
|
| 9 | 6010098-09 | 1 | COVER | B1 | |
||
| 10 | 6010098-10 | 1 | LOCK | B1 | |
||
| 11 | 6010098-11 | 1 | COVER | B1 | |
||
| 12 | 6010094-12 | 1 | NOZZLE | SERVICE NOZZLE | B1 | |
|
| 13 | 6010094-13 | 1 | NOZZLE | B1 | |
||
| 14 | 6010094-14 | 1 | SPRING | FRONT COVER LOCK SPR | B1 | |
|
| 15 | 6010098-15 | 1 | PLATE | B1 | |
||
| 17 | 6010094-17 | 1 | RING | SUCTION RING | B1 | |
|
| 18 | 6010094-18 | 1 | NOZZLE | FURNITURE NOZZLE | B1 | |
|
| 19 | 6010098-19 | 1 | DOOR | SMALL DOOR RIGHT | B1 | |
|
| 20 | 6010098-20 | 1 | SPRING | SMALL DOOR SPRING | B1 | |
|
| 21 | 6010098-21 | 1 | DOOR | SMALL DOOR LEFT | B1 | |
|
| 22 | 6010098-22 | 1 | PLATE | SUCTION RING FIXING | B1 | |
|
| 23 | 6010098-23 | 1 | PLATE | SUCTION PLATE SEAL R | B1 | |
|
| 24 | 6010098-24 | 1 | CONTROL PANEL | B1 | |
||
| 27 | 6010098-27 | 1 | PEDAL | B1 | |
||
| 28 | 6010094-28 | 1 | SPRING | CORD REWINDER PEDAL | B1 | |
|
| 29 | 6010098-29 | 1 | SUPPORT | SWITCH PEDAL SUPPORT | B1 | |
|
| 30 | 6010098-32 | 1 | PCB 115V | B1 | |
||
| 30 | 6010098-30 | 1 | PCB 220V | B1 | |
||
| 31 | 6010094-31 | 1 | PLATE | FRONT COVER FIXING P | B1 | |
|
| 35 | 6010098-35 | 1 | PLATE | SECURE PLATE | B1 | |
|
| 36 | 6010094-36 | 1 | SPRING | SECURE PLATE SPRING | B1 | |
|
| 37 | 6010098-37 | 1 | PLATE | B1 | |
||
| 41 | 6010096-41 | 1 | SEAL | B1 | |
||
| 42 | 6010096-42 | 1 | MOTOR 220V | B1 | |
||
| 42 | 6010096-40 | 1 | MOTOR 115V | B1 | |
||
| 43 | 6010094-43 | 1 | SENSOR | B1 | |
||
| 44 | 6010096-44 | 1 | RING | BIG RING-1 | B1 | |
|
| 45 | 6010096-45 | 1 | RING | B1 | |
||
| 46 | 6010094-46 | 1 | FILTER | B1 | |
||
| 47 | 6010094-47 | 1 | INLET | B1 | |
||
| 48 | 6010098-48 | 1 | PLATE | CONNECTING PLATE LEF | B1 | |
|
| 49 | 6010098-49 | 1 | PLATE | SUCTION PLATE | B1 | |
|
| 50 | 6010094-50 | 1 | SUCTION GROUP | SUCTION HOLE | B1 | |
|
| 51 | 6010098-51 | 1 | PLATE | CONNECTING PLATE RIG | B1 | |
|
| 52 | 6010094-52 | 1 | SUPPORT | B1 | |
||
| 53 | 6010094-53 | 1 | PLATE | DUST BAG STAND LOCK | B1 | |
|
| 54 | 6010094-54 | 1 | SPRING | DUST BAG STAND LOCK | B1 | |
|
| 57 | 6010094-57 | 1 | COVER | SCREW COVER | B1 | |
|
| 58 | 6010096-58 | 1 | HANDLE COVER | B1 | |
||
| 59 | 6010094-59 | 1 | HANDLE | B1 | |
||
| 60 | 6010094-60 | 1 | STAND | B1 | |
||
| 62 | 6010094-62 | 1 | COVER | SUCTION PLATE LOWER | B1 | |
|
| 63 | 6010094-63 | 1 | RING | DUST RING | B1 | |
|
| 64 | 6010094-64 | 1 | DUST BAG SA | CLOTH DUST BAG | B1 | ||
| 64 | 6010094-85 | 1 | DUST BAG SA | B1 | |
||
| 67 | 6010094-67 | 1 | SHAFT | SHAFT-2 | B1 | |
|
| 68 | 6010094-68 | 1 | WHEEL | SMALL WHEEL | B1 | |
|
| 69 | 6010094-69 | 1 | WHEEL | B1 | |
||
| 70 | 6010094-70 | 1 | WHEEL SUPPORT | UNIVERSAL WHEEL SUPP | B1 | |
|
| 71 | 6010096-71 | 1 | BASE | B1 | |
||
| 73 | 6010098-73 | 1 | PLATE | CORD FIXING PLATE | B1 | |
|
| 74 | 6010094-73 | 1 | RETURN DEVICE ASSEMBLY | 220V | B1 | |
|
| 74 | 6010094-74 | 1 | RETURN DEVICE ASSEMBLY | 115V | B1 | |
|
| 75 | 6010094-75 | 1 | WINDOW | B1 | |
||
| 76 | 6010094-76 | 1 | SHAFT | SHAFT-3 | B1 | |
|
| 77 | 6010094-77 | 1 | WHEEL | CORD OUTLET WHEEL | B1 | |
|
| 78 | 6010094-78 | 1 | OUTLET | CORD OUTLET FRAME | B1 | |
|
| 79 | 6010094-79 | 1 | PLATE | B1 | |
||
| 80 | 6010094-80 | 1 | WHEEL | BIG WHEEL | B1 | |
|
| 81 | 6010096-81 | 1 | SEAL | SEAL BAR | B1 | |
|
| 82 | 6010098-85 | 1 | HOSE SA | 220V | B1 | |
|
| 82 | 6010098-82 | 1 | HOSE SA | 115V | B1 | |
|
| 83 | 6010095-25 | 1 | TUBE SA | B1 | |
||
| 84 | 6010094-84 | 1 | BRUSH SA | FLOOR | B1 | |
|
| 88 | 6010098-88 | 1 | LED | B1 | |
||
| 89 | 6010096-89 | 1 | FILTER SA | B1 | |
