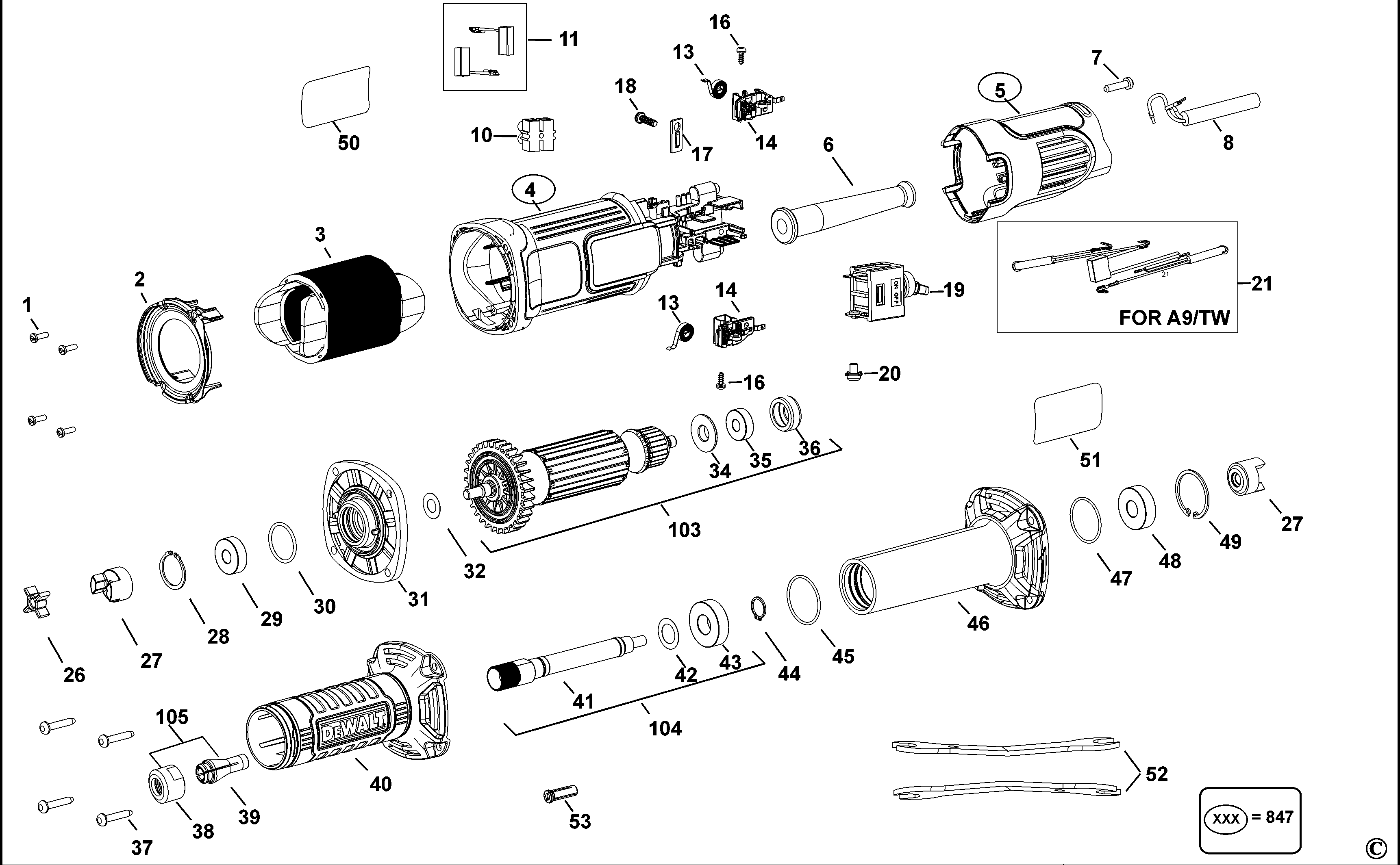

DWE886T DIE GRINDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 330065-25 | 4 | SCREW | XD |  |
||
| 2 | N132864 | 1 | BAFFLE | XD | |
||
| 3 | N386328 | 1 | FIELD SA | XD | |||
| 4 | N121287-01 | 1 | FIELDCASE | XD |  |
||
| 5 | N121288-01 | 1 | HOUSING | XD | |
||
| 6 | N447519 | 1 | CORD PROTECTOR | XD | |
||
| 7 | N017839 | 1 | SCREW | XD | |
||
| 8 | N038249 | 1 | CORDSET | XD | XD | |
|
| 10 | 655417-00 | 1 | TERMINAL BLOCK | XD | |||
| 11 | N175105 | 1 | BRUSH PAIR SA | XD | |||
| 13 | N097703 | 2 | SPRING | XD | |
||
| 14 | N097702 | 2 | BRUSHBOX | XD | |
||
| 16 | 593478-00 | 2 | SCREW | M3 X 8 | XD | |
|
| 17 | 619328-00 | 1 | CORD CLAMP | XD | |
||
| 18 | 562097-00 | 1 | SCREW | XD | |
||
| 19 | N032282 | 1 | SWITCH | XD | |
||
| 20 | 627647-00 | 1 | SCREW | XD | |
||
| 26 | N275347 | 1 | DRIVER | XD | |
||
| 27 | N275349 | 2 | COUPLING | XD | |
||
| 28 | N286522 | 1 | RING | XD | |
||
| 29 | N175104 | 1 | BEARING | XD | |
||
| 30 | N119639 | 1 | O RING | XD | |
||
| 31 | N283650 | 1 | STATOR | XD | |
||
| 32 | N213812 | 1 | WASHER | XD | |
||
| 34 | N130916 | 1 | BEARING | XD | |
||
| 35 | N101228 | 1 | WASHER | XD | |
||
| 36 | 641823-00 | 1 | SLEEVE | XD | |
||
| 37 | N354900 | 4 | SCREW | XD | |
||
| 38 | N382458 | 1 | NUT | XD | |
||
| 39 | N382457 | 1 | COLLET | XD | |
||
| 40 | N287179 | 1 | NOSE | XD | |
||
| 41 | N275348 | 1 | OUTPUT SHAFT | XD | |
||
| 42 | 638229-00 | 1 | WASHER | XD | |
||
| 43 | 605040-24 | 1 | BEARING | XD | |
||
| 44 | N027674 | 1 | RETAINER | XD | |
||
| 45 | N398026 | 1 | O RING | XD | |
||
| 46 | N275343 | 1 | NOSE | XD | |
||
| 47 | N308579 | 1 | O RING | XD | |
||
| 48 | 605040-17 | 1 | BEARING BALL | XD | |
||
| 49 | N184706 | 1 | RETAINER | XD | |
||
| 50 | N319751 | 1 | RATING LABEL | XD | |||
| 51 | N149175 | 1 | BRAND LABEL | XD | |
||
| 52 | N332459 | 2 | SPANNER | XD | |
||
| 53 | N275352 | 1 | COLLET | XD | |
||
| 103 | N386326 | 1 | ARMATURE SA | XD | |
||
| 104 | N396960 | 1 | SPINDLE SA | XD | |||
| 105 | N382456 | 1 | COLLET & NUT SA | XD | |||
| 847 | N402109 | 1 | SERVICE KIT | XD |
