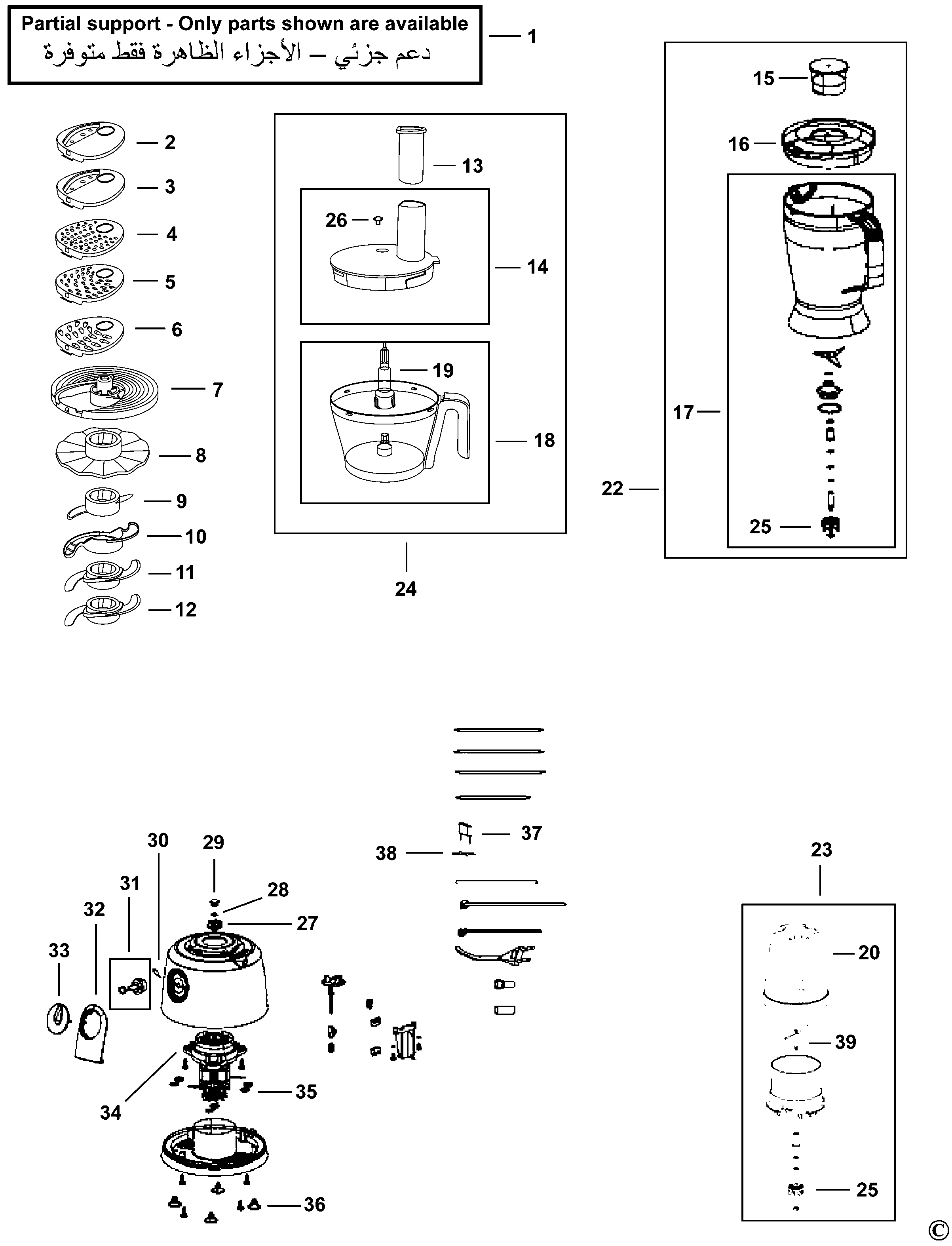

FX1075 FOOD PROCESSOR Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 1230.30P3 | 1 | TIP | B5 | |||
| 2 | 6010407-52 | 1 | DISC | FINE | B5 | ||
| 3 | 6010407-53 | 1 | DISC | MEDIUM | B5 | ||
| 4 | 6010407-54 | 1 | DISC | GRATING | B5 | ||
| 5 | 6010407-55 | 1 | DISC | FINE | B5 | ||
| 6 | 6010407-56 | 1 | DISC | COARSE | B5 | ||
| 7 | 6010407-57 | 1 | HOLDER | DISC | B5 | ||
| 8 | 6010407-58 | 1 | DISC | EMULSIFYING | B5 | ||
| 9 | 6010407-59 | 1 | BLADE | KNEADING | B5 | ||
| 10 | 6010407-60 | 1 | COVER | B5 | |||
| 11 | 6010407-61 | 1 | BLADE | BOTTOM | B5 | ||
| 12 | 6010407-62 | 1 | BLADE | TOP | B5 | ||
| 13 | 6010407-63 | 1 | PUSHER | B5 | |||
| 14 | 6010407-64 | 1 | COVER | B5 | |||
| 15 | 6010407-65 | 1 | CUP | B5 | |||
| 16 | 6010407-66 | 1 | COVER | B5 | |||
| 17 | 6010407-67 | 1 | JAR | B5 | |||
| 18 | 6010407-68 | 1 | BOWL | B5 |  |
||
| 19 | 6010407-69 | 1 | DRIVE SHAFT | B5 | |||
| 20 | 6010407-70 | 1 | COVER | B5 | |||
| 22 | 6010407-72 | 1 | JAR | SA | B5 | |
|
| 23 | 6010407-73 | 1 | GRINDER SA | B5 | |||
| 24 | 6010407-74 | 1 | BOWL | SA | B5 | |
|
| 25 | 6010407-75 | 2 | COUPLING | B5 | |||
| 26 | 6010407-76 | 1 | PLUG | B5 | |||
| 27 | 6010407-77 | 1 | COUPLING | B5 | |||
| 28 | 6010407-78 | 3 | NUT | B5 | |||
| 29 | 6010407-79 | 1 | CAP | B5 | |||
| 30 | 6010407-80 | 1 | DIODE | B5 | |||
| 31 | 6010407-81 | 1 | SWITCH SA | B5 | |||
| 32 | 6010407-82 | 1 | PANEL | B5 | |||
| 33 | 6010407-83 | 1 | KNOB | B5 | |||
| 34 | 6010407-84 | 1 | MOTOR | B5 | |
||
| 35 | 6010407-85 | 3 | INSULATOR | B5 | |||
| 36 | 6010407-86 | 4 | FEET | B5 | |||
| 37 | 6010407-87 | 1 | CAPACITOR | B5 | |||
| 38 | 6010407-88 | 1 | RESISTOR | B5 | |||
| 39 | 6010407-89 | 1 | BLADE | B5 |
