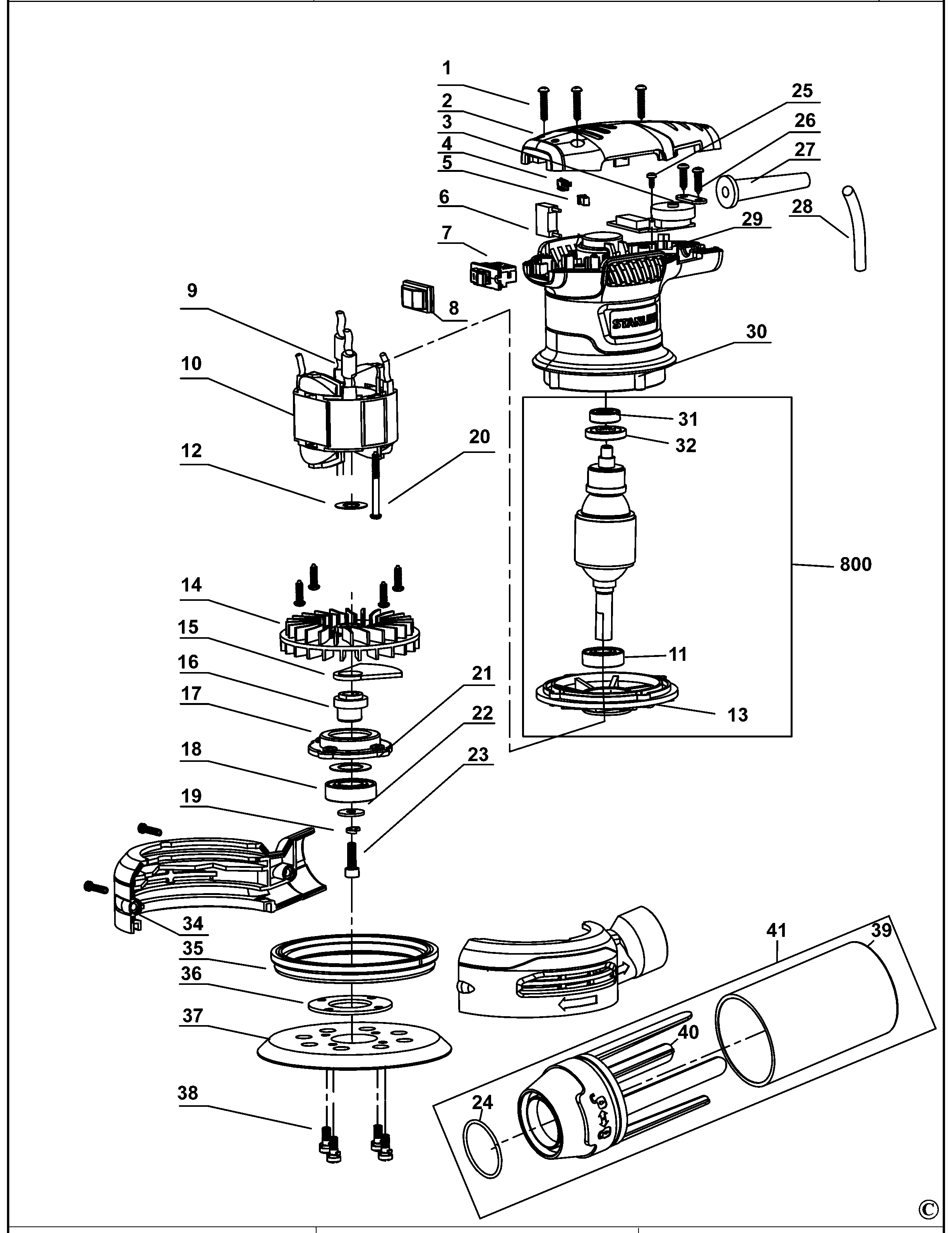

SS30 SANDER Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 5140136-43 | 11 | SCREW | XD |  |
||
| 2 | 5140231-17 | 1 | COVER | XD |  |
||
| 3 | 5140231-18 | 1 | PCB | XD | |
||
| 4 | 5140231-21 | 2 | BRUSH HOLDER | XD | |
||
| 5 | 5140231-22 | 1 | BRUSH SA | XD | |
||
| 7 | 5140231-23 | 1 | SWITCH | XD | |
||
| 8 | 5140231-24 | 1 | COVER | XD | |
||
| 10 | 5140231-25 | 1 | STATOR | XD | |
||
| 11 | 5140187-33 | 1 | BEARING | XD | |
||
| 12 | 5140231-27 | 1 | WASHER | XD | |
||
| 13 | 5140231-28 | 1 | BEARING SET | XD | |
||
| 14 | 5140231-29 | 1 | FAN | XD | |
||
| 15 | 5140231-30 | 1 | BALANCE WEIGHT | XD | |
||
| 16 | 5140231-31 | 1 | ECCENTRIC | XD | |
||
| 17 | 5140231-32 | 1 | BEARING HOLDER | XD | |
||
| 18 | 5170034-40 | 1 | BEARING 6002 2RS | XD | |
||
| 19 | 5140231-33 | 1 | WASHER | XD | |
||
| 20 | 5140231-34 | 2 | SCREW | XD | |
||
| 21 | 5140231-35 | 1 | WASHER | XD | |
||
| 22 | 5140231-36 | 1 | WASHER | XD | |
||
| 23 | 5140231-37 | 1 | SCREW | XD | |
||
| 24 | 5140173-15 | 1 | O RING | XD | |
||
| 25 | 5140231-38 | 1 | SCREW | XD | |
||
| 26 | 5140187-29 | 1 | CLAMP | XD | |
||
| 27 | 5140187-27 | 1 | CORD PROTECTOR | XD | |
||
| 28 | 5170035-20 | 1 | CORDSET | XD | |||
| 29 | 5140187-51 | 1 | BLOCK | XD | |
||
| 30 | 5140231-42 | 1 | HOUSING | XD | |
||
| 31 | 5140136-46 | 1 | BEARING | XD | |
||
| 32 | 5140231-43 | 1 | INSULATOR | XD | |
||
| 34 | 5140231-46 | 1 | HOUSING | XD | |
||
| 35 | 5140231-47 | 1 | RING | XD | |
||
| 36 | 5140231-48 | 1 | PLATE | XD | |
||
| 37 | 5140231-49 | 1 | PLATE | XD | |
||
| 38 | 5140231-50 | 4 | SCREW | XD | |
||
| 39 | 5140231-51 | 1 | DUSTBAG | XD | |
||
| 40 | 5140231-52 | 1 | HOLDER | XD | |
||
| 41 | 5170035-19 | 1 | DUSTBAG | XD | |||
| 800 | 5170034-21 | 1 | ARMATURE SA | XD | |
