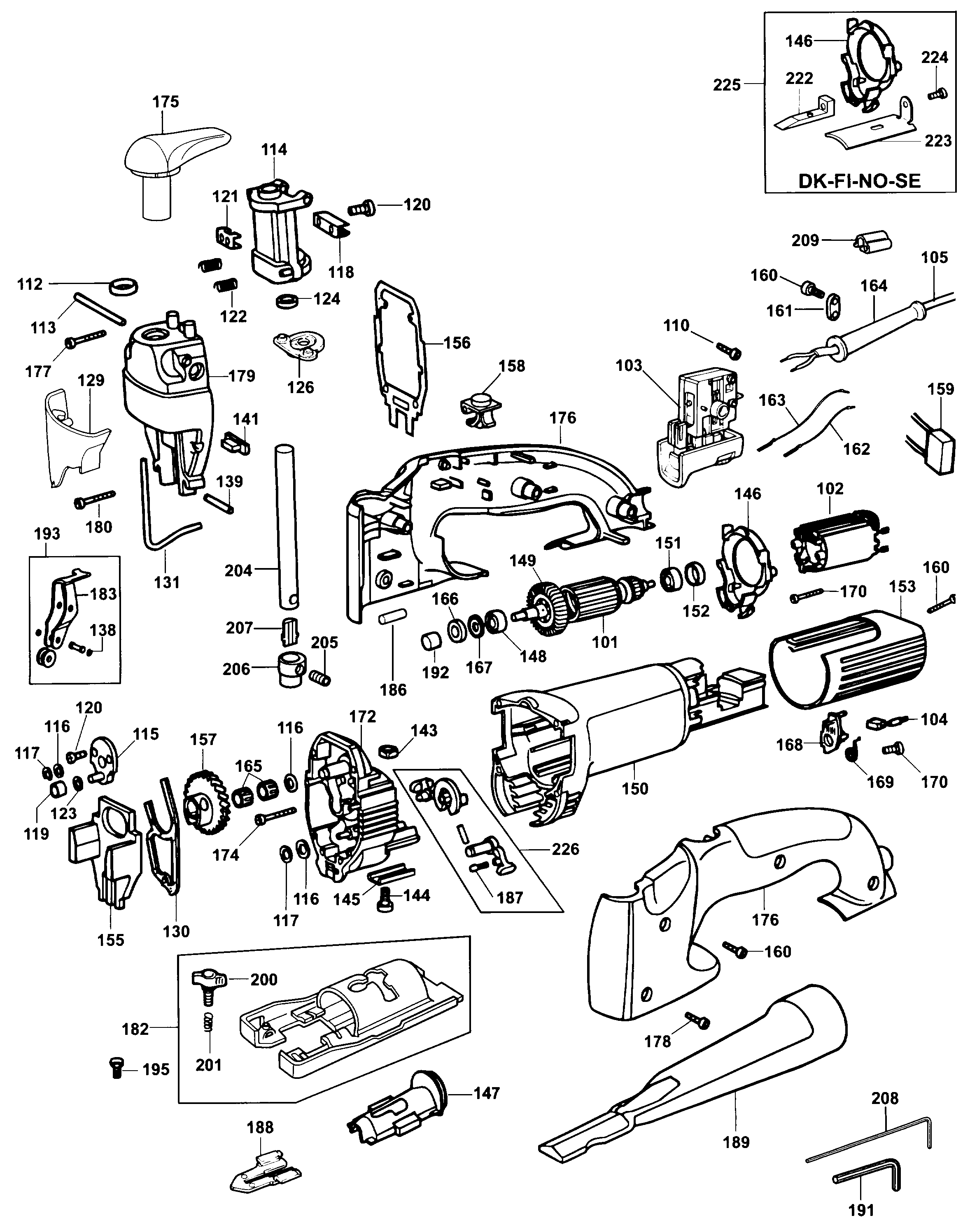

ST82K JIGSAW Type 1 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 101 | 402061-02 | 1 | ARMATURE 230V | GB 240V | GB |  |
|
| 101 | 402061-01 | 1 | ARMATURE 115V | GB 115V | GB | |
|
| 102 | 402051-01 | 1 | FIELD 115V | GB 115V | GB | |
|
| 102 | 402051-02 | 1 | FIELD 230V | GB 240V | GB | |
|
| 103 | 402181-01 | 1 | SWITCH | GB | |
||
| 104 | 930897-00 | 2 | BRUSH 115-120V | GB 115V | GB | ||
| 104 | 939539-01 | 2 | BRUSH CUT OFF | GB 240V | GB |  |
|
| 105 | 949770-46 | 1 | CORDSET | GB 240V | GB | |
|
| 105 | 330061-04 | 1 | CORDSET (M/PLUG) | GB 115V | GB | |
|
| 110 | 949704-02 | 2 | SCREW | GB | |
||
| 112 | 402154-00 | 1 | RUBBER | GB | |
||
| 113 | 402105-00 | 1 | PIN | GB | |
||
| 114 | 402153-00 | 1 | SUPPORT | GB | |
||
| 115 | 402161-00SV | 1 | ECCENTRIC SA | GB | |
||
| 116 | 932302-00 | 3 | WASHER | GB | |
||
| 117 | 949728-04 | 2 | CIRCLIP | GB | |
||
| 118 | 402118-00 | 1 | YOKE | GB | |
||
| 119 | 402155-00 | 1 | BUSH | GB | |
||
| 120 | 720685-00 | 4 | SCREW.TEMP | GB | |
||
| 121 | 399146-00 | 1 | CLAMP | GB | |||
| 122 | 933524-00 | 2 | SPRING | GB | |
||
| 123 | 949876-20 | 1 | WASHER | GB | |
||
| 124 | 949400-00 | 1 | FELT | GB | |
||
| 126 | 402177-00 | 1 | SEAL SA | GB | |
||
| 129 | 389599-00 | 1 | SCREEN | GB | |
||
| 130 | 402097-00 | 1 | CAM | GB | |
||
| 131 | 402116-00 | 2 | GUARD | GB | |
||
| 138 | 949728-03 | 2 | CIRCLIP | GB | |
||
| 139 | 330041-29 | 1 | PIN | GB | |
||
| 141 | 402151-00 | 1 | RUBBER | GB | |
||
| 143 | 860310-00 | 1 | NUT | GB | |
||
| 144 | 390908-00 | 1 | SCREW | GB | |
||
| 145 | 402652-00 | 1 | PLATE | GB | |
||
| 146 | 402060-00 | 1 | BAFFLE | GB | |
||
| 146 | 402060-00 | 1 | BAFFLE | SE DC>9821 | GB | |
|
| 146 | 402060-01 | 1 | BAFFLE FAN | SE DC<9822 | GB | |
|
| 147 | 402176-00 | 1 | ADAPTOR | GB | |
||
| 148 | 330003-59 | 1 | BEARING | GB | |
||
| 149 | 402183-00 | 1 | FAN | GB | |
||
| 150 | 402059-00 | 1 | FIELDCASE | GB | |
||
| 151 | 330003-02 | 1 | BEARING | GB | |
||
| 152 | 930029-00 | 1 | HOLDER BEARING | GB | |
||
| 153 | 402186-00 | 1 | END CAP | GB | |
||
| 155 | 402098-00 | 1 | COUNTERWEIGHT | GB | |
||
| 156 | 402112-00 | 1 | GASKET | GB | |
||
| 157 | 402092-00 | 1 | GEAR | GB | |
||
| 158 | 402067-00 | 1 | BUTTON LOCK-ON | GB | |
||
| 159 | 949877-01 | 1 | CAPACITOR | GB | |
||
| 160 | 330065-08 | 6 | SCREW | M4x18 T20 | GB | |
|
| 161 | 935616-00 | 1 | CORD CLAMP | GB | |
||
| 162 | 949801-90 | 1 | LEAD BLUE | GB | |
||
| 163 | 949801-93 | 1 | LEAD BLACK | GB | |
||
| 164 | 401088-01 | 1 | CORD PROTECTOR | GB | |
||
| 165 | 402091-00 | 2 | BEARING | GB | |
||
| 166 | 949400-03 | 1 | FELT | GB | |
||
| 167 | 402125-00 | 1 | COVER | GB | |
||
| 168 | 949880-05 | 2 | BRUSH HOLDER SA | INCL. SPRING | GB | |
|
| 169 | 930090-00 | 2 | BRUSH SPRING | GB | |||
| 170 | 931469-02 | 2 | SCREW | GB | |
||
| 172 | 402127-00 | 1 | GEARCASE SA | GB | |
||
| 174 | 930079-01 | 2 | SCREW | GB | |
||
| 175 | 402134-00 | 1 | KNOB | GB | |
||
| 176 | 603461-00 | 1 | HANDLE & COVER | GB | |
||
| 177 | 949870-08 | 2 | SCREW | GB | |
||
| 178 | 330045-06 | 2 | SCREW | GB | |
||
| 179 | 389870-02 | 1 | GEARCASE COVER | GB | |
||
| 180 | 930082-01 | 2 | SCREW | GB | |
||
| 182 | 429802-01 | 1 | REPAIR KIT | GB | |
||
| 183 | 388577-00 | 1 | SUPPORT SA | GB | |
||
| 186 | 941374-01 | 1 | RUBBER | GB | |
||
| 187 | 326467-00 | 2 | DETENT | GB | |
||
| 188 | 402140-00 | 1 | ANTI SPLINTER DEVICE | GB | |
||
| 189 | 402138-00 | 1 | TUBE | GB | |
||
| 191 | 930574-00 | 1 | HEX KEY 5 MM | GB | |
||
| 192 | 402191-00 | 1 | BUSH | GB | |
||
| 193 | 388577-00 | 1 | SUPPORT SA | GB | |
||
| 195 | 930770-00 | 1 | SCREW | GB | |
||
| 200 | 025922908 | 1 | KNOB | GB | |
||
| 201 | 868082-00 | 1 | SPRING | GB | |
||
| 204 | 402656-00 | 1 | SHAFT SA | GB | |
||
| 205 | 402656-00 | 1 | SHAFT SA | GB | |
||
| 206 | 402656-00 | 1 | SHAFT SA | GB | |
||
| 207 | 402656-00 | 1 | SHAFT SA | GB | |
||
| 208 | 949882-05 | 1 | HEX KEY 3 MM | GB | |
||
| 209 | 403192-00 | 1 | CLIP CABLE | GB | |
||
| 222 | 329932-00 | 1 | CLAMP | SE DC<9822 | GB | |
|
| 223 | 329933-00 | 1 | PLATE | SE DC<9822 | GB | |
|
| 224 | 930770-00 | 1 | SCREW | SE DC<9822 | GB | |
|
| 225 | 487044-49 | 1 | REPAIR KIT | SE DC>9821 | GB | |
|
| 226 | 329923-49 | 1 | REPAIR KIT | GB | |
||
| 230 | 330065-06 | 2 | SCREW | GB | |
