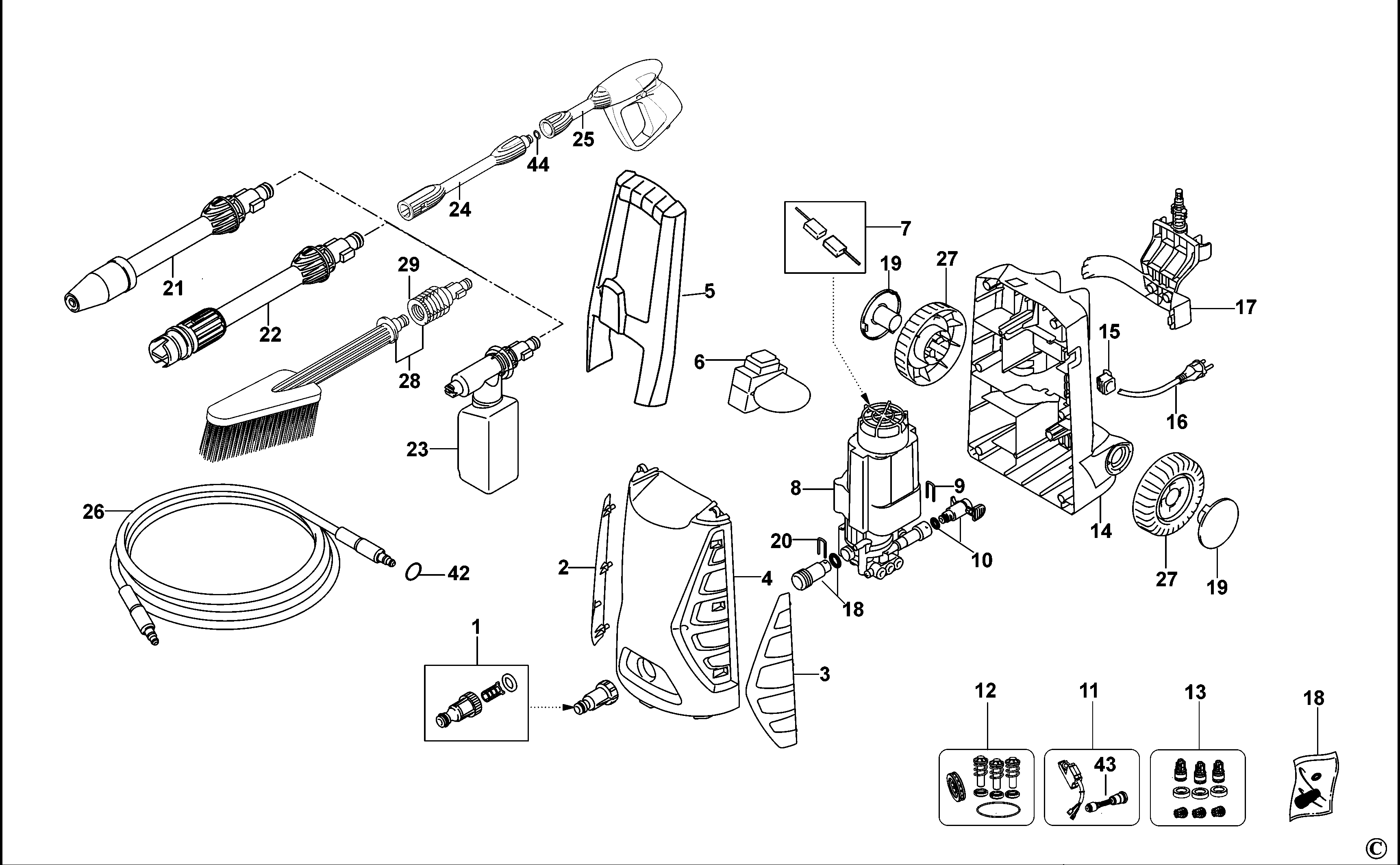

PW1570TD PRESSURE WASHER Type 1 | Drawings

Documents

Item No.	Product Number	Qty Per	Product Description	General Description	Markets
1	1004455-15	1	FILTER & INLET KIT		B1
2	1004512-01	1	DOOR		B1
3	1004512-02	1	DOOR		B1
4	1004512-03	1	HOUSING FRONT		B1
5	1004512-27	1	HANDLE		B1
6	1004512-05	1	SWITCH		B1
7	1004512-06	1	BRUSH KIT		B1
8	1004512-24	1	MOTOR & PUMP SA 240V		B1
9	1004512-08	1	FORK		B1
10	1004512-09	1	OUTLET		B1
11	1004512-10	1	SWITCH KIT 220V		B1
12	1004512-11	1	PISTONS & SEALS KIT		B1
13	1004512-12	1	VALVES & SEALS KIT		B1
14	1004512-13	1	BASE		B1
15	1004455-07	1	GLAND		B1
16	1004512-14	1	CABLE		B1
17	1004512-16	1	CARRIER		B1
18	1004512-17	1	SUCTION GROUP		B1
19	1004512-25	2	CAP		B1
20	1004512-19	1	FORK		B1
21	1004512-20	1	SPRAY SA		B1
22	1004455-22	1	SPRAY SA		B1
23	1004512-21	1	TANK		B1
24	1004455-23	1	EXTENSION		B1
25	1004455-24	1	ADJUSTER HANDLE		B1
26	1004512-26	1	HOSE SA		B1
26	1004512-69	1	HOSE SA, REINFORCED	5m	B1
27	1004512-67	2	WHEEL		B1
30	1004512-19	1	FORK		B1
31	1004512-78	1	CYLINDER HEAD		B1
32	1004512-10	1	SWITCH KIT 220V		B1
33	1004512-12	1	VALVES & SEALS KIT		B1
34	1004512-79	1	NUT		B1
35	1004512-11	1	PISTONS & SEALS KIT		B1
36	1004512-80	1	CYLINDER		B1
37	1004512-81	1	VALVE		B1
38	1004512-17	1	SUCTION GROUP		B1
39	1004512-82	1	MICRO SWITCH		B1
40	1004512-06	1	BRUSH KIT		B1
41	1004512-84	1	MOTOR		B1
42	5170000-32	2	O RING		B1
