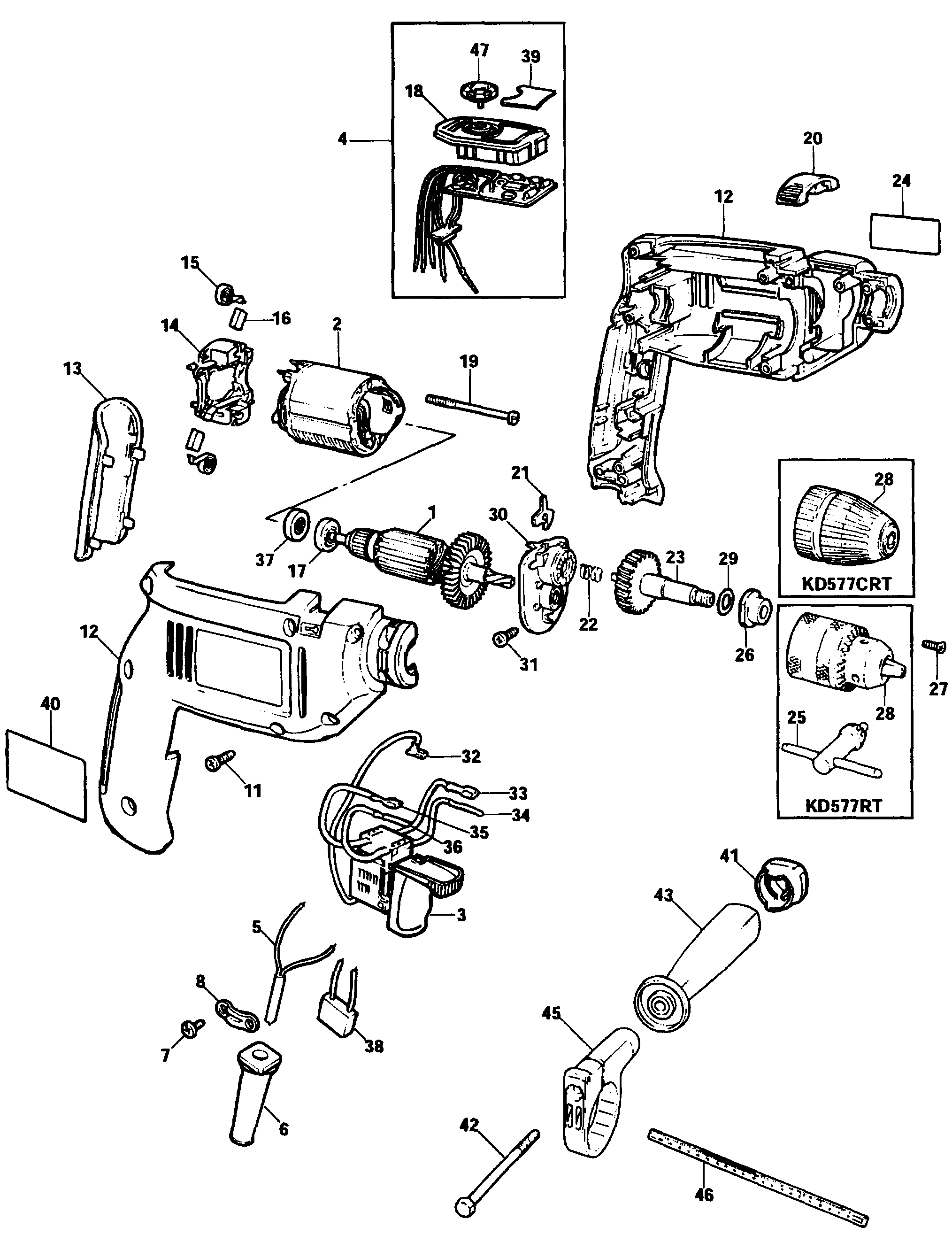

KD577CRT DRILL Type 3 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | 798863-00 | 1 | ARMATURE SA | GB |  |
||
| 2 | 798832-01 | 1 | FIELD SA | GB | |
||
| 3 | 372688-00 | 1 | SWITCH | GB | |
||
| 4 | 797621-01 | 1 | PCB SA | GB | |
||
| 5 | 330060-53 | 1 | CORDSET | GB | |
||
| 6 | 770235 | 1 | PROTECTOR | KD577CRT | GB |  |
|
| 6 | 770236 | 1 | PROTECTOR | KD577RT | GB | |
|
| 7 | 370748 | 2 | SCREW | GB | |
||
| 8 | 821070 | 1 | CORD CLAMP | GB | |
||
| 11 | 809961 | 9 | SCREW | GB | |||
| 12 | 372765 | 1 | CLAMSHELL | GB | |
||
| 13 | 807000 | 1 | GRIP | GB | |
||
| 14 | 806486-00 | 1 | BRUSH HOLDER PLATE | GB | |
||
| 15 | 808527-00 | 2 | BRUSH SPRING | GB | |
||
| 16 | 806681 | 2 | BRUSH | GB | |
||
| 17 | 812970 | 1 | HOLDER,RUBBER | GB | |
||
| 18 | 798850 | 1 | INSERT | GB | |
||
| 19 | 812751 | 2 | SCREW.TEMP | GB | |
||
| 20 | 798788 | 1 | SELECTOR | GB | |
||
| 21 | 798815 | 1 | PLATE THRUST | GB | |
||
| 22 | 821986 | 1 | SPRING | GB | |
||
| 23 | 808675-49 | 1 | SPINDLE & GEAR SA | GB | |
||
| 24 | 798804-08 | 1 | BRAND LABEL | KD577CRT | GB | |
|
| 24 | 371797-02 | 1 | BRAND LABEL | KD577RT | GB | |
|
| 25 | 330034-08 | 1 | CHUCK KEY | KD577RT | GB | |
|
| 26 | 798794 | 1 | BEARING SINTER | GB | |
||
| 27 | 805434 | 1 | SCREW.SPECIAL | GB | |
||
| 28 | 586589-00L | 1 | CHUCK KEYLESS | KD577CRT | GB | |
|
| 28 | 330033-23 | 1 | CHUCK 13MM | KD577RT | GB | |
|
| 29 | 798795 | 1 | WASHER THRUST | GB | |
||
| 30 | 372163 | 1 | GEARCASE SA | GB | |
||
| 31 | 809961 | 2 | SCREW | GB | |||
| 32 | 809085 | 1 | LEAD RED | GB | |
||
| 33 | 809086 | 1 | LEAD BROWN | GB | |
||
| 34 | 806964 | 1 | LEAD YELLOW | GB | |
||
| 35 | 806965 | 1 | LEAD BLUE | GB | |
||
| 37 | 798813 | 1 | TRANSMITTER | GB | |
||
| 38 | 807745 | 1 | CAPACITOR | GB | |
||
| 39 | 808285 | 1 | LABEL | GB | |
||
| 41 | 372815 | 1 | CAP | GB | |
||
| 42 | 813918 | 1 | SCREW | GB | |
||
