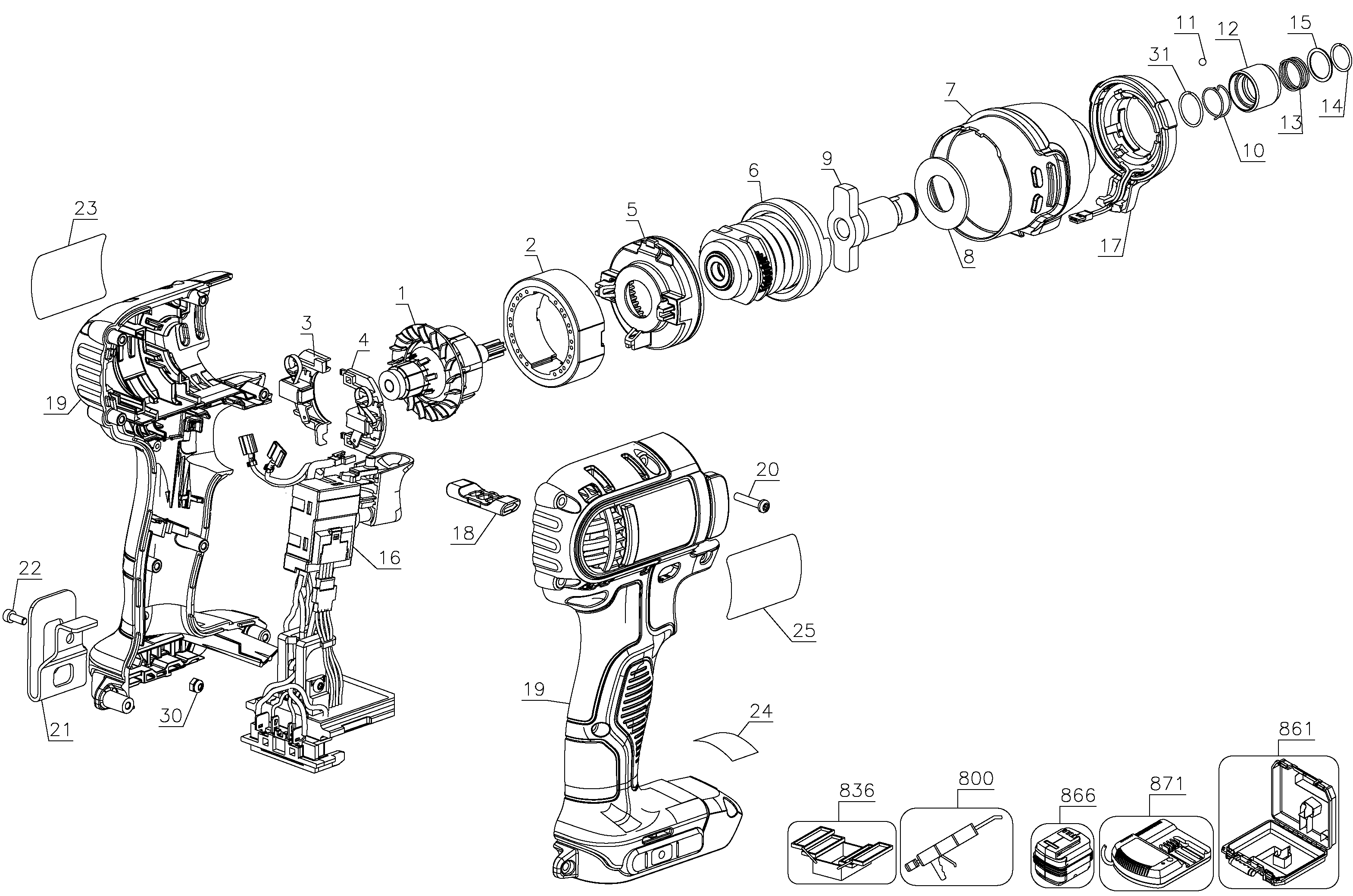

DCF885B IMPACT DRIVER Type 2 | Drawings
Documents
Parts List
Save PDF
View Full Page
| Item No. | Product Number | Qty Per | Product Description | General Description | Other Info | Markets | Product Status |
|---|---|---|---|---|---|---|---|
| 1 | N268382 | 1 | ARMATURE ASSEMBLY | B3 | |||
| 2 | N309481 | 1 | MAGNET RING | PKG'D N054555 | B3 | ||
| 3 | N093746 | 1 | BRUSH HOLDER SA | BLACK W/O PCB | B3 | ||
| 4 | N093746 | 1 | BRUSH HOLDER SA | BLACK W/O PCB | B3 | ||
| 5 | N268386 | 1 | RING GEAR MOUNT | INCL. RING GEAR | B3 | ||
| 6 | N268919 | 1 | MECHANISM ASSY | PKG'D N197132 | B3 | ||
| 7 | N268387 | 1 | NOSE CONE | PKG'D N056044 | B3 | ||
| 8 | 642883-00 | 1 | WASHER | B3 | |||
| 9 | N474539 | 1 | ANVIL ASSY. | Incl. 10-15, 31 | B3 | ||
| 10 | N078434 | 1 | SPRING | B3 | |||
| 11 | N089668 | 1 | BALL STEEL | B3 | |||
| 12 | N419129 | 1 | SLEEVE | B3 | |||
| 13 | N019351 | 1 | SPRING | B3 | |||
| 14 | N053863 | 1 | RING | Use #836 to install | B3 | ||
| 15 | N016823 | 1 | WASHER | B3 | |||
| 16 | N359999 | 1 | SWITCH ASSEMBLY | w/Weld terminals | B3 | ||
| 16 | N407455 | 1 | HANDLE/SWITCH KIT | w/ Weld Terminals | Units Prior to 2013-44 | B3 | |
| 17 | N073422 | 1 | LED LIGHT | B3 | |||
| 18 | N073265 | 1 | LEVER | B3 | |||
| 19 | N633132 | 1 | HOUSING | INCLUDES NUT | B3 | ||
| 20 | 682211-00 | 8 | SCREW | B3 | |||
| 21 | N268241 | 1 | HOOK SA | BELT HOOK, W/SCREW AND INSTRUCTIONS | B3 | ||
| 22 | 370167-00 | 1 | SCREW | B3 | |||
| 23 | N089231 | 1 | BRAND LABEL | B3 | |||
| 24 | N078823 | 1 | WARNING LABEL (SPA) | B3 | |||
| 25 | N207805 | 1 | RATING LABEL | DCF885 Type 2 Mexico | B3 | ||
| 30 | 330021-11 | 1 | STOP NUT | B3 | |||
| 31 | N424032 | 1 | RING | USE ONLY w/REPLACEMENT ANVIL | B3 | ||
| 800 | 284778-00 | 1 | GREASE | MOLYKOTE G68 | B3 | ||
| 800 | 286436-00 | 1 | GREASE | NYE RHEOLUBE 380, 500 GRAM JAR | B3 | ||
| 836 | 233945-00 | 1 | SERVICE TOOL | B3 | |||
| 861 | N380212 | 1 | KITBOX | Not Included with Unit | B3 | ||
| 862 | N037466 | 1 | BAG | B3 | |||
| 866 | DCB201 | 1 | BATTERY PACK | 20vMax 1.5Ah Li-Ion | Not Included with Unit | B3 | |
| 866 | DCB200 | 1 | BATTERY PACK | 20V MAX 3.0Ah SOC | Not Included with Unit | B3 | |
| 871 | DCB115 | 1 | CHARGER | 12-20V 4 Amp | Not Included with Unit | B3 |
